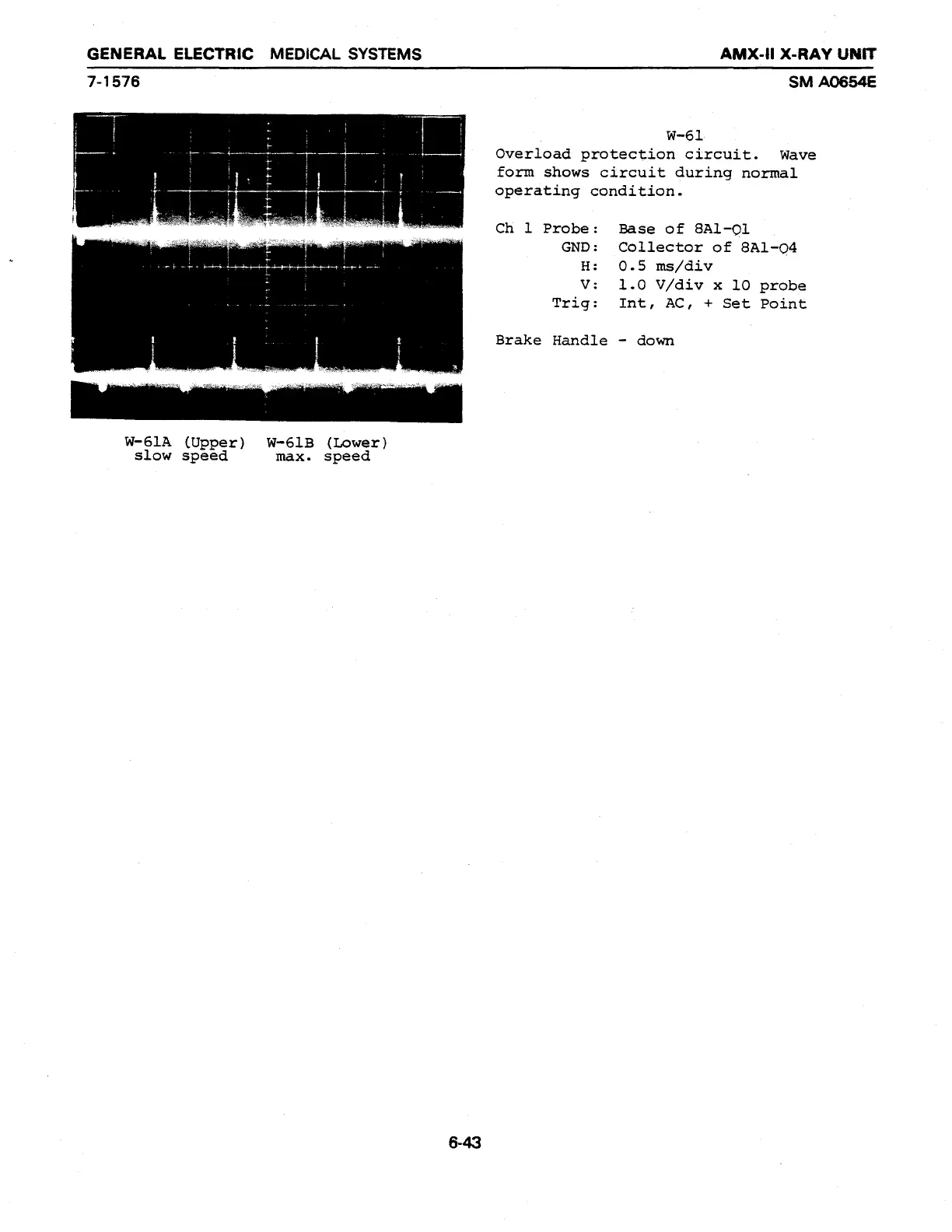

Overload protection circuit. Wave
form shows circuit during normal
operating condition.
Ch l Probe: Base оЕЁ 8А1-01
GND: Collector of 8A1-04
H: 0.5 ms/div
V: 1.0 V/div x 10 probe
Trig: Int, AC, + Set Point
Brake Handle - down
W-61A (Upper) W-61B (Lower)
slow speed max. speed
