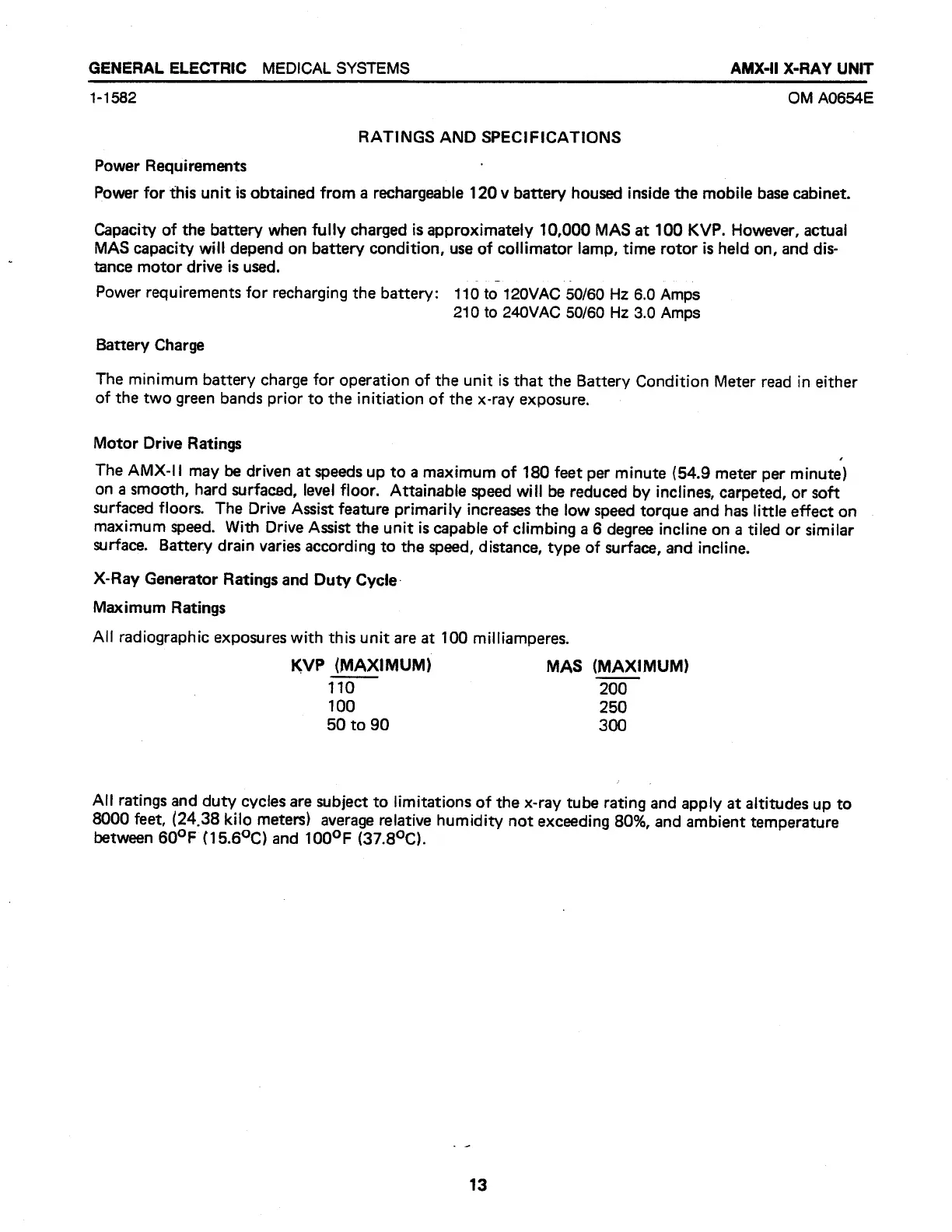

GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-II X-RAY UNIT
1-1582 OM A0654E
RATINGS AND SPECIFICATIONS
Power Requirements
Power for this unit is obtained from a rechargeable 120 v battery housed inside the mobile base cabinet.
Capacity of the battery when fully charged is approximately 10,000 MAS at 100 KVP. However, actual
MAS capacity will depend on battery condition, use of collimator lamp, time rotor is held on, and dis-
tance motor drive is used.
Power requirements for recharging the battery: 110 to 120VAC 50/60 Hz 6.0 Amps
210 to 240VAC 50/60 Hz 3.0 Amps
Battery Charge
The minimum battery charge for operation of the unit is that the Battery Condition Meter read in either
of the two green bands prior to the initiation of the x-ray exposure.
Motor Drive Ratings
The
AMX-11
may
be
driven
at
speeds
up
to
a
maximum
of
180
feet
per
minute
(54.9
meter
per
minute)
on
a
smooth,
hard
surfaced,
level
floor.
Attainable
speed
will
be
reduced
by
inclines,
carpeted,
or
soft
surfaced
floors.
The
Drive
Assist
feature
primarily
increases
the
low
speed
torque
and
has
little
effect
on
maximum
speed.
With
Drive
Assist
the
unit
is
capable
of
climbing
a
6
degree
incline
on
a
tiled
or
similar
surface.
Battery
drain
varies
according
to
the
speed,
distance,
type
of
surface,
and
incline.
X-Ray Generator Ratings and Duty Cycle.
Maximum Ratings
All radiographic exposures with this unit are at 100 milliamperes.
KVP (MAXIMUM) MAS (MAXIMUM)
110 200
100 250
50 to 90 300
All
ratings
and
duty
cycles
are
subject
to
limitations
of
the
x-ray
tube
rating
and
apply
at
altitudes
up
to
8000
feet,
(24.38
kilo
meters)
average
relative
humidity
not
exceeding
80%,
and
ambient
temperature
between
60°F
(15.69C)
and
100°F
(37.8°C).
