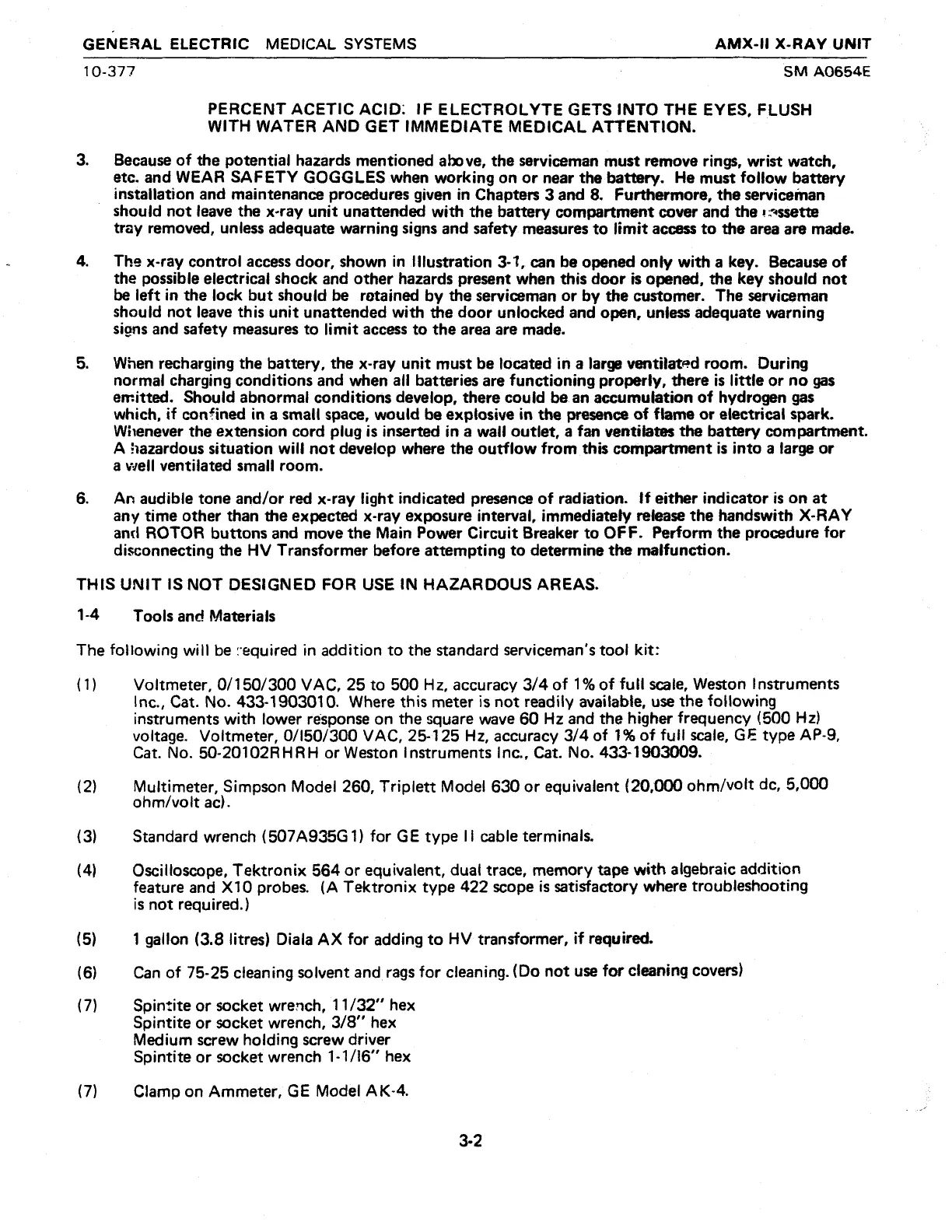

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-il X-RAY UNIT
10-377 SM A0654E
PERCENT ACETIC ACID. IF ELECTROLYTE GETS INTO THE EYES, FLUSH
WITH WATER AND GET IMMEDIATE MEDICAL ATTENTION.
3. Because of the potential hazards mentioned above, the serviceman must remove rings, wrist watch,
etc. and WEAR SAFETY GOGGLES when working on or near the battery. He must follow battery
| installation and maintenance procedures given in Chapters 3 and 8. Furthermore, the serviceman
should not leave the x-ray unit unattended with the battery compartment cover and the ::assette
tray removed, unless adequate warning signs and safety measures to limit access to the area are made.
4. The x-ray control access door, shown in Illustration 3-1, can be opened only with a key. Because of
the possible electrical shock and other hazards present when this door is opened, the key should not
be left in the lock but should be retained by the serviceman or by the customer. The serviceman
should not leave this unit unattended with the door unlocked and open, unless adequate warning
sions and safety measures to limit access to the area are made.
5. When recharging the battery, the x-ray unit must be located in a large ventilated room. During
normal charging conditions and when all batteries are functioning properly, there is little or no gas
emitted. Should abnormal conditions develop, there could be an accumulation of hydrogen gas
which, if confined in a small space, would be explosive in the presence of flame or electrical spark.
Whenever the extension cord plug is inserted in a wall outlet, a fan ventilates the battery compartment.
A hazardous situation will not develop where the outflow from this compartment is into a large or
a well ventilated small room.
6. An audible tone and/or red x-ray light indicated presence of radiation. If either indicator is on at
any time other than the expected x-ray exposure interval, immediately release the handswith X-RAY
and ROTOR buttons and move the Main Power Circuit Breaker to OFF. Perform the procedure for
disconnecting the HV Transformer before attempting to determine the malfunction.
THIS UNIT IS NOT DESIGNED FOR USE IN HAZARDOUS AREAS.
1-4 Tools and Materials
The following will be required in addition to the standard serviceman's tool kit:
(1) Voltmeter, 0/150/300 VAC, 25 to 500 Hz, accuracy 3/4 of 1% of full scale, Weston Instruments
Inc., Cat. No. 433-1903010. Where this meter is not readily available, use the following
instruments with lower response on the square wave 60 Hz and the higher frequency (500 Hz)
voltage. Voltmeter, 0/150/300 VAC, 25-125 Hz, accuracy 3/4 of 1% of full scale, GE type AP-9,
Cat. No. 50-20102RHRH or Weston Instruments Inc., Cat. No. 433-1903009.
(2) Multimeter, Simpson Model 260, Triplett Model 630 or equivalent (20,000 ohm/volt dc, 5,000
ohm/volt ac).
(3) Standard wrench (507A935G 1) for GE type Ii cable terminals.
(4) Oscilloscope, Tektronix 564 or equivalent, dual trace, memory tape with algebraic addition
feature and X10 probes. (A Tektronix type 422 scope is satisfactory where troubleshooting
is not required.)
(5) 1 gallon (3.8 litres) Diala AX for adding to HV transformer, if required.
(6) Can of 75-25 cleaning solvent and rags for cleaning. (Do not use for cleaning covers)
(7) Spintite or socket wrench, 11/32” hex
Spintite or socket wrench, 3/8” hex
Medium screw holding screw driver
Spintite or socket wrench 1-1/16” hex
(7) Clamp on Ammeter, GE Model AK-4.
