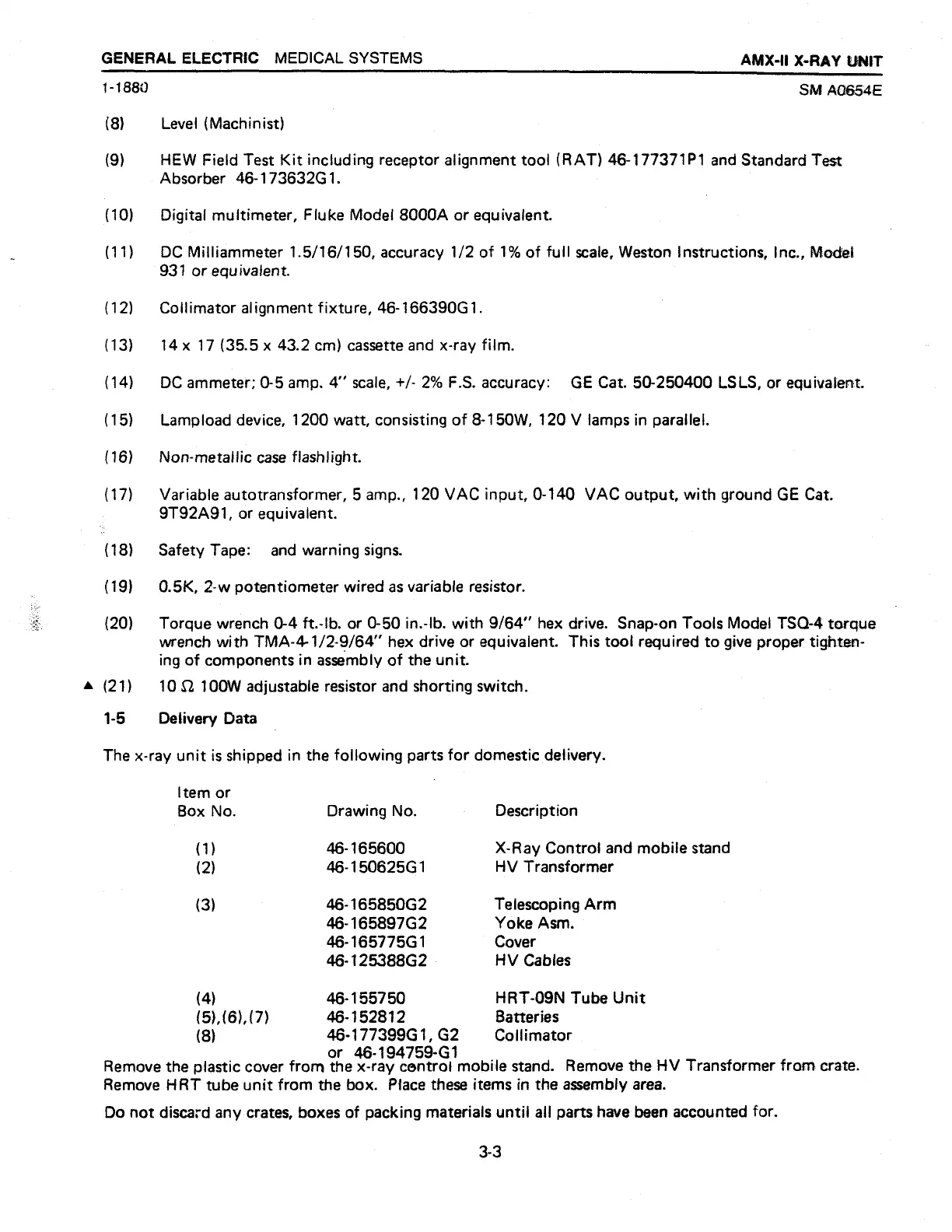

GE AMX-II

GENERAL
ELECTRIC
MEDICAL
SYSTEMS
AMX-Il
X-RAY
UNIT
1-1880
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
a (21)
1-5
SM A0654E
Level (Machinist)
HEW Field Test Kit including receptor alignment tool (RAT) 46-177371P1 and Standard Test
Absorber 46-173632G1.
Digital multimeter, Fluke Model 8000A or eguivalent.
DC Milliammeter 1.5/16/150, accuracy 1/2 of 1% of full scale, Weston Instructions, Inc., Model
931 or equivalent.
Collimator alignment fixture, 46-166390G1.
14x 17 (35.5 x 43.2 cm) cassette and x-ray film.
DC ammeter; 0-5 amp. 4” scale, +/- 2% F.S. accuracy: GE Cat. 50-250400 LSLS, or equivalent.
Lampioad device, 1200 watt, consisting of 8-150W, 120 V lamps in parallel.
Non-metallic case flashlight.
Variable autotransformer, 5 amp., 120 VAC input, 0-140 VAC output, with ground GE Cat.
9T92A91, or equivalent.
Safety Tape: and warning signs.
0.5K, 2-w potentiometer wired as variabie resistor.
Torque wrench 0-4 ft.-!b. or 0-50 in.-Ilb. with 9/64” hex drive. Snap-on Tools Model TSQ-4 torque
wrench with TMA-4 1/2-9/64" hex drive or equivalent. This tool required to give proper tighten-
ing of components in assembly of the unit.
10 2 100W adjustable resistor and shorting switch.
Delivery Data
The x-ray unit is shipped in the following parts for domestic delivery.
Item or
Box No. Drawing No. Description
(1) 46-165600 X-Ray Control and mobile stand
(2) 46-150625G1 HV Transformer
(3) 46-165850G2 Telescoping Arm
46-165897G2 Yoke Asm.
46-165775G1 Cover
46-125388G2 HV Cables
(4) 46-155750 HRT-09N Tube Unit
(5),(6),(7) 46-152812 Batteries
(8) 46-177399G1, G2 Collimator
or 46-194759-G1
Remove the plastic cover from the x-ray control mobile stand. Remove the HV Transformer fram crate.
Remove HRT tube unit from the box. Place these items in the assembly area.
Do not discard any crates, boxes of packing materials until all parts have been accounted for.
3-3
