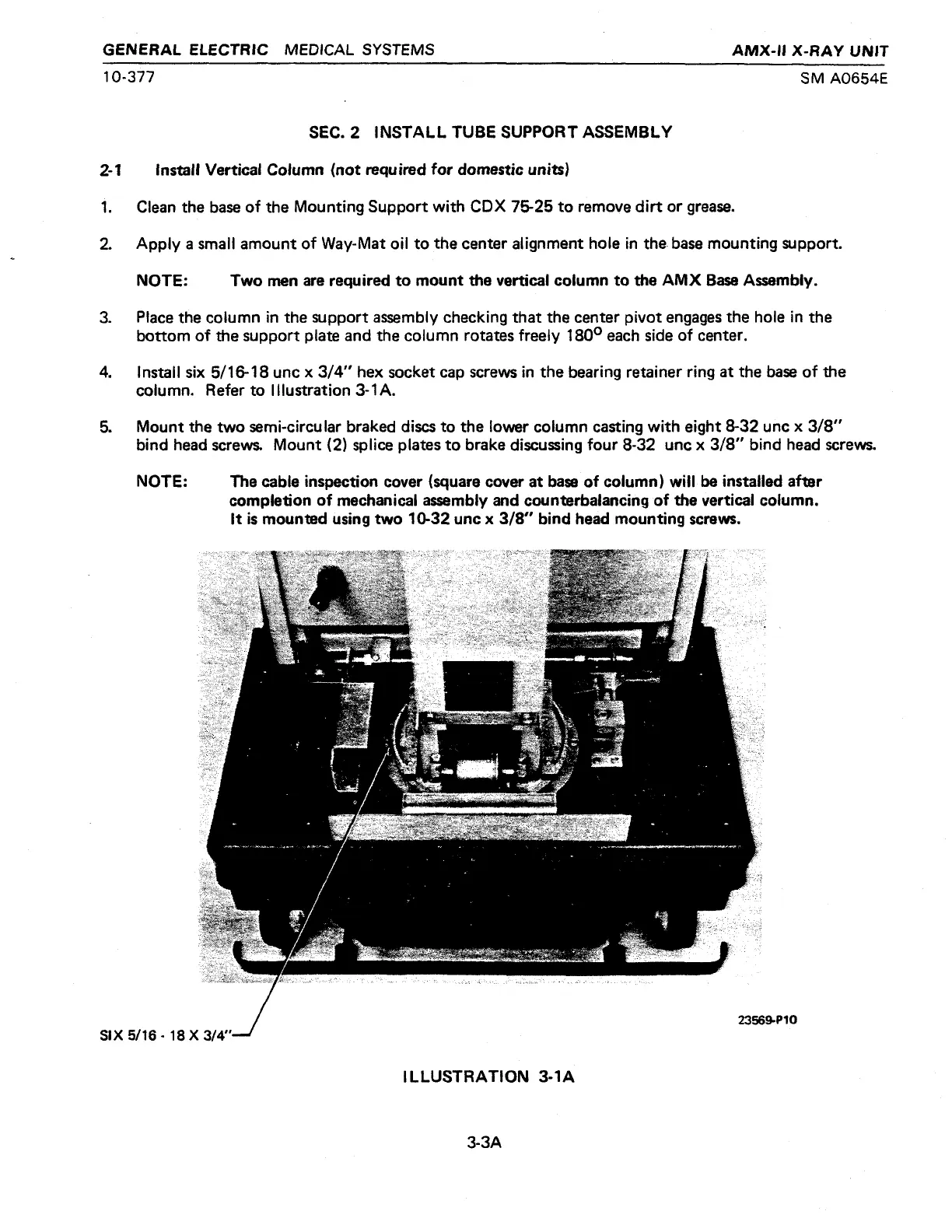

GENERAL
ELECTRIC
MEDICAL
SYSTEMS
AMX-ll
X-RAY
UNIT
10-377
SM
A0654E
21
SEC.
2
INSTALL
TUBE
SUPPORT
ASSEMBLY
install
Vertical
Column
(not
reguired
for
domestic
units)
Clean
the
base
of
the
Mounting
Support
with
CDX
75-25
to
remove
dirt
or
grease.
Apply
a
small
amount
of
Way-Mat
oil
to
the
center
alignment
hole
in
the
base
mounting
support.
NOTE:
Two
men
are
reguired
to
mount
the
vertical
column
to
the
AMX
Base
Assembly.
Place
the
column
in
the
support
assembly
checking
that
the
center
pivot
engages
the
hole
in
the
bottom
of
the
support
plate
and
the
column
rotates
freely
1809
each
side
of
center.
Install
six
5/16-18
unc
x
3/4”
hex
socket
cap
screws
in
the
bearing
retainer
ring
at
the
base
of
the
column.
Refer
to
Illustration
3-1A.
Mount
the
two
semi-circular
braked
discs
to
the
lower
column
casting
with
eight
8-32 unc
x
3/8”
bind
head
screws.
Mount
(2)
splice
plates
to
brake
discussing
four
8-32
unc
x
3/8”
bind
head
screws.
NOTE:
The
cable
inspection
cover
(square
cover
at
base
of
column)
will
be
installed
after
completion
of
mechanical
assembly
and
counterbalancing
of
the
vertical
column.
It
is
mounted
using
two
10-32
unc
x
3/8”
bind
head
mounting
screws.
23569-P10
SIX
5/16
-
18
X
3/4”
ILLUSTRATION
3-1A
3-3A
