GENERAL
ELECTRIC
MEDICAL
SYSTEMS
AMX-ll
X-RAY
UNIT
1-981
A
Indicates
Change
SM
A0654E
OKE
|
TRUNNION
ВР
Л
ma

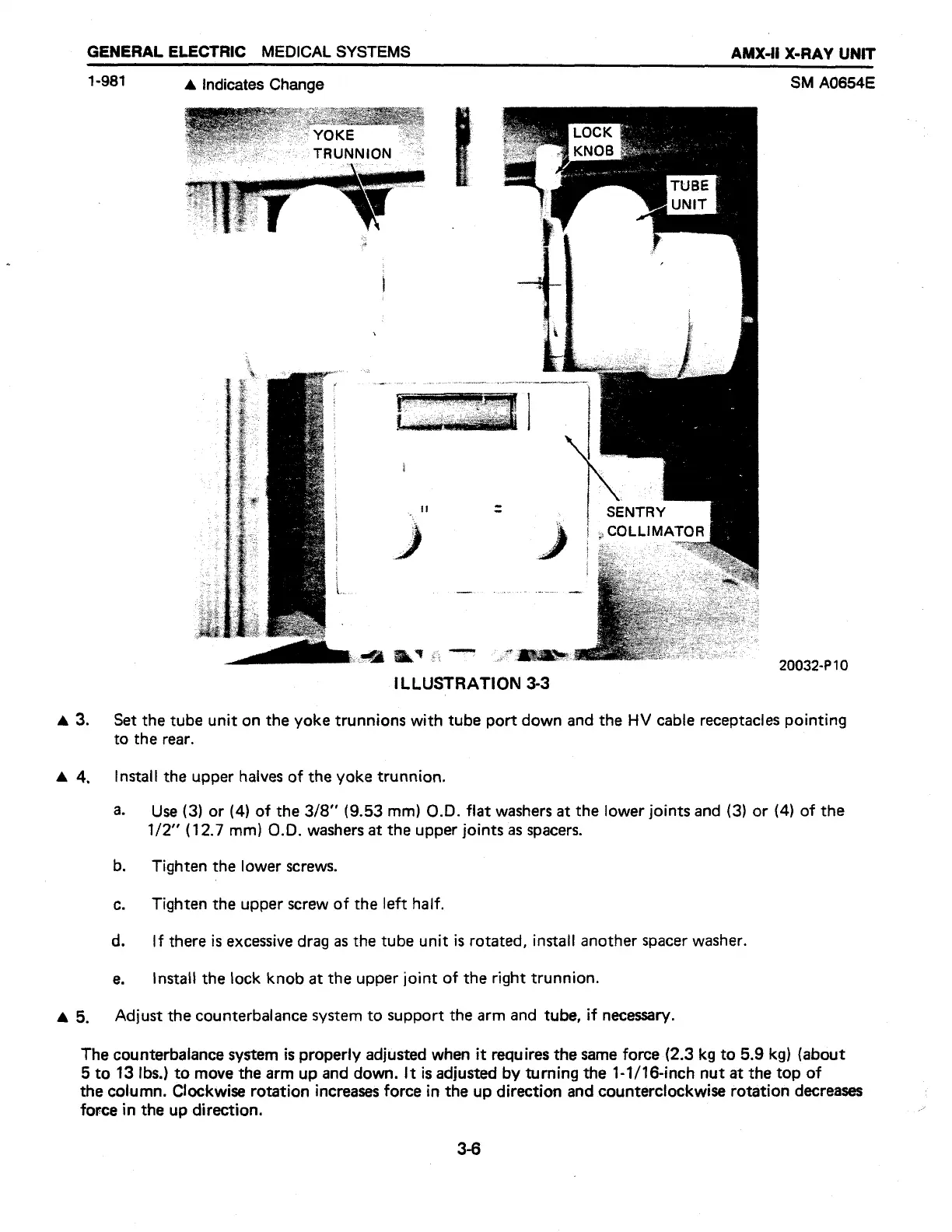

ILLUSTRATION
3-3
20032-P
10
A
3.
Set
the
tube
unit
on
the
yoke
trunnions
with
tube
port
down
and
the
HV
cable
receptacles
pointing
to
the
rear.
A
4,
install
the
upper
halves
of
the
yoke
trunnion.
»
Use
(3)
or
(4)
of
the
3/8”
(9.53
mm)
O.D.
flat
washers
at
the
lower
joints
and
(3)
or
(4)
of
the
1/2”
(12.7
mm)
0.0.
washers
at
the
upper
joints
as
spacers.
b.
Tighten
the
lower
screws.
c.
Tighten
the
upper
screw
of
the
left
half.
d.
o
If
there
is
excessive
drag
as
the
tube
unit
is
rotated,
install
another
spacer
washer.
e.
Install
the
lock
knob
at
the
upper
joint
of
the
right
trunnion.
A
5.
Adjust
the
counterbalance
system
to
support
the
arm
and
tube,
if
necessary.
The
counterbalance
system
is
properly
adjusted
when
it
requires
the
same
force
(2.3
kg
to
5.9
kg)
(about
5
to
13
Ibs.)
to
move
the
arm
up
and
down.
It
is
adjusted
by
turning
the
1-1/16-inch
nut
at
the
top
of
the
column.
Clockwise
rotation
increases
force
in
the
up
direction
and
counterclockwise
rotation
decreases
force
in
the
up
direction.
3-6
