SEC. 3 CABLES
3-1 Install High Voltage Cables
1. Remove bag containing silicone grease, grounding rings and rubber gaskets from each HV cable.
2. Take the cardboard protector boxes off one end of the cables.
3. Uncoil the HV cables.
4. Move the vertical carriage until the x-ray tube unit port is about 4 feet (1.2 m) from the floor.
5. Locate the four HV cable clamps. See Illustration 3-4.
|
Sd
i
18700-P10

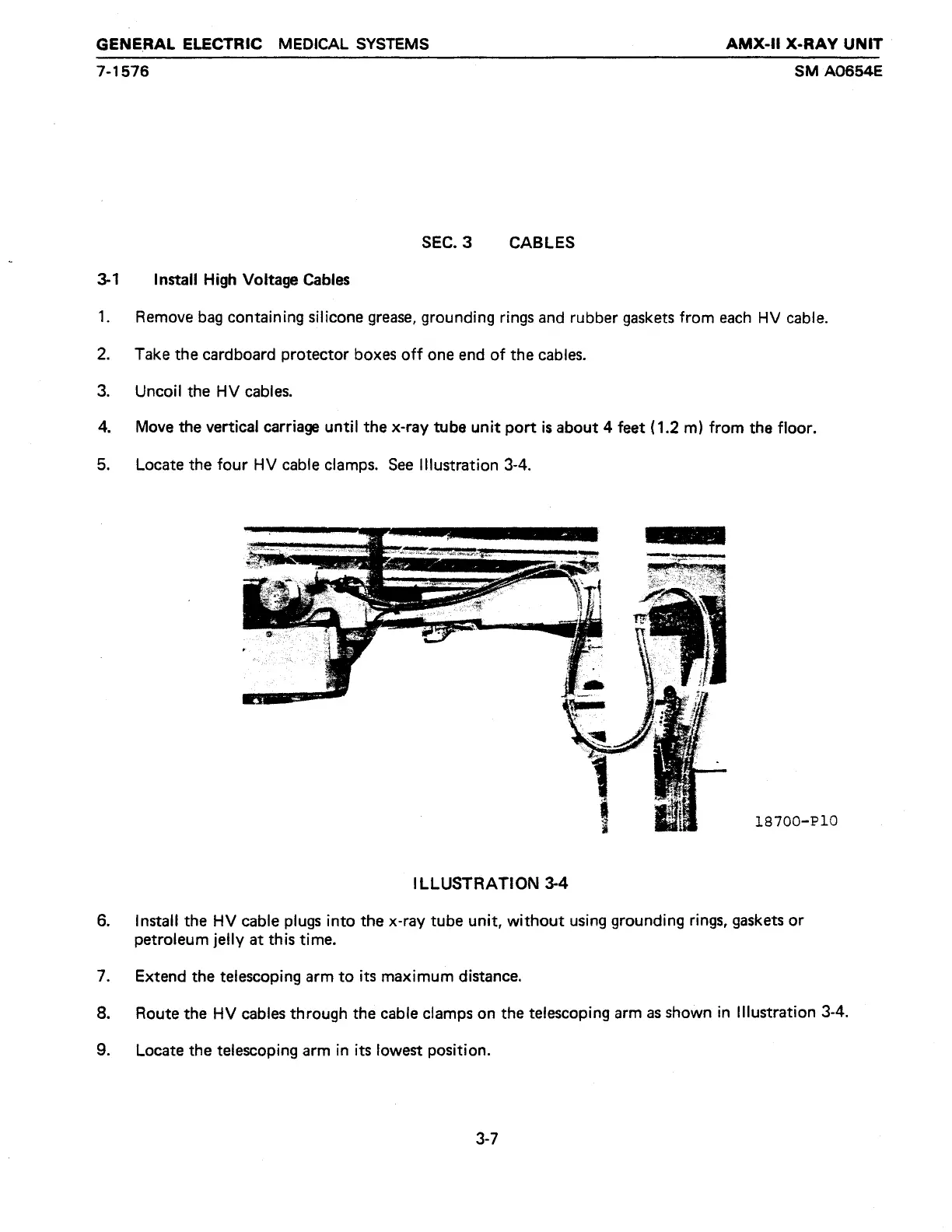

ILLUSTRATION 3-4
6. Install the HV cable plugs into the x-ray tube unit, without using grounding rings, gaskets or
petroleum jelly at this time.
7. Extend the telescoping arm to its maximum distance.
8. Route the HV cables through the cable clamps on the telescoping arm as shown in Illustration 3-4.
9. Locate the telescoping arm in its lowest position.
