GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-lt X-RAY UNIT
7-1576 SM A0654E

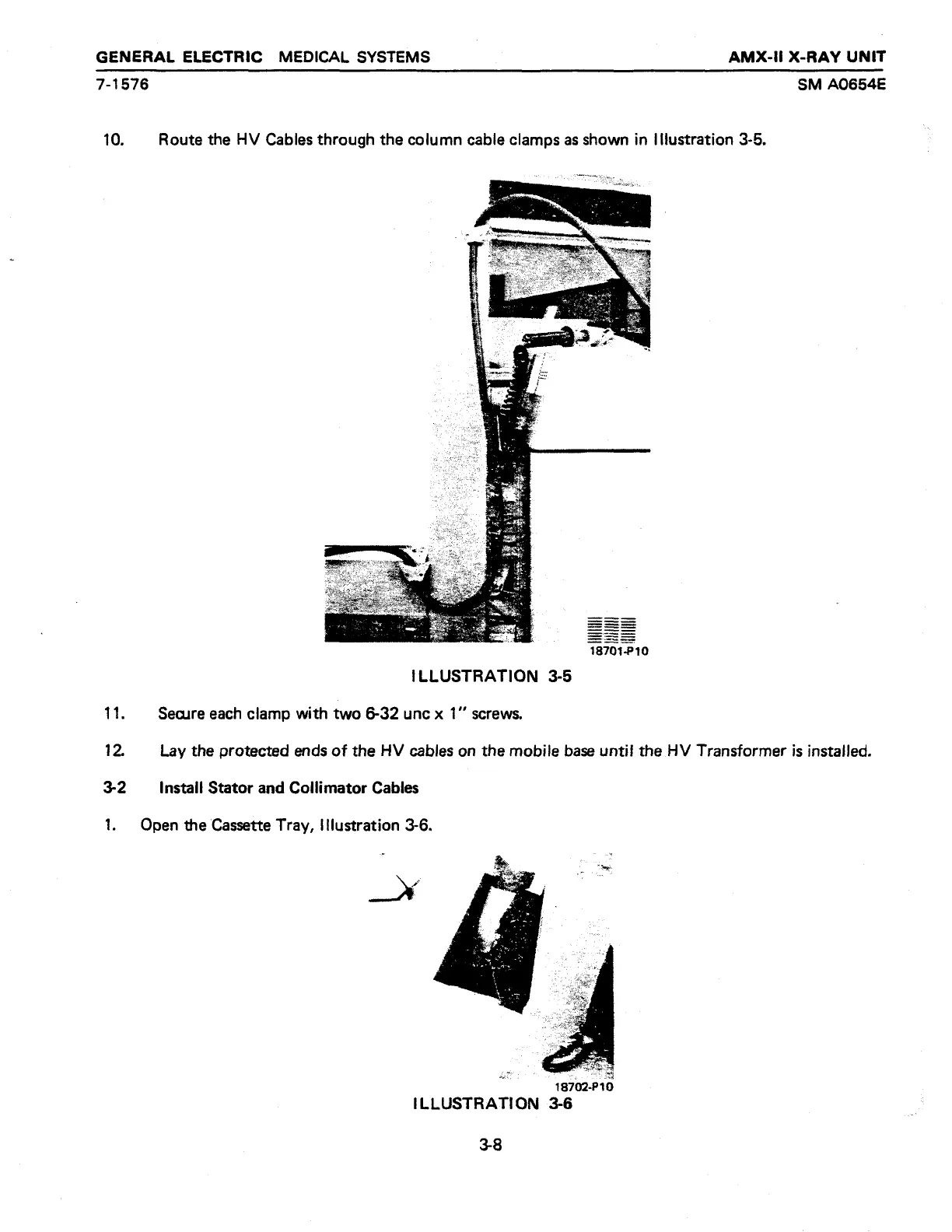

10. Route the HV Cables through the column cable clamps as shown in Illustration 3-5.
18701P10
ILLUSTRATION 3-5
11. Secure each clamp with two 6-32 unc x 1” screws.
12. Lay the protected ends of the HV cables on the mobile base until the HV Transformer is installed.
32 Install Stator and Collimator Cables
1. Open the Cassette Tray, illustration 3-6.
18702-P10
ILLUSTRATION 3-6
3-8
