GENERAL ELECTRIC MEDICAL SYSTEMS AMX-II X-RAY UNIT
7-1576 SM A0654E
Remove the rubber liner covering the bottom of the drawer.
Loosen the four screws (two in each corner) in the bottom of the tray.
Slide the screws toward the center of the tray and remove it.
Uncoil the stator cable attached to the tube unit.
ο
M
A
W
W
Locate the Collimator cable.
7. Route both the stator cabie and the collimator cable along the cathode HV cable. Use rubber straps
to fasten the stator and collimator cable to the HV cable and hold it in the properly draped position.
8 Leave enough excess collimator cable to make connection to the back of the collimator.
Remove the two panels on the cabinet located behind the vertical column.
8TS1
HV CABLE
|
—
COLLIMATOR
CABLE
—— STATOR CABLE
が
v“
18703-P10

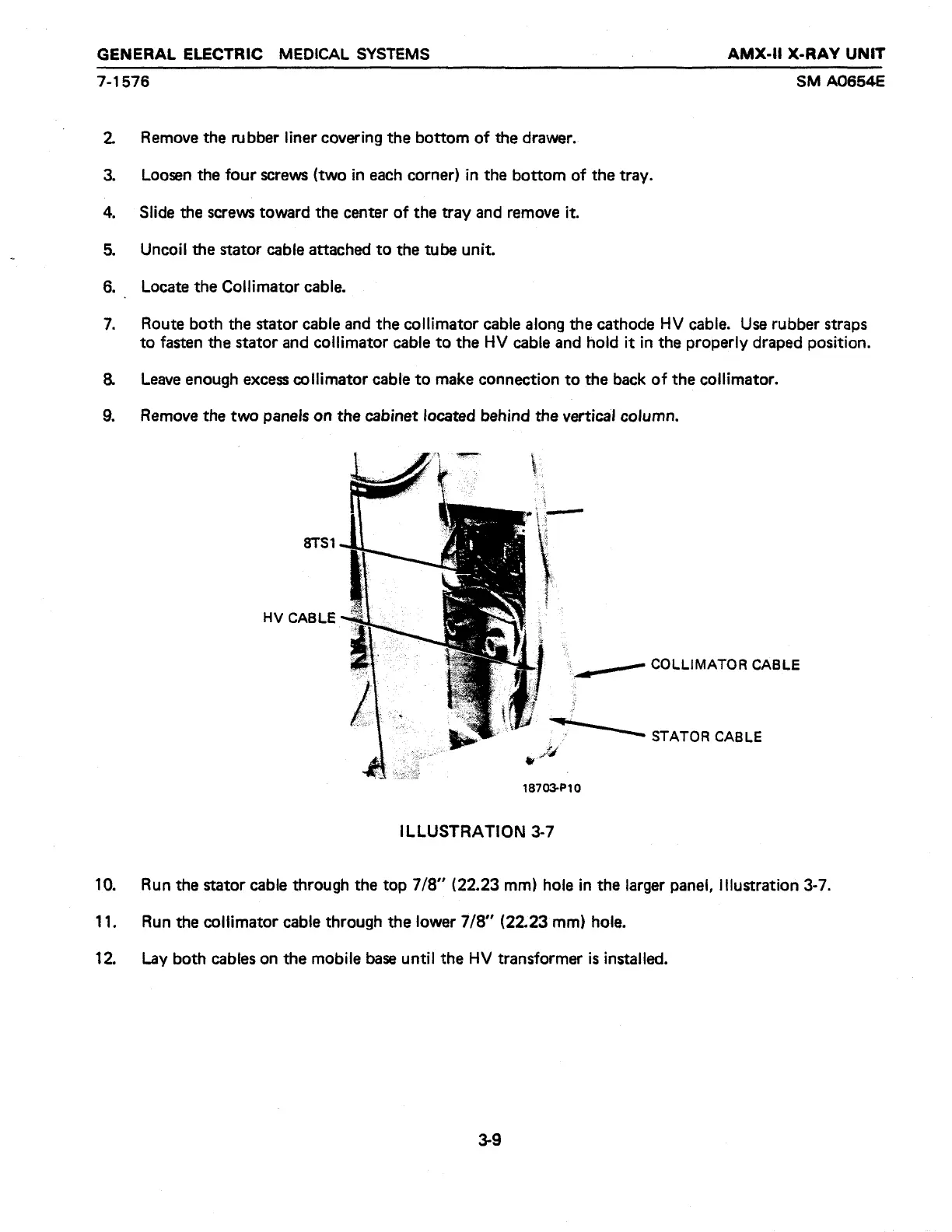

ILLUSTRATION 3-7
10. Run the stator cable through the top 7/8” (22.23 mm) hole in the larger panel, illustration 3-7.
11. Run the collimator cable through the lower 7/8” (22.23 mm) hole.
12. Lay both cables on the mobile base until the HV transformer is installed.
3-9
