GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-H X-RAY UNIT
7-1576 SM A0654E

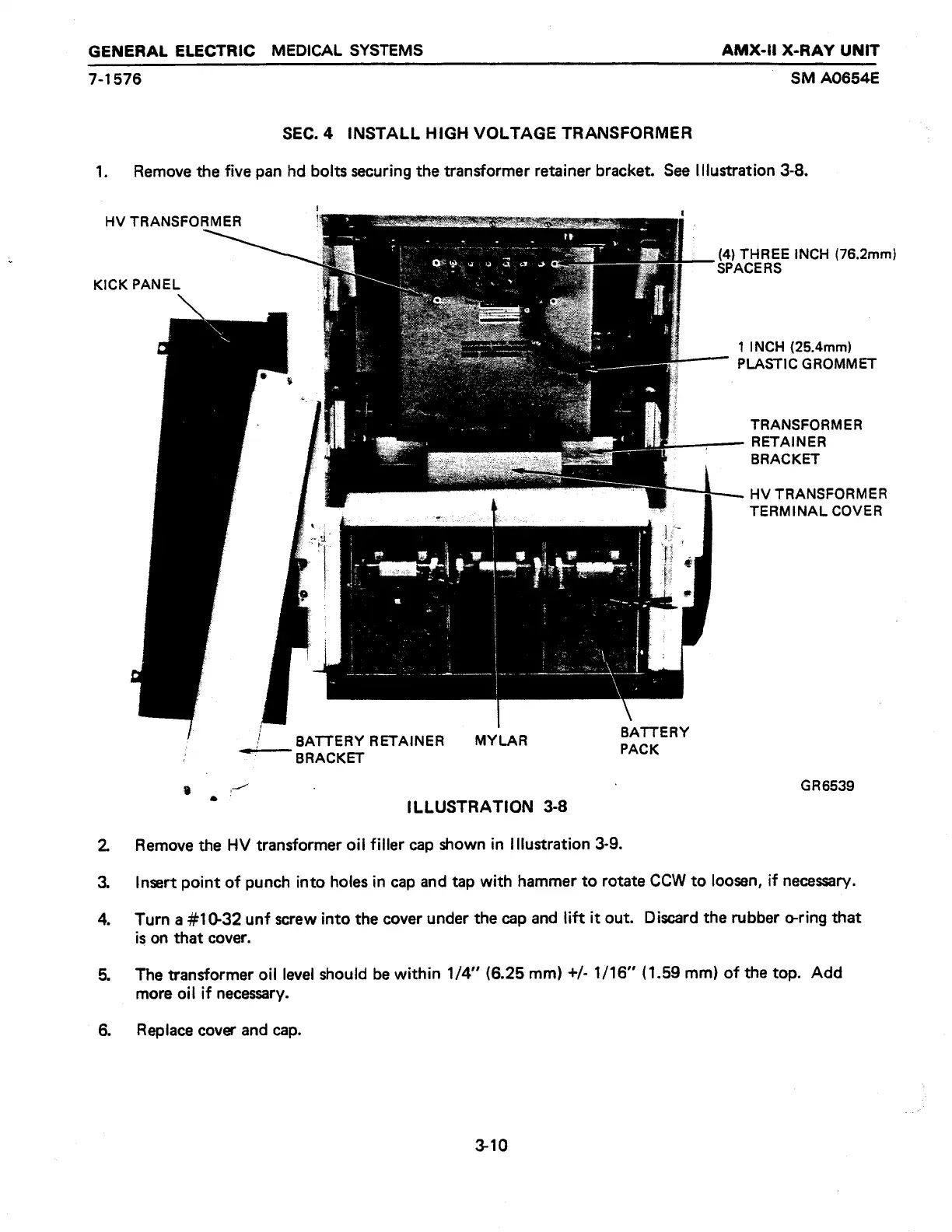

SEC.4 INSTALL HIGH VOLTAGE TRANSFORMER
1. Remove the five pan hd bolts securing the transformer retainer bracket. See Illustration 3-8.
HV TRANSFORMER
(4) THREE INCH (76.2mm)
SPACERS
KICK PANEL
1 INCH (25.4mm)
PLASTIC GROMMET
TRANSFORMER
RETAINER
BRACKET
HV TRANSFORMER
TERMINAL COVER
i
BATTERY
RETAINER
MYLAR
Pace
*
ВВАСКЕТ
9 _ 一 . : GR6539
ILLUSTRATION 3-8
2. Remove the HV transformer oil filler cap shown in Illustration 3-9.
3. Insert point of punch into holes in cap and tap with hammer to rotate CCW to loosen, if necessary.
4. Turn a#10-32 unf screw into the cover under the cap and lift it out. Discard the rubber o-ring that
is on that cover.
5. The transformer oil level should be within 1/4” (6.25 mm) +/- 1/16” (1.59 mm) of the top. Add
more oil if necessary.
6. Replace cover and cap.
310
