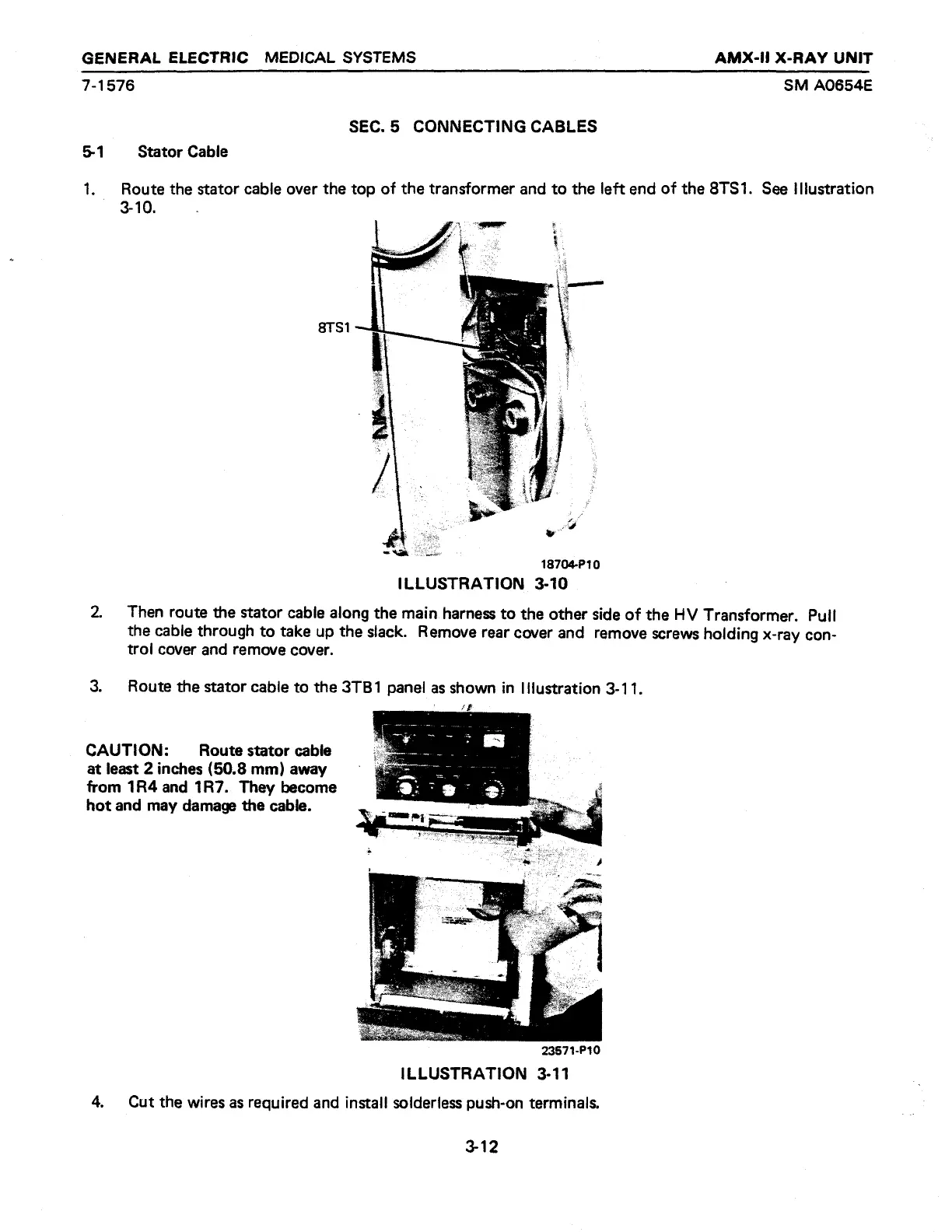

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-il X-RAY UNIT
7-1576 SM A0654E
SEC.5 CONNECTING CABLES
5-1 Stator Cable
1. Route the stator cable over the top of the transformer and to the left end of the 8TS1. See Illustration
— 3-10.
ν
a ος
1870410
ILLUSTRATION 3-10
2.
Then
route
the
stator
cable
along
the
main
harness
to
the
other
side
of
the
HV
Transformer.
Pull
the
cable
through
to
take
up
the
slack.
Remove
rear
cover
and
remove
screws
holding
x-ray
con-
trol
cover
and
remove
cover.
3. Route the stator cable to the 3TB1 panel as shown in Illustration 3-11.
a
CAUTION: Route stator cable
at least 2 inches (50.8 mm) away
from 1R4 and 1R7. They become
hot and may damage the cable.
23571-P10
ILLUSTRATION 3-11
4. Cut the wires as required and instal! soiderless push-on terminals.
312
