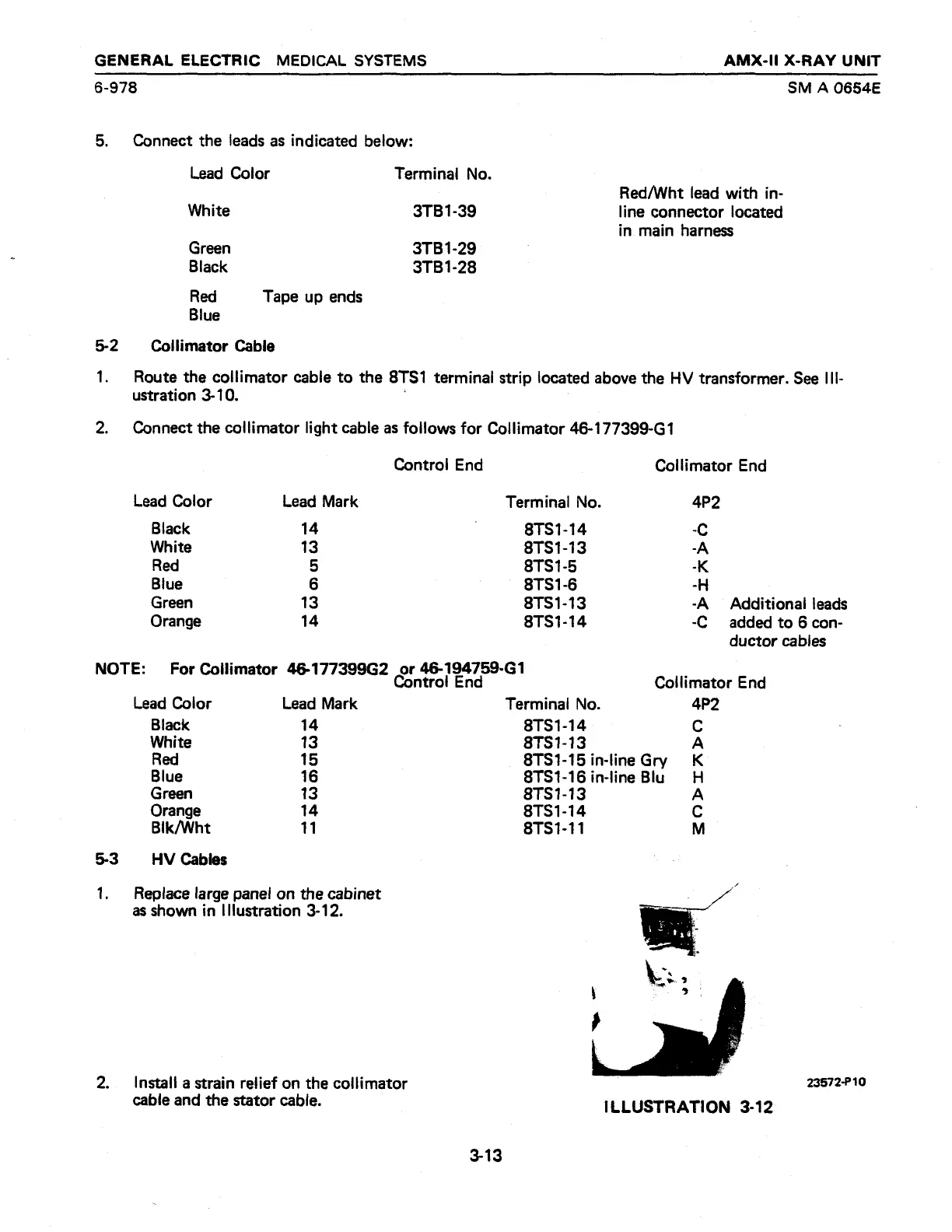

GENERAL ELECTRIC MEDICAL SYSTEMS
AMX-I! X-RAY UNIT
6-978
5.
5-2
SM A 0654E
Connect the leads as indicated below:
Lead Color Terminal No.
Red/Wht lead with in-
White 3TB1-39 line connector located
in. main harness
Green 3TB1-29
Black 3TB1-28
Red Tape up ends
Blue
Collimator Cable
Route the collimator cable to the 8TS1 terminal strip located above the HV transformer. See III-
ustration 3-10. °
2. Connect the collimator light cable as follows for Collimator 46-177399-G1
Control End Collimator End
Lead Color Lead Mark Terminal No. 4P2
Black 14 8TS1-14 -C
White 13 8TS1-13 -A
Red 5 8TS1-5 K
Blue 6 8TS1-6 -H
Green 13 8751-13 -A Additional leads
Orange 14 8TS1-14 -C added to 6 con-
ductor cables
NOTE: F limat 177 46-194759-G1
o or Collimator 46-177399G2 Control End Collimator End
Lead Color Lead Mark Terminal No. 4P2
Black 14 8TS1-14 C
White 13 8TS1-13 A
Red 15 8TS1-15 in-line Gry K
Blue 16 8TS1-16 in-line Blu H
Green 13 8TS1-13 A
Orange 14 8TS1-14 6
Bik/Wht 11 8TS1-11 M
5-3 HV Cables
1. Replace large panel on the cabinet ^ -
as shown in Illustration 3-12.
2. Installa strain relief on the collimator 23572-P10
cable
and
the
stator
cable.
ILLUSTRATION
3-12
3-13
