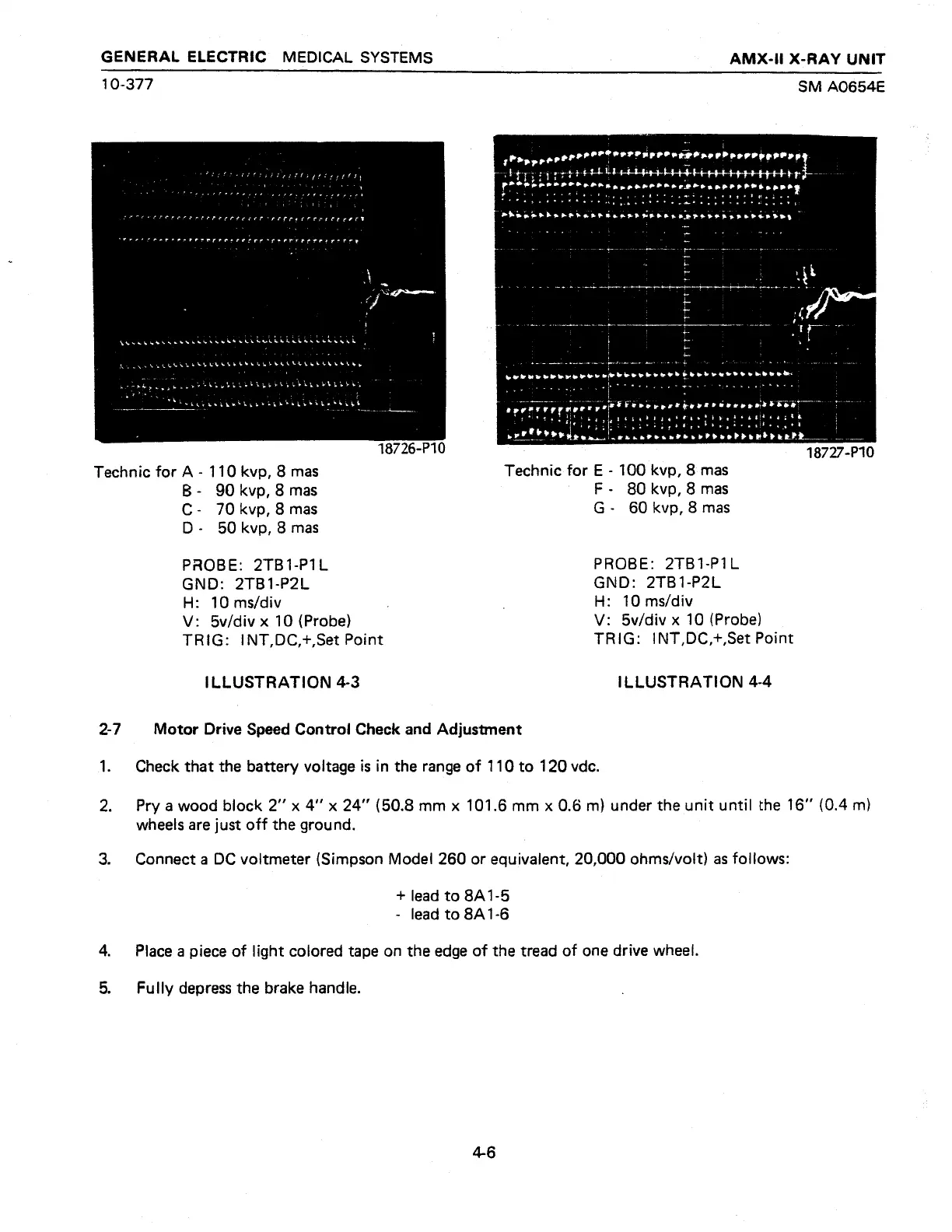

GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS
10-377
ο 111.
ο
18726-P10
Technic for A - 110 kvp, 8 mas
27
B- 90 kvp, 8 mas
C- 70 kvp, 8 mas
D- 50 kvp, 8 mas
PROBE: 2TB1-P1L
GND: 2TB1-P2L
H: 10 ms/div
V: 5v/div x 10 (Probe)
TRIG: INT,DC,+,Set Point
ILLUSTRATION 4-3
AMX-I X-RAY UNIT
SM A0654E
κών
ο. VELERO 1 ココ は ポニ ーー バニ ペコ ピ ニコ ピピ ニコニ ニニ ニニ ミニ ニコ マコ
し エコ 同
pro»
PS
0”
TTT TT TTT TT TET Tees
MN NERE ISDN
så Le are pi
: “18727-P10
Technic for E - 100 kvp, 8 mas
F- 80 kvp, 8 mas
G- 60 kvp, 8 mas
PROBE: 2TB1-P1L
GND: 2TB1-P2L
H: 10 ms/div
V: 5v/div x 10 (Probe)
TRIG: INT,DC,+,Set Point
ILLUSTRATION 4-4
Motor Drive Speed Control Check and Adjustment
Check that the battery voltage is in the range of 110 to 120 vdc.
Pry a wood block 2” x 4" x 24” (50.8 mm x 101.6 mm x 0.6 m) under the unit until the 16" (0.4 m)
wheels are just off the ground.
Connect a DC voltmeter (Simpson Model 260 or equivalent, 20,000 ohms/volt) as follows:
+ lead to 8A1-5
- lead to 8A1-6
Place a piece of light colored tape on the edge of the tread of one drive wheel.
Fully depress the brake handle.
4-6
