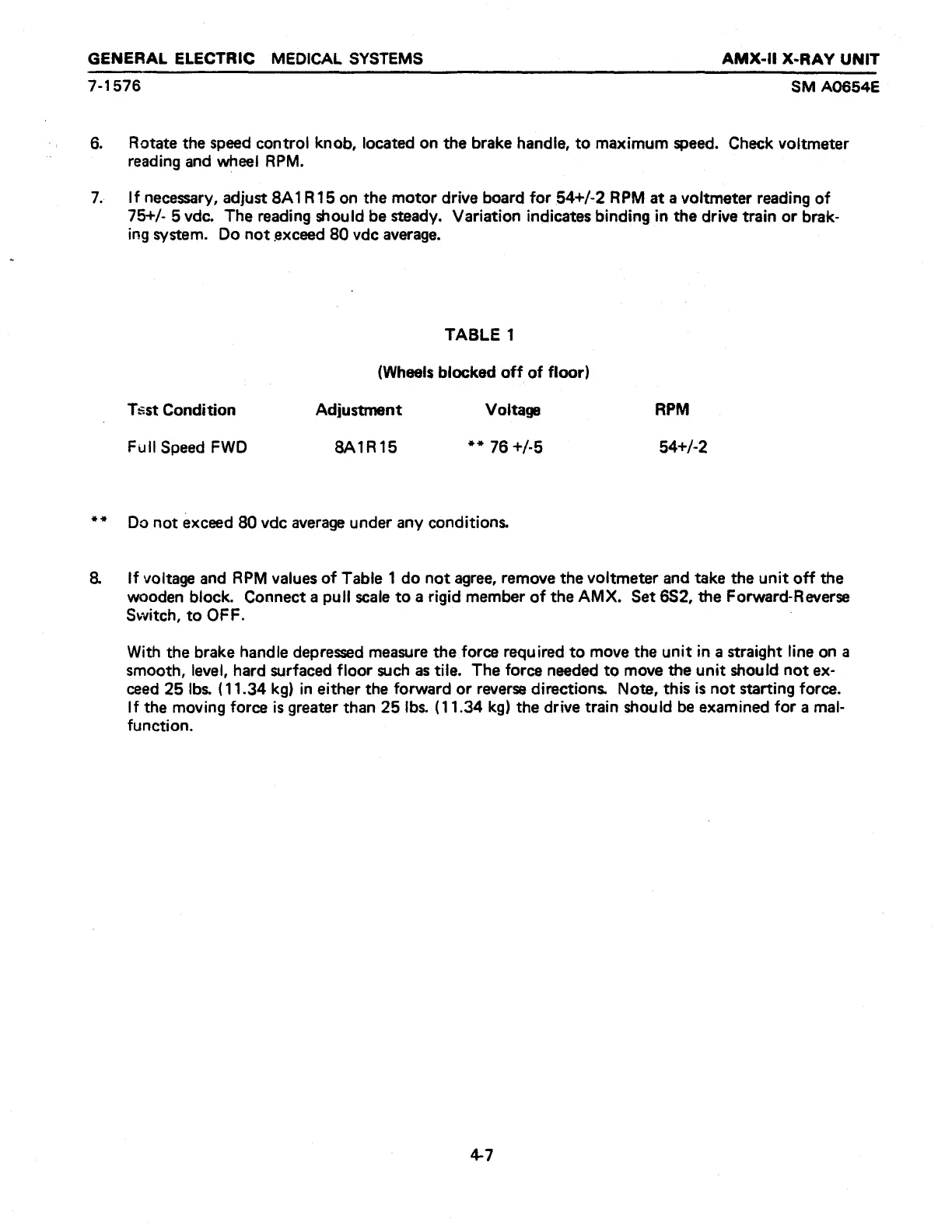

Page #68 background imageLoading...
Page #68 background image
GENERAL
ELECTRIC
MEDICAL
SYSTEMS
AMX-il
X-RAY
UNIT
7-1576
SM
AO654E
6.
Rotate
the
speed
control
knab,
located
on
the
brake
handle,
to
maximum
speed.
Check
voltmeter
reading
and
wheel
RPM.
7. |f
necessary,
adjust
8A1R15
on
the
motor
drive
board
for
54+/-2
RPM
at
a
voltmeter
reading
of
75+/-
5
vdc.
The
reading
should
be
steady.
Variation
indicates
binding
in
the
drive
train
or
brak-
ing
system.
Do
not
exceed
80
vde
average.
TABLE
1
(Wheels
blocked
off
of
floor)
Test
Condition
Adjustment
Voltage
RPM
Full
Speed
FWD
8A1R15
**
76
+/-5
54+/-2
**
Do
not
exceed
80
vdc
average
under
any
conditions.
8.
W
voltage
and
RPM
values
of
Table
1
do
not
agree,
remove
the
voltmeter
and
take
the
unit
off
the
wooden
block.
Connect
a
pull
scale
to
a
rigid
member
of
the
AMX.
Set
6S2,
the
Forward-Reverse
Switch,
to
OFF.
With
the
brake
handle
depressed
measure
the
force
required
to
move
the
unit
in
a
straight
line
on
a
smooth,
level,
hard
surfaced
floor
such
as
tile.
The
force
needed
to
move
the
unit
should
not
ex-
ceed
25
ibs.
(11.34
kg)
in
either
the
forward
or
reverse
directions.
Note,
this
is
not
starting
force.
If
the
moving
force
is
greater
than
25
Ibs.
(11.34
kg)
the
drive
train
should
be
examined
for
a
mal-
function.
47
