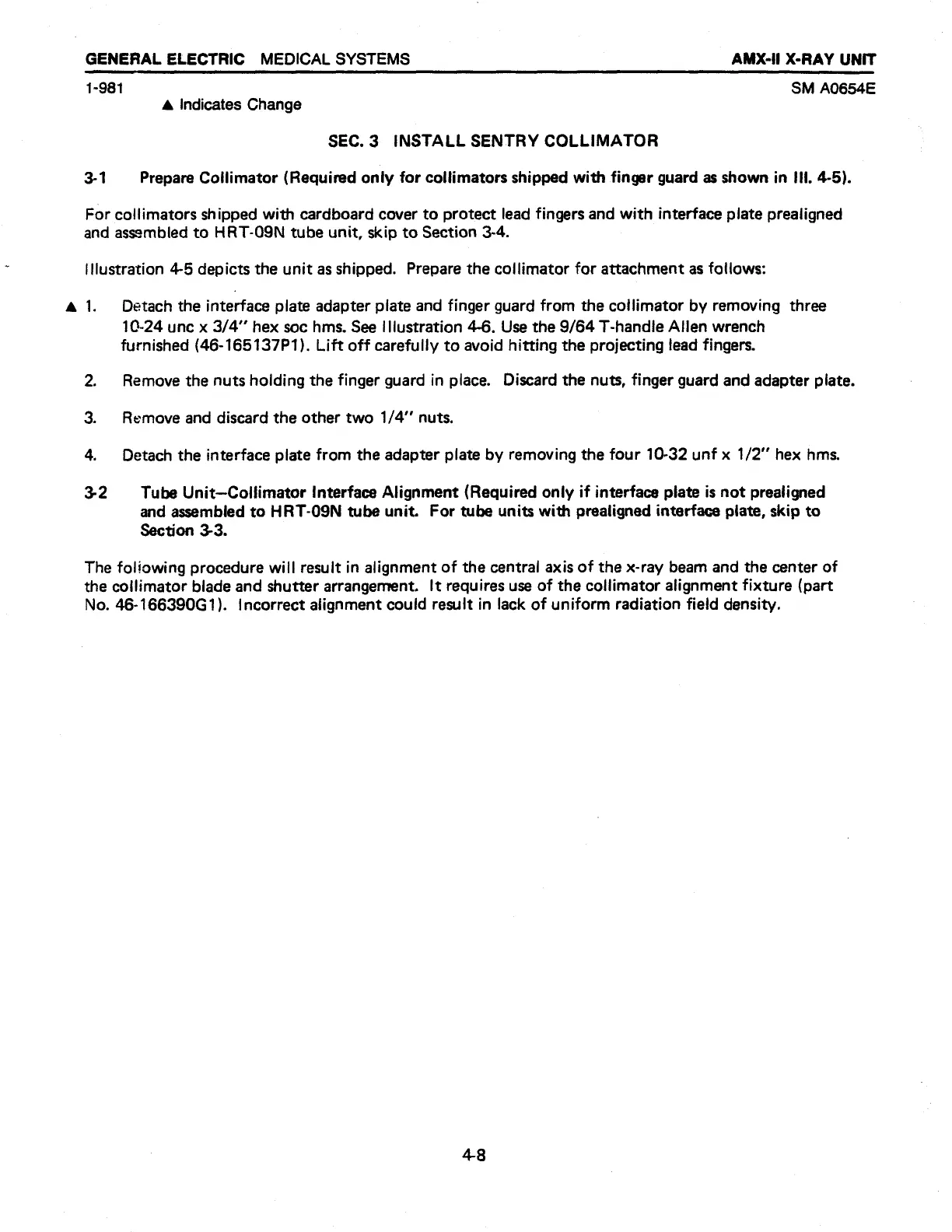

GENERAL
ELECTRIC
MEDICAL
SYSTEMS
AMX-il
X-RAY
UNIT
1-981
SM
A0654E
A
Indicates
Change
SEC.3
INSTALL
SENTRY
COLLIMATOR
3-1
Prepare
Collimator
(Required
only
for
collimators
shipped
with
finger
guard
as
shown
in
II.
4-5).
For
collimators
shipped
with
cardboard
cover
to
protect
lead
fingers
and
with
interface
plate
prealigned
and
assembled
to
HRT-OSN
tube
unit,
skip
to
Section
3-4.
Illustration
4-5
depicts
the
unit
as
shipped.
Prepare
the
collimator
for
attachment
as
follows:
4
1.
Detach
the
interface
plate
adapter
plate
and
finger
guard
from
the
collimator
by
removing
three
10-24
unc
x
3/4”
hex
soc
hms.
See
Illustration
4-6.
Use
the
9/64
T-handle
Allen
wrench
furnished
(46-165137P1).
Lift
off
carefully
to
avoid
hitting
the
projecting
lead
fingers.
2.
Remove
the
nuts
holding
the
finger
guard
in
place.
Discard
the nuts,
finger
guard
and
adapter
plate.
3.
Remove
and
discard
the
other
two
1/4”
nuts.
4.
Detach
the
interface
plate
from
the
adapter
plate
by
removing
the
four
10-32
unf
x
1/2”
hex
hms.
32
Tube
Unit—Collimator
Interface
Alignment
(Required
only
if
interface
plate
is
not
prealigned
and
assembled
to
HRT-09N
tube
unit.
For
tube
units
with
prealigned
interface
plate,
skip
to
Section
3-3.
The
foliowing
procedure
will
result
in
alignment
of
the
central
axis
of
the
x-ray
beam
and
the
center
of
the
collimator
blade
and
shutter
arrangement.
It
requires
use
of
the
collimator
alignment
fixture
(part
No.
46-166390G1).
Incorrect
alignment
could
result
in
lack
of
uniform
radiation
field
density.
48
