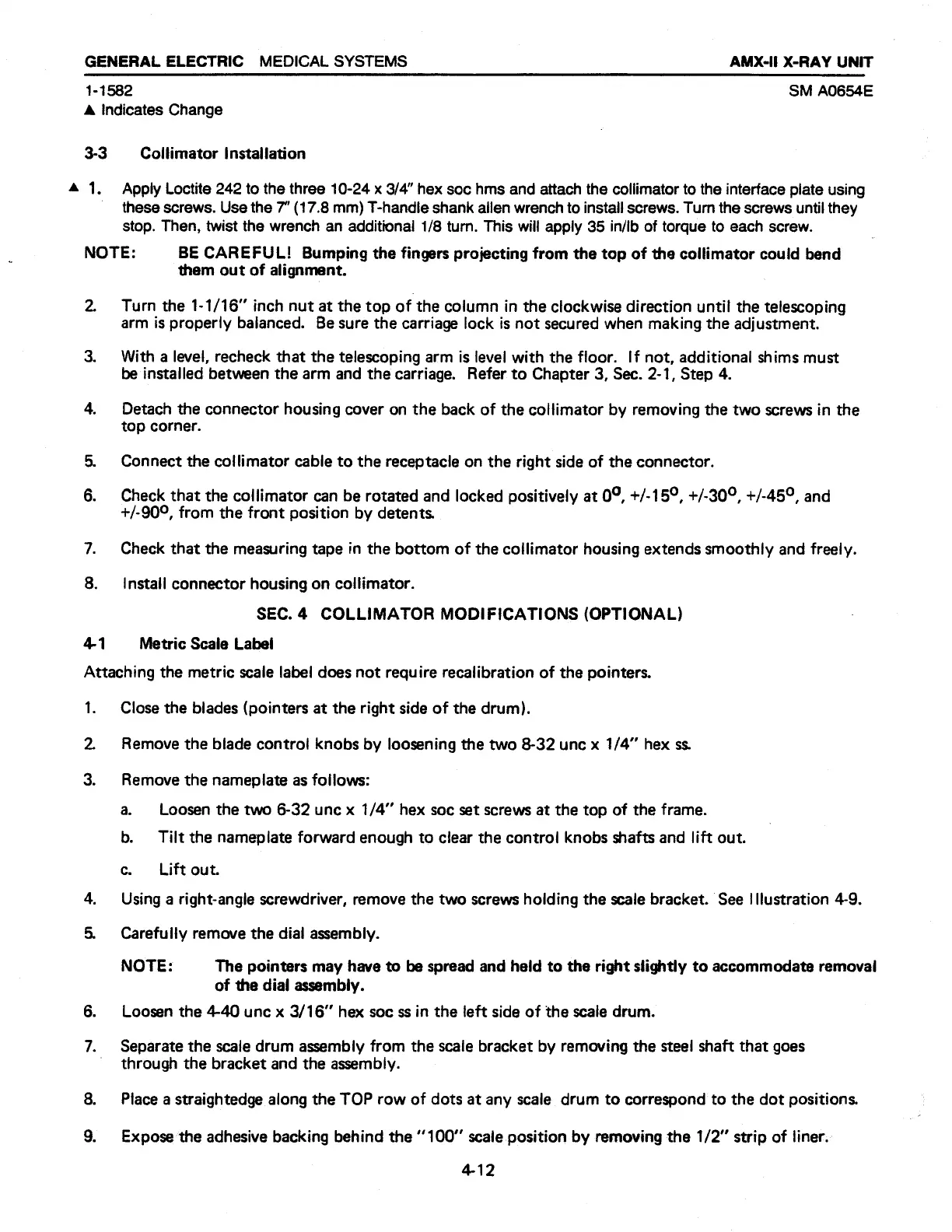

GENERAL
ELECTRIC
MEDICAL
SYSTEMS
AMX-Il
X-RAY
UNIT
1-1582
SM
A0654E
A
Indicates
Change
3-3
Collimator
Installation
4
1.
Apply
Loctite
242
to
the
three
10-24
x
3/4”
hex
soc
hms
and
attach
the
coliimator
to
the
interface
plate
using
|
these
screws.
Use
the
(17.8
mm)
T-handie
shank
allen
wrench
to
install
screws.
Turn
the
screws
until
they
stop.
Then,
twist
the
wrench
an
additional
1/8
turn.
This
will
apply
35
in/ib
of
torque
to
each
screw.
NOTE:
BE
CAREFUL!
Bumping
the
fingers
projecting
from
the
top
of
the
collimator
could
bend
them
out
of
alignment.
2.
Turn
the
1-1/16”
inch
nut
at
the
top
of
the
column
in
the
clockwise
direction
until
the
telescoping
arm
is
properly
balanced.
Be
sure
the
carriage
lock
is
not
secured
when
making
the
adjustment.
3.
With
a
level,
recheck
that
the
telescoping
arm
is
level
with
the
floor.
If
not,
additional
shims
must
be
installed
between
the
arm
and
the
carriage.
Refer
to
Chapter
3,
Sec.
2-1,
Step
4.
4.
Detach
the
connector
housing
cover
on
the
back
of
the
collimator
by
removing
the
two
screws
in
the
top
corner.
5.
Connect
the
collimator
cable
to
the
receptacle
on
the
right
side
of
the
connector.
6.
Check
that
the
collimator
can
be
rotated
and
locked
positively
at
09,
+/-15°,
+/-30°,
+/-45°,
and
+/-90°,
from
the
front
position
by
detents.
7.
Check
that
the
measuring
tape
in
the
bottom
of
the
collimator
housing
extends
smoothly
and
freely.
8.
Install
connector
housing
on
collimator.
SEC.
4
COLLIMATOR
MODIFICATIONS
(OPTIONAL)
41
Metric
Scale
Label
Attaching
the
metric
scale
label
does
not
reguire
recalibration
of
the
pointers.
1.
Close
the
blades
(pointers
at
the
right
side
of
the
drum).
2.
Remove
the
blade
control
knobs
by
loosening
the
two
8-32
unc
x
1/4”
hex
ss.
Remove
the
nameplate
as
follows:
a.
Loosen
the
two
6-32
unc
x
1/4”
hex
soc
set
screws
at
the
top
of
the
frame.
b.
Tilt
the
nameplate
forward
enough
to
clear
the
control
knobs
shafts
and
lift
out.
c.
Lift
out.
4.
Using
a
right-angle
screwdriver,
remove
the
two
screws
holding
the
scale
bracket.
See
Illustration
4-9.
5.
Carefully
remove
the
dial
assembly.
NOTE:
The
pointers
may
have
to
be
spread
and
held
to
the
right
slightly
to
accommodate
removal
of
the
dial
assembly.
6.
Loosen
the
4-40
unc
x
3/16”
hex
soc
ss
in
the
left
side
of
the
scale
drum.
7.
Separate
the
scale
drum
assembly
from
the
scale
bracket
by
removing
the
steel
shaft
that
goes
©
through
the
bracket
and
the
assembly.
8.
Place
a
straightedge
along
the
TOP
row
of
dots
at
any
scale
drum
to
correspond
to
the
dot
positions.
9.
Expose
the
adhesive
backing
behind
the
“100°
scale
position
by
removing
the
1/2”
strip
of
liner.
4-12
