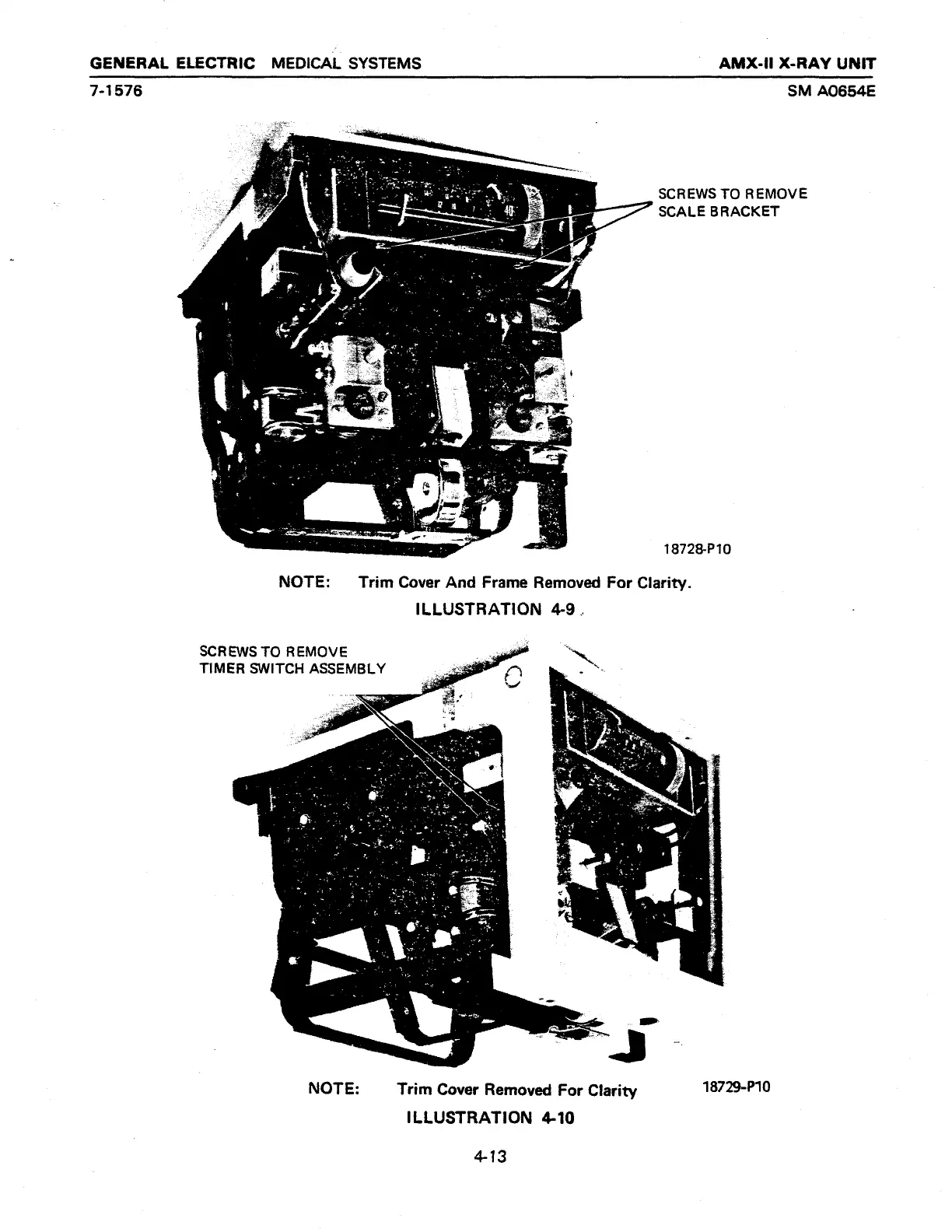

GENERAL
ELECTRIC
MEDICAL
SYSTEMS
—
AMX-HX-RAY
UNIT
7-1576
SM
AO654E
SCREWS
TO
REMOVE
SCALE
BRACKET
18728-P10
NOTE:
Trim
Cover
And
Frame
Removed
For
Clarity.
ILLUSTRATION
4-9.
SCREWS
TO
REMOVE
TIMER
SWITCH
ASSEMBLY
NOTE:
Trim
Cover
Removed
For
Clarity
18729-P10
ILLUSTRATION
4-10
4-13
73
75
Table of Contents
Table of Contents
87
Collimator Installation
111
Mounting Collimator
111
Connect Collimator Cable
111
Collimator Checks and Modifications
112
Vertical Column and Telescoping Arm Balance
113
Adjustment of Ma Stabilizer
116
Preliminary Kvp, Timer, and Load Check
118
Timer Check and Adjustment
118
Back-Up Timer Check
119
Battery Load Voltage Check
119
X-Ray Kvp and Mas Accuracy
120
Collimator Functional Checks and Adjustments
122
Cross Hair Position Check and Adjustment
122
Extension Cylinder (Optional Accessory) Alignment Check
123
Large Field Size Check
124
Field Lamp Voltage Check
124
Collimator Beam Alignment Check
126
Diagnostic Source Assembly; Inherentfiltration
129
Motor Drive System
130
Motor Drive Controls and Safety Interlocks
130
Motor Drive Speed Checks & Adjustment
131
Charge Battery
132
Battery Charge and Cut-Off Setting
132
While Waiting for Battery to Charge, Complete Paper Work
133
While Waiting for Battery to Charge, Complete Mechanical Assembly
133
Battery Capacitycheck
134
Completing the Installation
135
4
