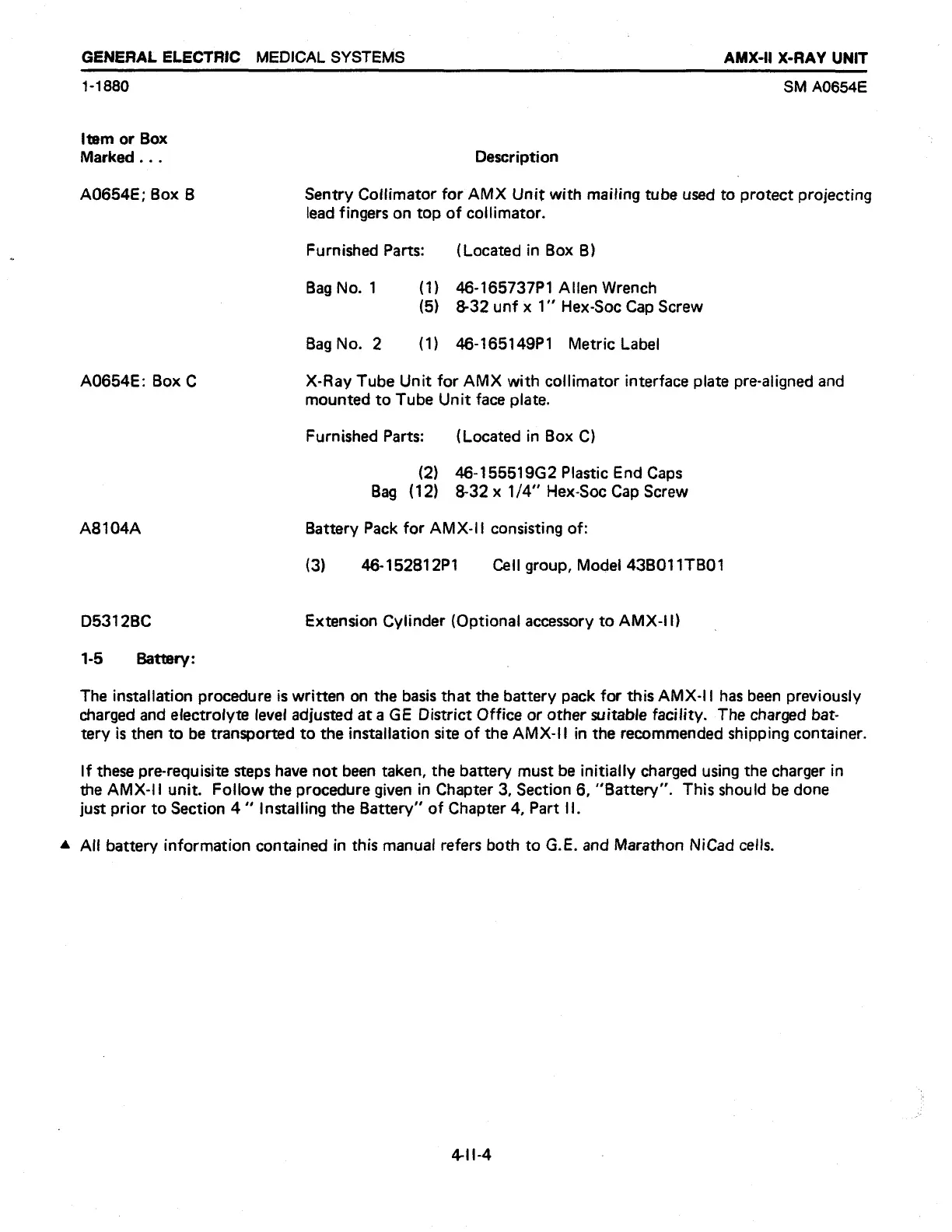

GE AMX-II

GENERAL ELECTRIC MEDICAL SYSTEMS AMX-ll X-RAY UNIT
1-1880
item or Box
Marked...
A0654E; Box B
A0654E: Box C
A8104A
D5312BC
15 Battery:
SM A0654E
Description
Sentry Coilimator for AMX Unit with mailing tube used to protect projecting
lead fingers on top of collimator.
Furnished Parts: (Located in Box B)
Bag No. 1 (1) 46-165737P1 Allen Wrench
(5) 8-32 unf x 1” Hex-Soc Cap Screw
Bag No. 2 (1) 46-165149P1 Metric Label
X-Ray Tube Unit for AMX with collimator interface plate pre-aligned and
mounted to Tube Unit face plate.
Furnished Parts: (Located in Box C)
(2) 46-155519G2 Plastic End Caps
Bag (12) 8-32 x 1/4” Hex-Soc Cap Screw
Battery Pack for AMX-li consisting of:
(3) 46-152812P1 Cell group, Model 43B011TB01
Extension Cylinder (Optional accessory to AMX-I1)
The installation procedure is written on the basis that the battery pack for this AMX-I! has been previously
charged and electroiyte level adjusted at a GE District Office or other suitable facility. The charged bat-
tery is then to be transported to the installation site of the AMX-II in the recommended shipping container.
If these pre-requisite steps have not been taken, the battery must be initially charged using the charger in
the AMX-11 unit. Follow the procedure given in Chapter 3, Section 6, “Battery”. This should be done
just prior to Section 4 “ Installing the Battery” of Chapter 4, Part Il.
A All battery information contained in this manual refers both to G.E. and Marathon NiCad cells.
411-4
