GENERAL
ELECTRIC
MEDICAL
SYSTEMS
AMX-Il
X-RAY
UNIT
1-1880
SM A0654E

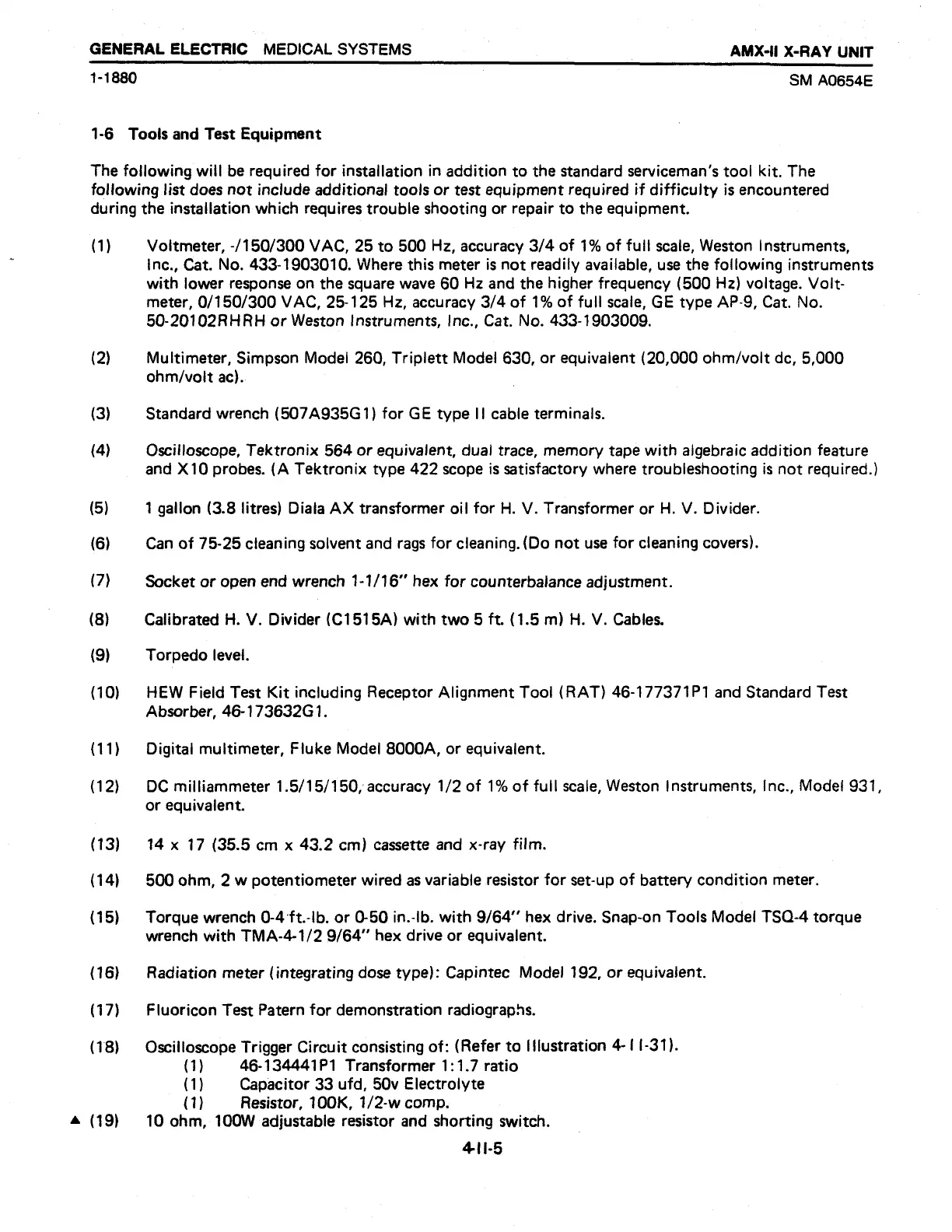

1-6 Tools and Test Equipment
The following will be required for installation in addition to the standard serviceman's tool kit. The
following list does not include additional tools or test eguipment reguired if difficulty is encountered
during the installation which reguires trouble shooting or repair to the eguipment.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
a (19)
Voltmeter, -/150/300 VAC, 25 to 500 Hz, accuracy 3/4 of 1% of full scale, Weston Instruments,
Inc., Cat. No. 433-1903010. Where this meter is not readily available, use the following instruments
with lower response on the square wave 60 Hz and the higher frequency (500 Hz) voltage. Volt-
meter, 0/150/300 VAC, 25-125 Hz, accuracy 3/4 of 1% of full scale, GE type AP-9, Cat. No.
50-20102RHRH or Weston Instruments, Inc., Cat. No. 433-1903009.
Multimeter, Simpson Modei 260, Triplett Mode! 630, or equivalent (20,000 ohm/voit dc, 5,000
ohm/volt ac).
Standard wrench (507A935G1) for GE type || cable terminals.
Oscilloscope, Tektronix 564 or equivalent, dual trace, memory tape with algebraic addition feature
and X10 probes. (A Tektronix type 422 scope is satisfactory where troubleshooting is not required.)
1 gallon (3.8 litres) Diala AX transformer oil for H. V. Transformer or H. V. Divider.
Can of 75-25 cleaning solvent and rags for cleaning. (Do not use for cleaning covers).
Socket or open end wrench 1-1/16” hex for counterbalance adjustment.
Calibrated H. V. Divider (C1515A) with two 5 ft. (1.5 m) H. V. Cables.
Torpedo level.
HEW Field Test Kit including Receptor Alignment Tool (RAT) 46-177371P1 and Standard Test
Absorber, 46-173632G1.
Digital multimeter, Fluke Model 8000A, or equivalent.
DC milliammeter 1.5/15/150, accuracy 1/2 of 1% of fuil scale, Weston Instruments, Inc., Model 931,
or equivalent.
14 x 17 (35.5 cm x 43.2 cm) cassette and x-ray film.
500 ohm, 2 w potentiometer wired as variable resistor for set-up of battery condition meter.
Torque wrench 0-4 ft.-lb. or 0-50 in.-ib. with 9/64” hex drive. Snap-on Tools Model TSQ-4 torque
wrench with TMA-4-1/2 9/64” hex drive or equivalent.
Radiation meter (integrating dose type): Capintec Model 192, or equivalent.
Fluoricon Test Patern for demonstration radiographs.
Oscilloscope Trigger Circuit consisting of: (Refer to Illustration 4-1 1-31).
(1) 46-134441P1 Transformer 1:1.7 ratio
(1) Capacitor 33 ufd, 50v Electrolyte
(1) Resistor, 100K, 1/2-w comp.
10 ohm, 100W adjustable resistor and shorting switch.
411-5
