GE APN08 Series User Manual

– 13 –
1 2
3
4
5
6
7
10
7
8
9
11
12
13
14
15

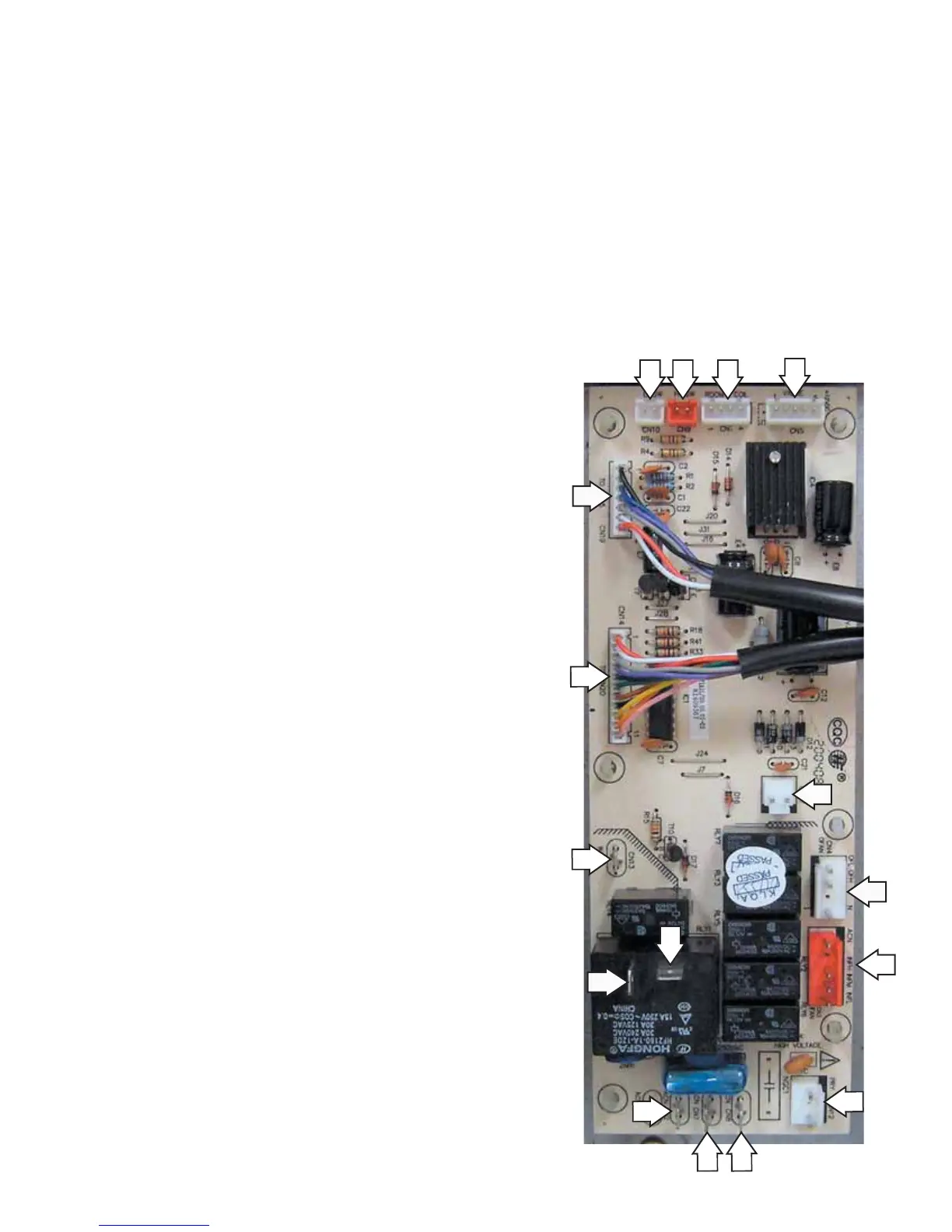

11 - Evaporator fan motor (CN3). Approximate resistance readings:
WH to BK - 70 Ω
WH to G - 90 Ω
WH to Y - 105 Ω
12 - Condenser fan motor (CN4). Approximate resistance readings:
WH to BK - 45 Ω
WH to Y - 80 Ω
13 - Transformer (CN17 secondary). Secondary transformer input 12 VAC. Secondary transformer
resistance is approximately 2 Ω.
14 - Compressor overload.
15 - Terminal block (L1). L1 input from the power cord.
