– 17 –

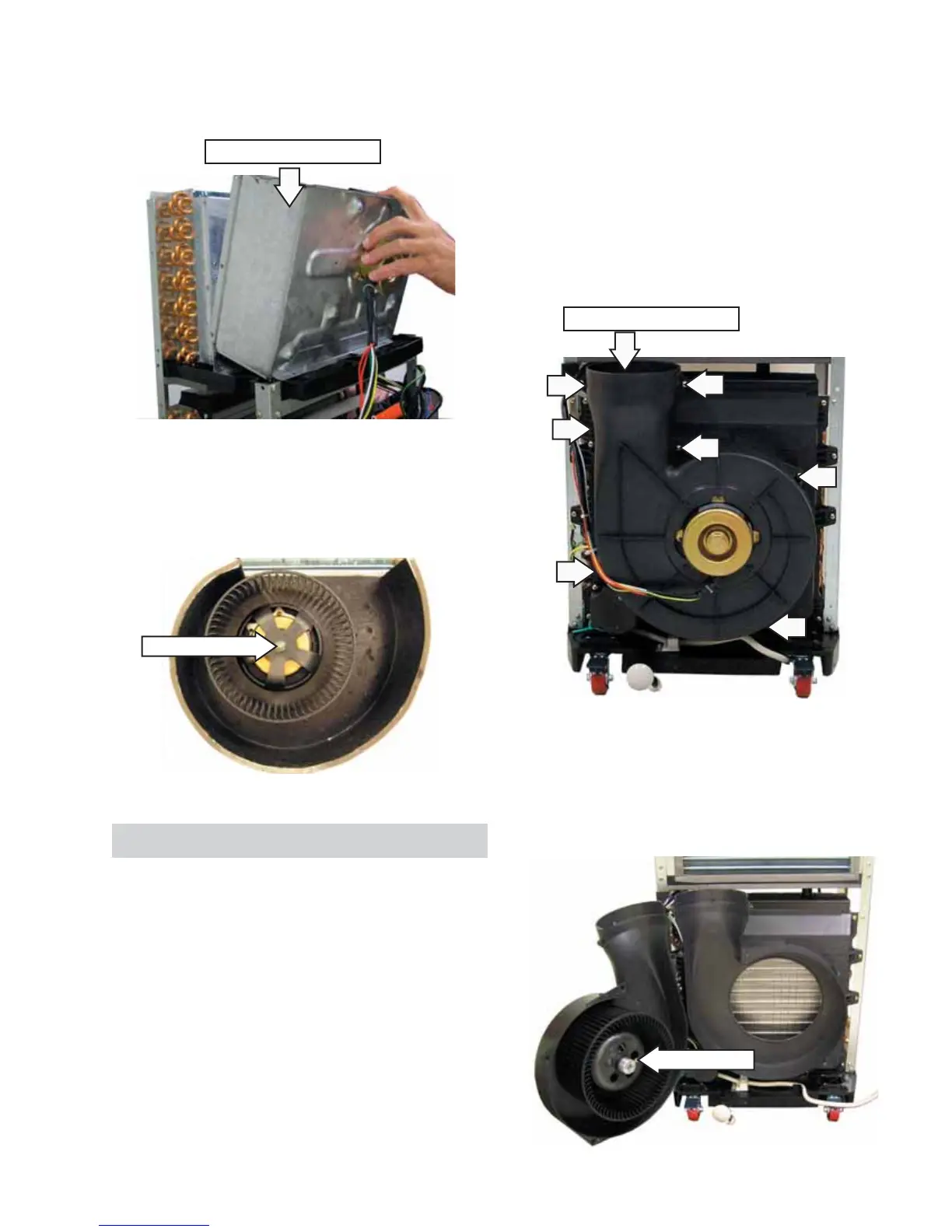

Condenser Fan Motor Removal
1. Remove outer cover (see Outer Cover).
2. Remove the power supply housing cover (see
Power Supply Board).
3. Disconnect the motor wires from the power
supply board. Remove the ground wire.
4. Remove the 7 Phillips-head screws from
the condenser fan housing. Separate the
condenser fan housing.
Condenser Fan Assembly
The condenser fan assembly consists of a
2-speed 120 VAC motor and fan. It is connected
to the power supply board at CN4.
Disconnect CN4 and check for resistance on the
motor connector between the following wires:
• White to black wires (high speed) -
approximately 45 Ω.
• White to yellow wires (low speed) -
approximately 80 Ω.
Condenser Fan
The fan is held in place by an 8-mm hex-head
set screw. The fan motor is held in place by 4
Phillips-head screws.
9. Remove the 8 Phillips-head screws from each
side of the evaporator fan housing. Remove
the evaporator fan housing.
Evaporator Fan
The fan is held in place by a 10-mm retaining
nut. The fan motor is held in place by 3 Phillips-
head screws.
Evaporator Fan Housing
Condenser Fan Housing
Retaining Nut
Set Screw
To Next Page
