Installation Instructions

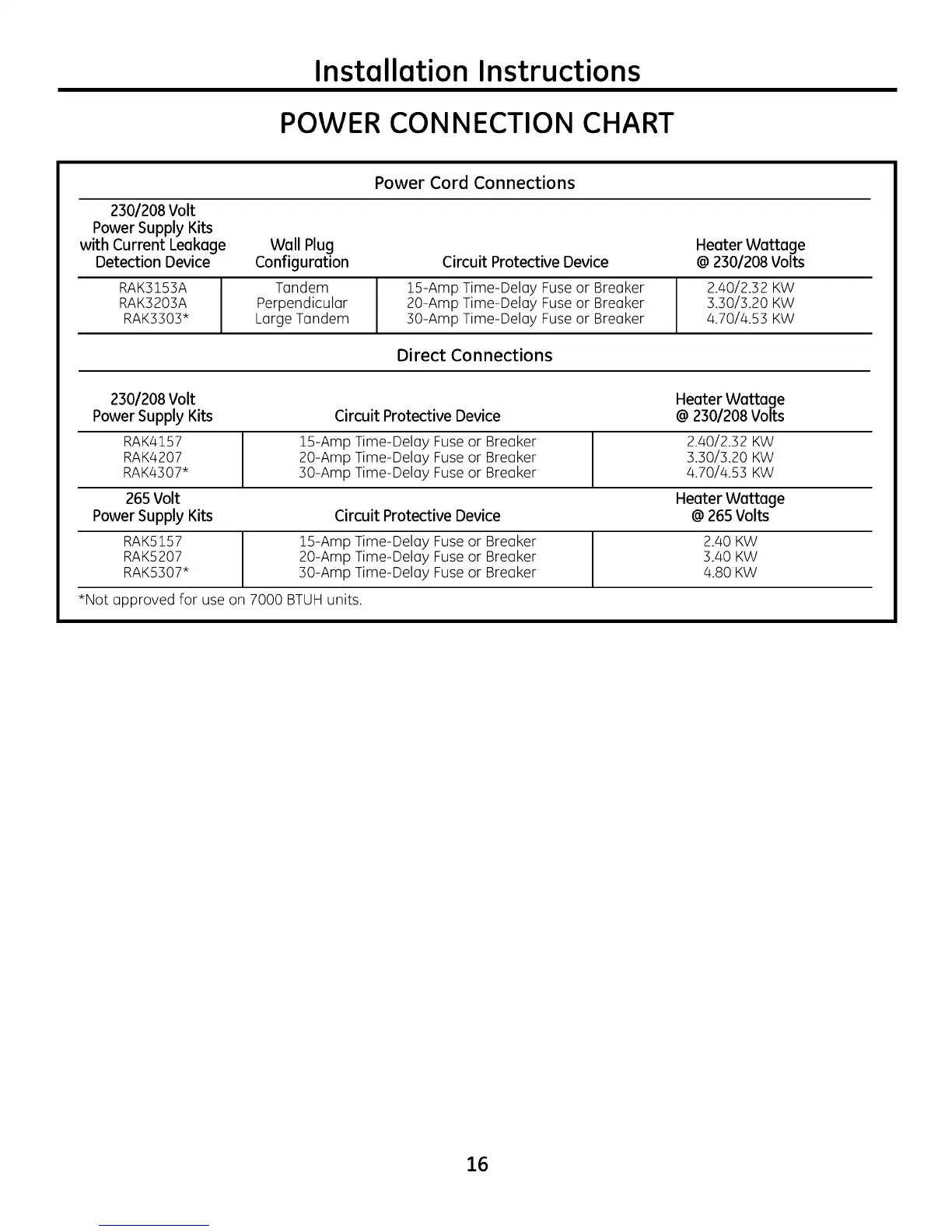

POWER CONNECTION CHART
Power Cord Connections
230/208 Volt
Power Supply Kits
with Current Leakage
Detection Device
RAK3153A I
RAK3203A
RAK3303*
Wall Plug
Configuration
Tandem J
Perpendicular
Large Tandem
Circuit Protective Device
Heater Wattage
@ 230/208 Volts
15-Amp Time-Delay Fuse or Breaker
20-Amp Time-Delay Fuse or Breaker
30-Amp Time-Delay Fuse or Breaker
2.40/2.32 KW
3.30/3.20 KW
4.70/4.53 KW
Direct Connections
230/208 Volt
Power Supply Kits
RAK4157 I
RAK4207
RAK4307*
265 Volt
Power Supply Kits
Circuit Protective Device
15-Amp Time-Delay Fuseor Breaker
20-Amp Time-Delay Fuseor Breaker
30-Amp Time-Delay Fuseor Breaker
Heater Wattage
@ 2301208Volts
Circuit Protective Device
2.40/2.:32 KW
:3.30/3.20 KW
4.70/4.53 KW
RAK5157 J 15-Amp Time-Delay Fuseor Breaker
RAK5207 J 20-Amp Time-Delay Fuseor Breaker
RAK5307* 30-Amp Time-Delay Fuseor Breaker
*Not approved for use on 7000 BTUH units.
Heater Wattage
@ 265 Volts
2.40 KW
:3.40 KW
4.80 KW
16
