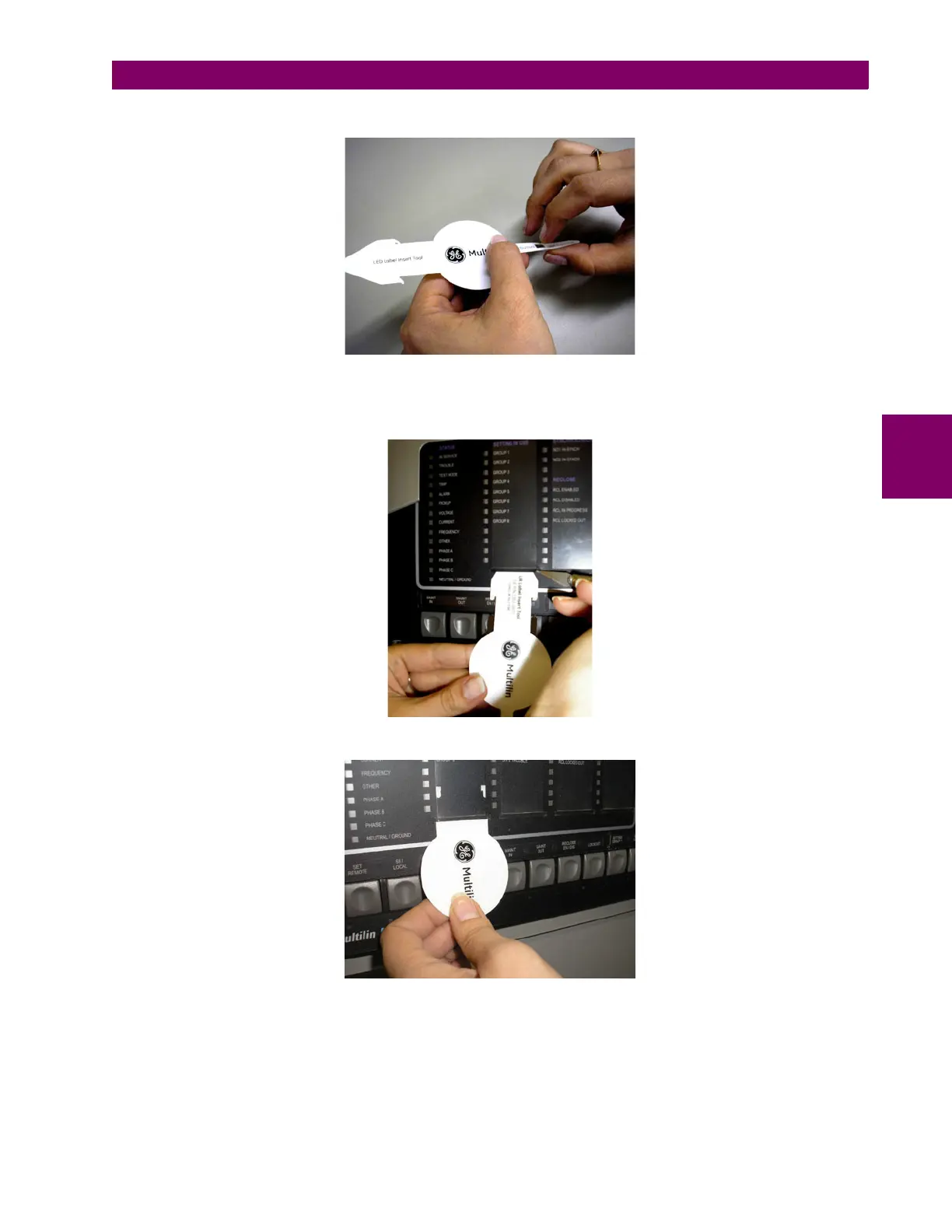

2. Bend the tab at the center of the tool tail as shown below.
The following procedure describes how to remove the LED labels from the B30 enhanced front panel and insert the custom
labels.
1. Use the knife to lift the LED label and slide the label tool underneath. Make sure the bent tabs are pointing away from
the relay.
2. Slide the label tool under the LED label until the tabs snap out as shown below. This attaches the label tool to the LED
label.
