4-20 B30 Bus Differential System GE Multilin
4.3 FACEPLATE INTERFACE 4 HUMAN INTERFACES
4

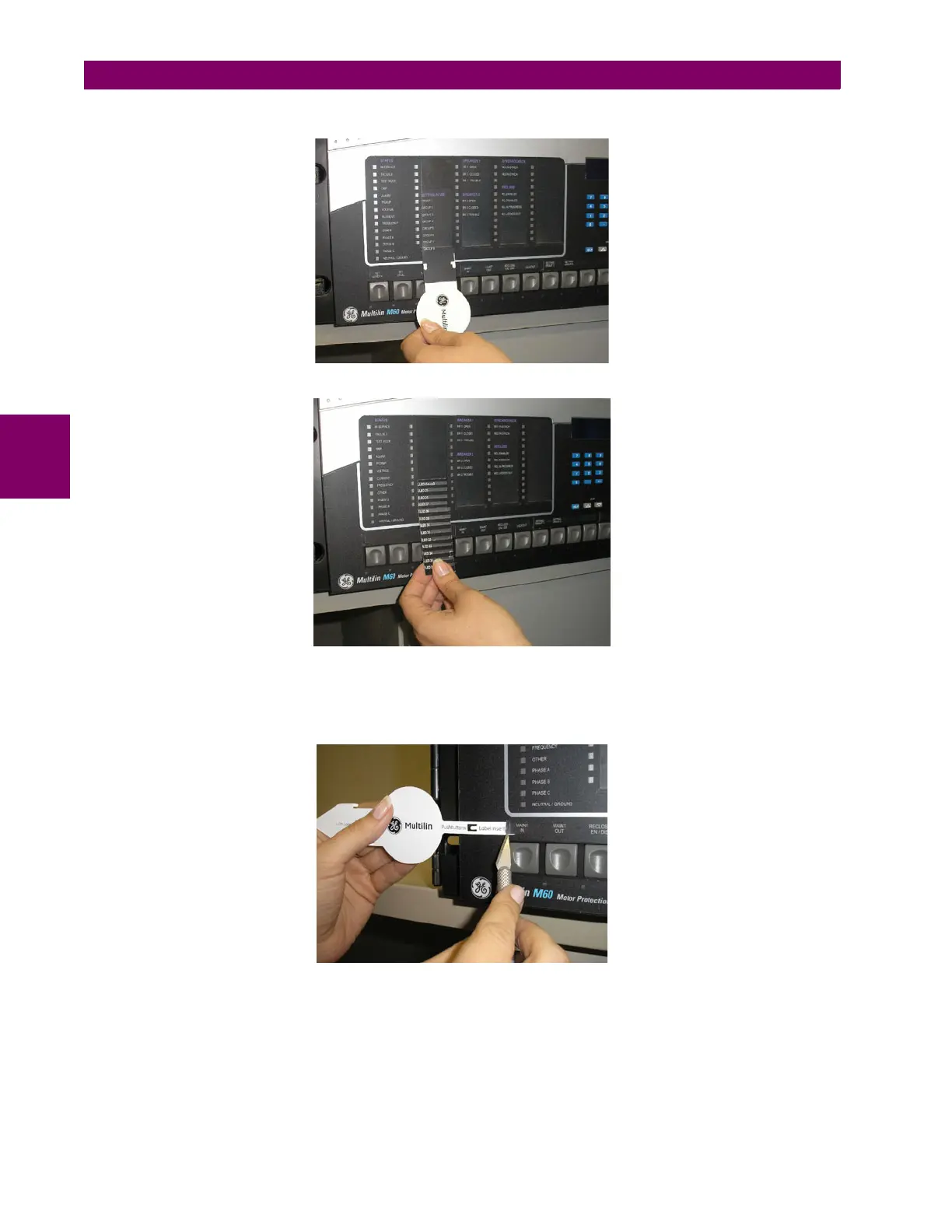

3. Remove the tool and attached LED label as shown below.
4. Slide the new LED label inside the pocket until the text is properly aligned with the LEDs, as shown below.
The following procedure describes how to remove the user-programmable pushbutton labels from the B30 enhanced front
panel and insert the custom labels.
1. Use the knife to lift the pushbutton label and slide the tail of the label tool underneath, as shown below. Make sure the
bent tab is pointing away from the relay.
