GE Multilin B30 Bus Differential System 4-21

4 HUMAN INTERFACES 4.3 FACEPLATE INTERFACE

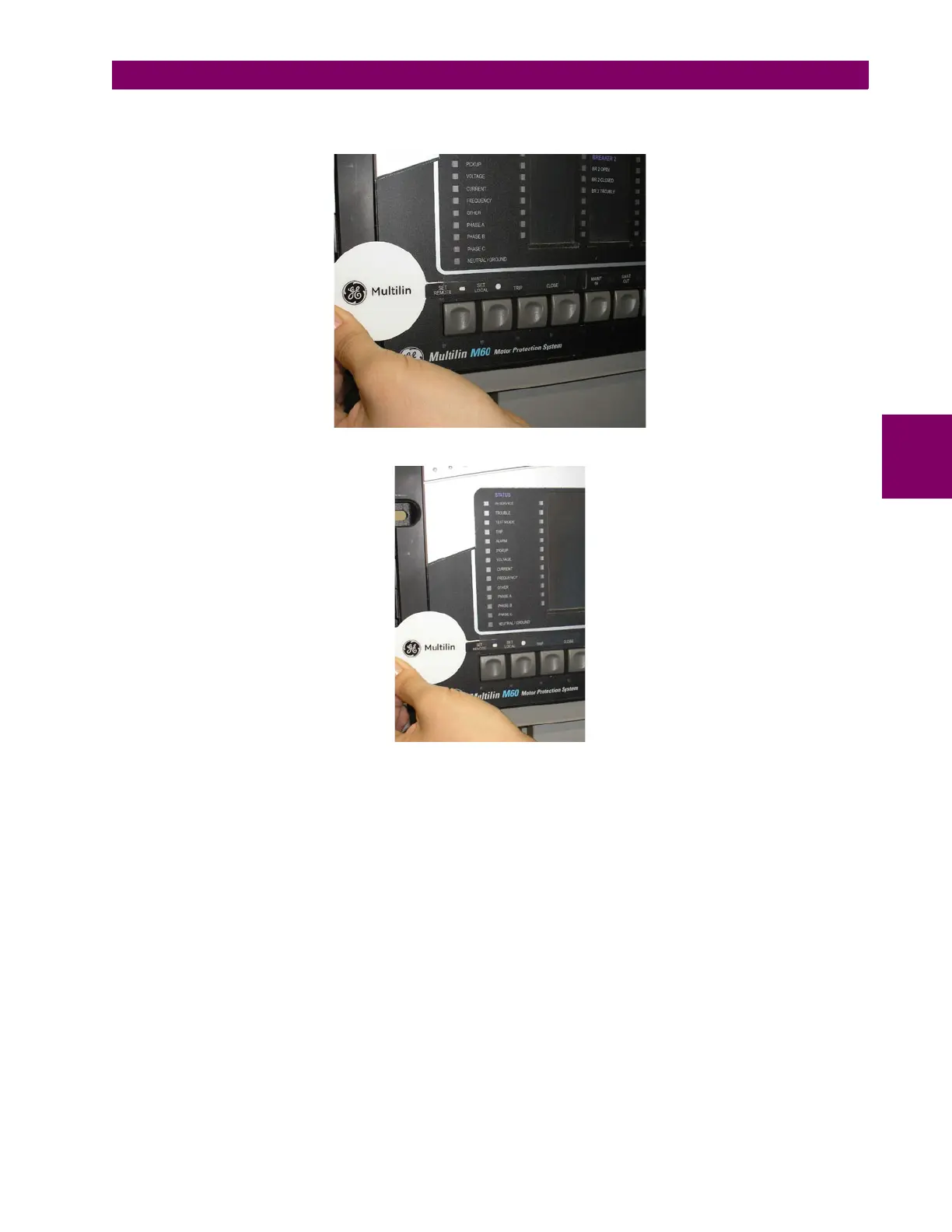

2. Slide the label tool under the user-programmable pushbutton label until the tabs snap out as shown below. This

attaches the label tool to the user-programmable pushbutton label.

3. Remove the tool and attached user-programmable pushbutton label as shown below.
