– 19 –

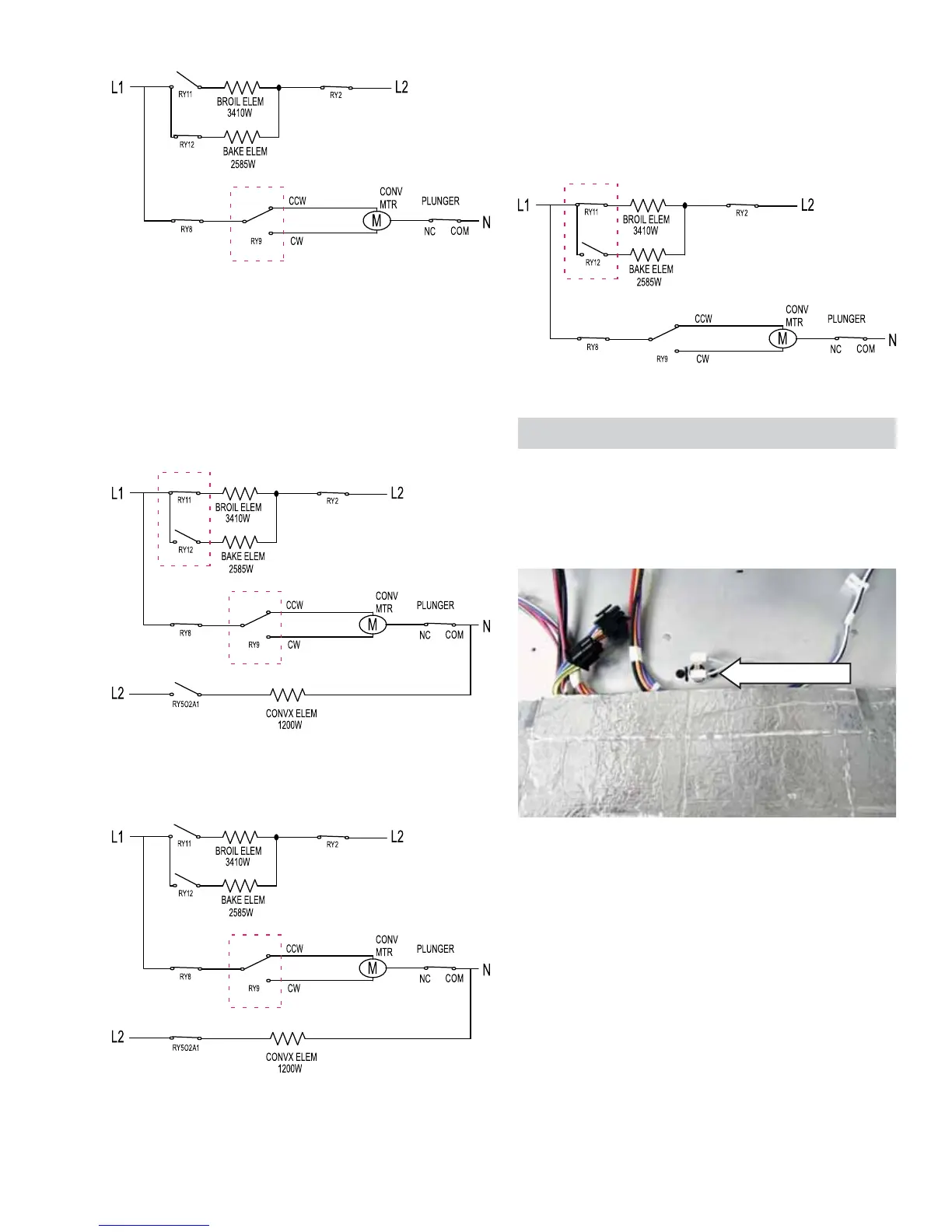

Red Box indicates cycling contacts
Heat Maintained
Convection Bake - Multi Rack preheats with bake
element and broil element operating (cycling)
alternately. Heat maintained with convection
element only. Fan alternates CW and CCW rotation.
Preheat
Red Box indicates cycling contacts
Heat Maintained
Red Box indicates cycling contacts
Convection Roast preheats with bake element and
broil element operating (cycling) alternately. Heat
maintained with bake element and broil element
operating (cycling) alternately. Fan rotates CCW.
Preheat and Heat Maintained
Red Box indicates cycling contacts
Thermal Switch
The thermal switch is located under the rangetop
on the burner box fl oor and protects the electronics
from damage should a high temperature condition
occur when the range is in the self-clean mode.
The thermal switch is wired in series with the lock
motor switches. The thermal switch opens at 265°F.
The switch closes when temperatures cool below
approximately 220°F. If the thermal switch opens
during the following conditions:
Oven Temperature Below 600°F (315°C). •
Program is cancelled when thermal switch
opens. Lock motor will run and the word
LOCKED will be fl ashing in the display.
Oven Temperature Above 600°F (315°C). Any •
mode of operation control will go to -F2- failure
code. When this condition exists, check the
fan operation (look for obstructions), inspect
oven installation (make sure grill areas are not
blocked), oven insulation, and lock circuit.
Thermal Switch
