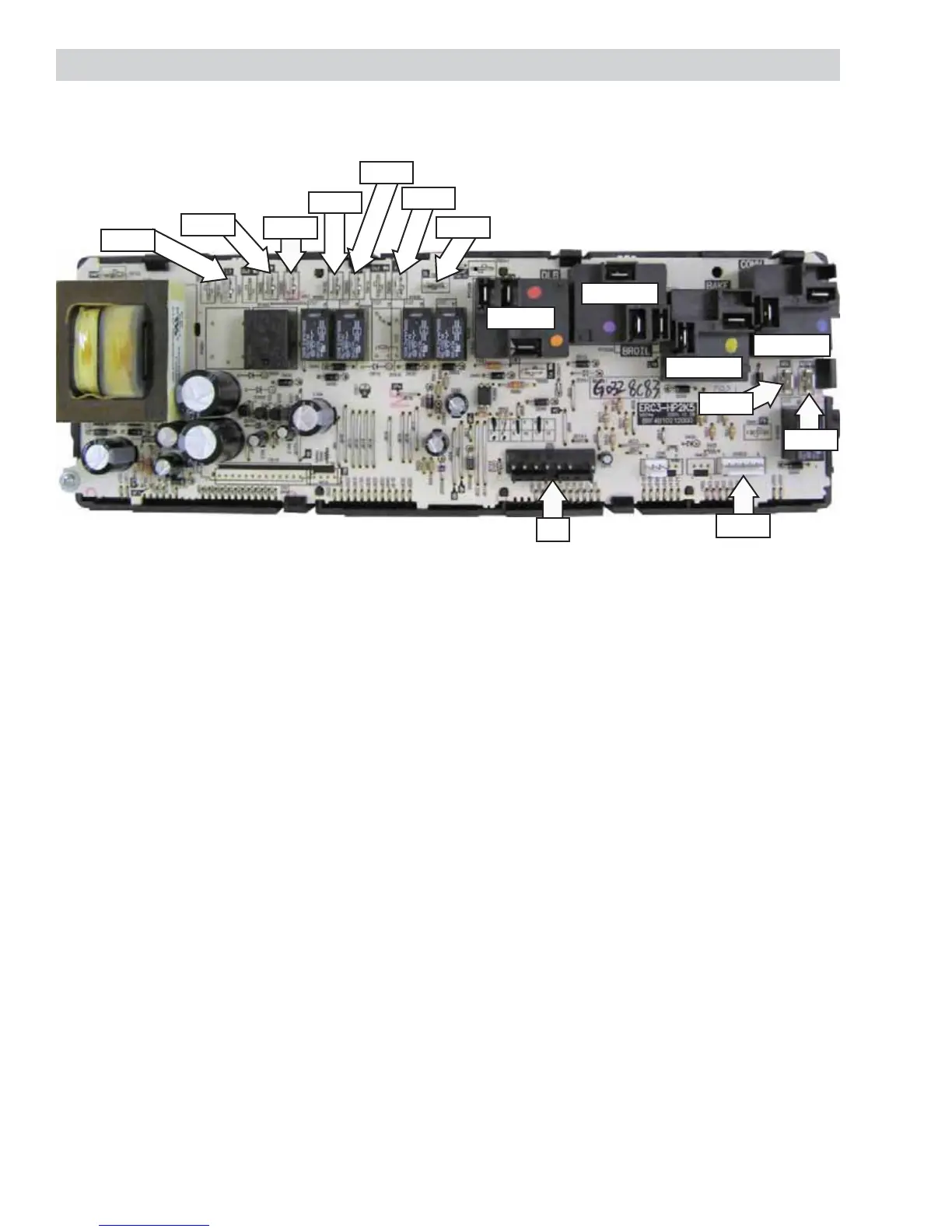

Electronic Range Control (ERC) Pin Locator
TB101 - L1
TB102 - Neutral
TB620 - Oven Light
TB630 - Door Lock Switch
TB640 - Door Lock Switch, Lock Out Relay
TB650 - Convection Motor CW
TB655 - Convection Motor CCW
TB660 - Door Lock Motor
TB661 - Door Lock Common
CN2
CN950
TB650
TB101
TB655
TB102
TB640
TB630
TB620
RY 540B
RY 501A1
RY 502A1
TB660
TB661
RY 500A1
CN2 - Sensor, Thermal Switch, Door Lock,
Switch, Door Unlock Switch, Probe
CN950 - Glass Touch Board
RY500A1 - Broil
RY501A1 - Bake
RY502A1 - Convection Element
RY540B - Double Line Break
Switch, Door Unlock Switch, Probe
