07 Ventilation modes

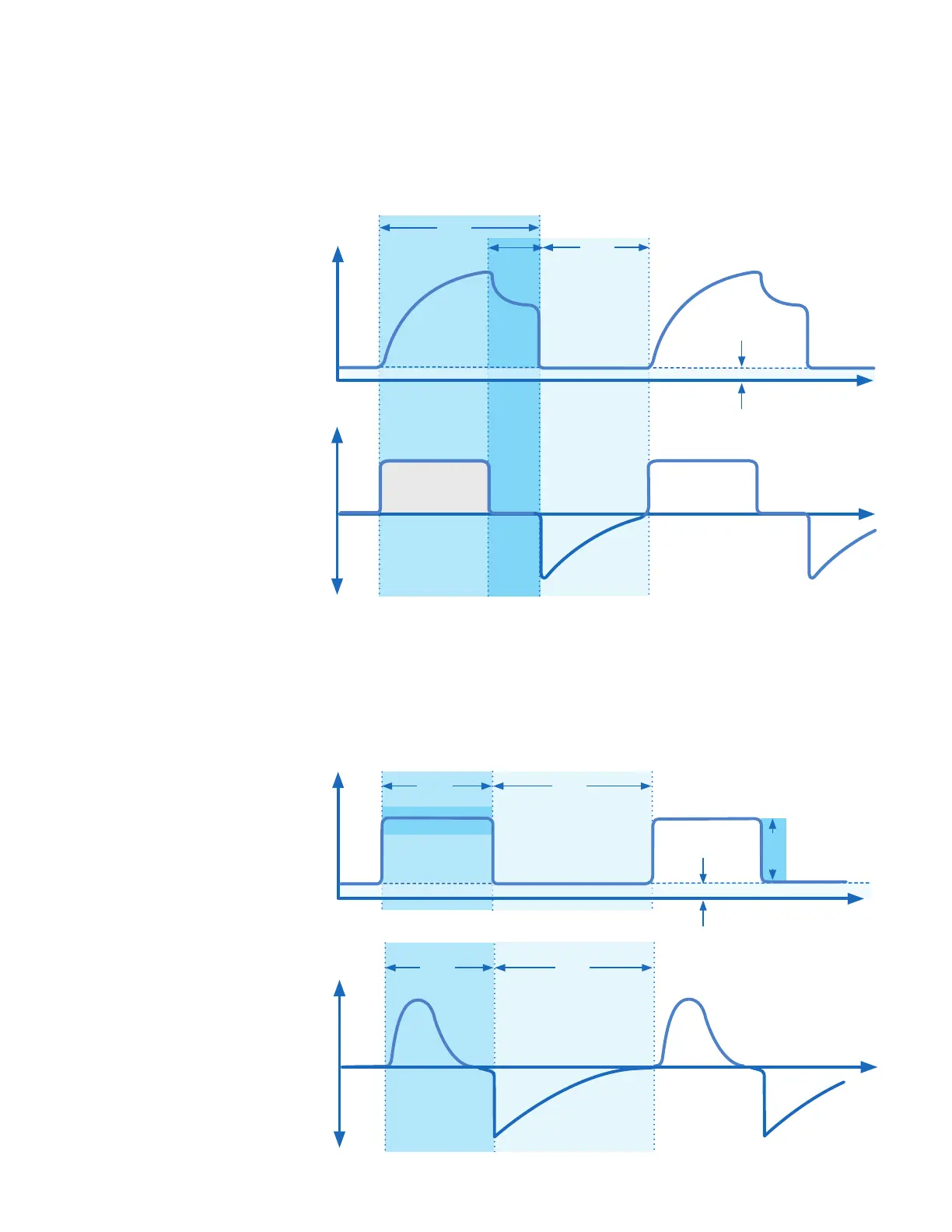

Volume control mode (VCV)
• Supplies a set volume to the
patient
• Calculates a ow based on the set
tidal volume and the length of the
inspiratory time
• Can compensate for breathing
system compliance, fresh gas
ow, and moderate breathing
system leaks
• Inspiratory pause is available
VCV mode settings:
• TV
• RR
• I:E
• Tpause
• PEEP
• Pmax
Flow
TV
Pressure
Time
Insp
Pause
Time
Peep
Texp
Tinsp
Pressure control mode (PCV)
• Supplies a constant set pressure
during inspiration
• Inspiratory time is calculated
from the rate and I:E settings
• High initial ow
• Flow is adjusted automatically to
maintain set inspiratory pressure
PCV mode settings:
• Pinsp
• RR
• I:E
• PEEP
• Pmax
• Rise Rate
Flow
Time
Tinsp Texp
Time
Tinsp Texp
Pinsp
Peep
Pressure
