Evolve™ LED Area Light

Scalable Fixtures (EAS)

Troubleshooting

and Repair Guide

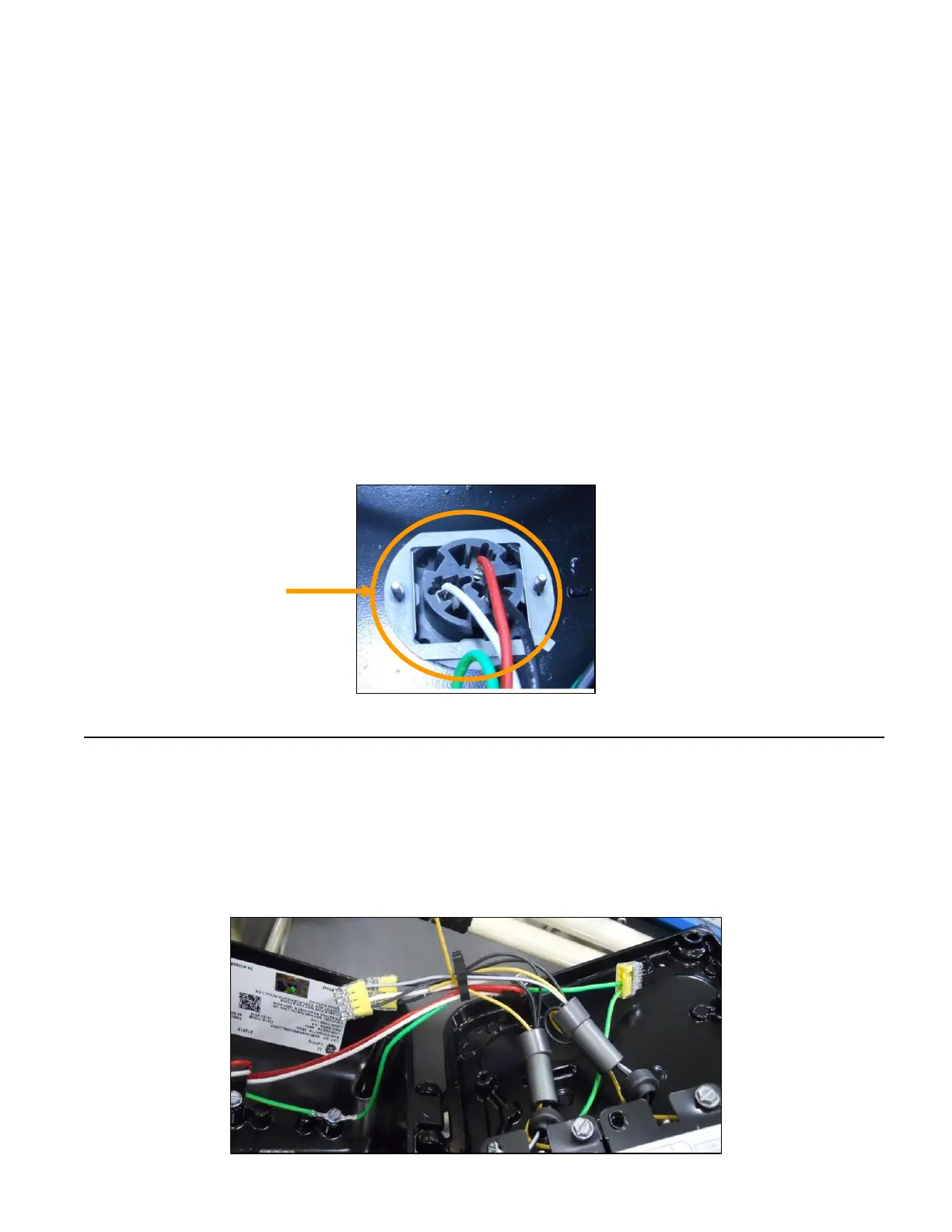

Section 2: Day-Burning

When the Fixture will not shut off at daybreak when using a photocell controller,

this is called a day burner.

1. Replace photocell controller with a new or known good Photocell.

A. Unit will power off when Photocell is removed.

B. Install and Test Function of new photocell by covering the window with

Electrical tape or a glove.

C. If Photocell was defective the fixture should come on now and shut off when the

covering is removed.

2. If Replacing the Photocell does not resolve the issue, check the wiring in the fixture from the

Photocell Receptacle

Pull back gently on leads.

They should not disengage.

Terminals have tab that

must be seated in groove

inside of receptacle.

Section 3: Power Door Replacement (EASC)

• Disconnect and isolate incoming power to the fixture.

• Cut and strip input leads to LED Driver at the connectors
