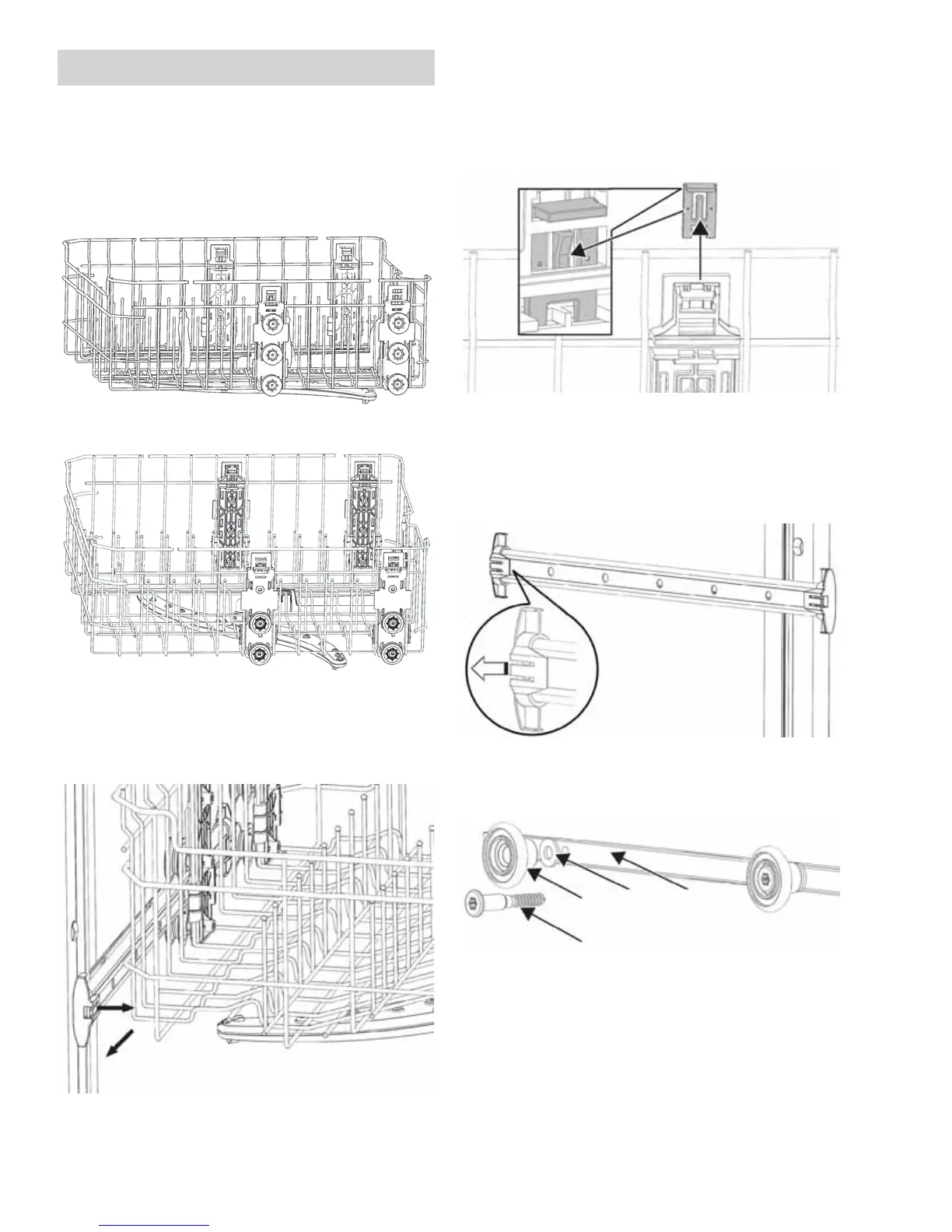

– 24 –
(Continued next page)
Racks
Upper Rack
7ZRUDFNFRQ¿JXUDWLRQVDUHDYDLODEOHGHSHQGLQJRQ
the model: adjustable and non-adjustable. Both are
similar in design of rails and rollers.
Adjustable
Non-Adjustable
To remove the rack from the dishwasher, pull the
rail assembly out a few inches for easier access.
Press the tab on the end cap to the center of the
GLVKZDVKHUDQGSXOOWKHHQGFDSRȺWKHUDLO
The rack may now be removed.
Tub
Thrust
Washer
Tub
Roller
T20 Torx Screw
Upper Rack Rollers and Brackets
The upper rack roller brackets are locked into place
with a clip. The clip must be removed to remove the
roller brackets from the rack. Press in on the tab and
lift the locking clip.
The tub rollers are attached to the tub with a screw
in each roller.
To Remove the Tub Rollers
Remove the upper rail by removing the rear end cap.
Remove the T20 Torx screw securing each roller to
the tub.
