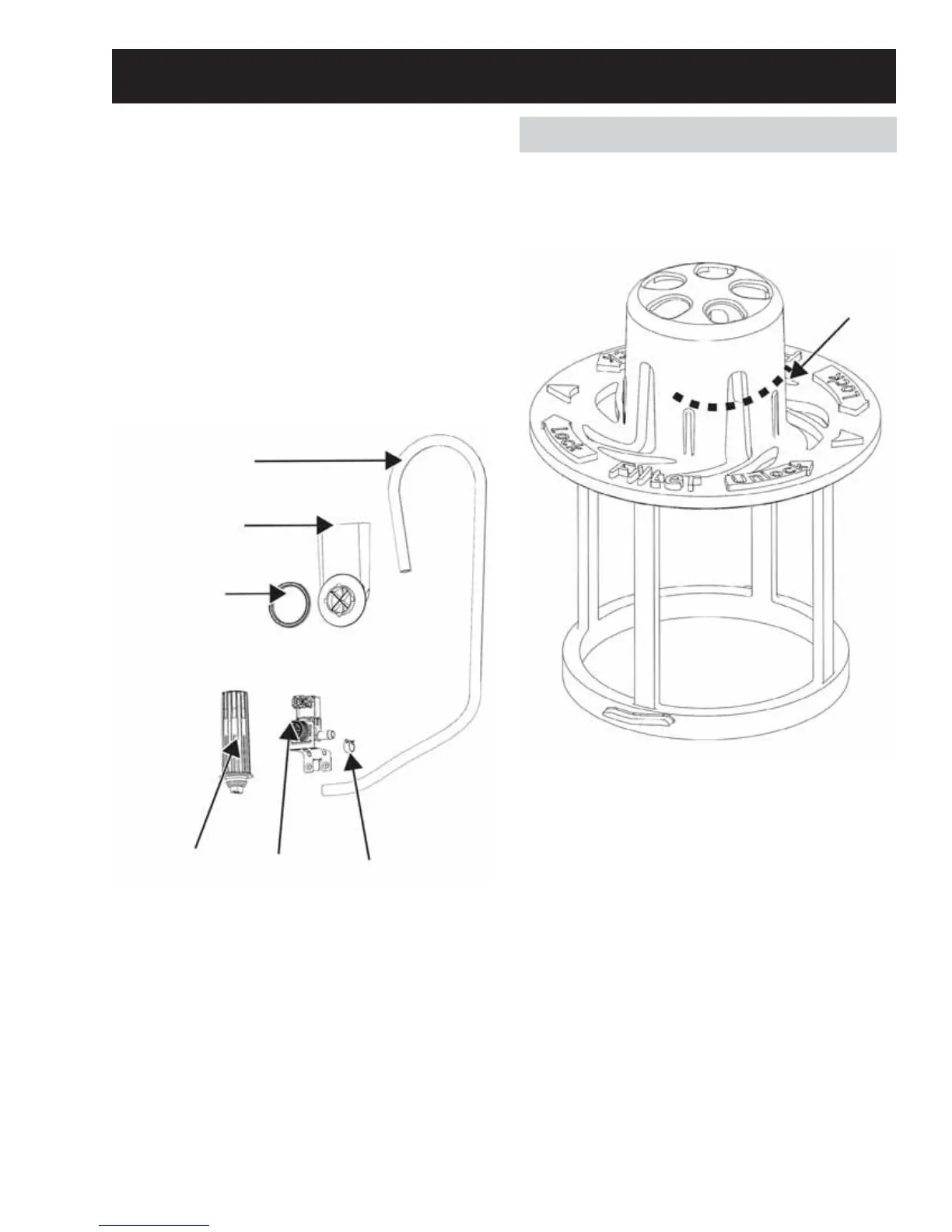

Fill Hose
Fill Cup
Gasket
Clamp
Water Valve
Flood Switch
7KHGLVKZDVKHUKDVD¿OOYROXPHRIDQDSSUR[LPDWH
.83 gallons of water and is a DC volt circuit. The
water valve is rated at 13.5 VDC, resistance is 32
RKPVDQGKDVDÀRZUDWHRI*307KH¿OOWLPH
is 1 minute. The water valve is located in the front
left corner, under the dishwasher. As with past
GE Dishwashers, it is secured to the left base leg
DVVHPEO\7KHÀRRGVHQVRULVORFDWHGLQWKHVXPS
7KHÀRRGVZLWFKKDVDQLQWHUQDOÀRDWZKLFKZLOO
RSHQWKH¿OOFLUFXLWVKRXOGWKH¿OOOHYHOUHDFKDQHDU
ÀRRGFRQGLWLRQ7KHWKHUPLVWRULVSDUWRIWKHÀRRG
sensor and monitors the temperature of the water
in the sump.
Components
Water Level
To check for proper water level, place the
dishwasher in Service Mode and run the Fill Test (see
the Service Mode section in this guide). Water must
reach the level shown below.
Minimum
Water
Level
Fill System
