Inner Door Panel
SS Door Attach Strips
Attachment strips are used on SS Inner Door models
only; plastic inner doors have this feature molded
into them. Strips also have the boss for the screw to
secure the inner and outer door panels.
Attachment Strips Removal
1. Remove and separate the inner and outer door
panels.
2. Remove the front control console or top control
panel.
3. Remove the two T15 Torx screws on the side
attach strips.
4. Slide the strip inward to remove.
5. To remove the top attach strip, slide the strip
down after the top console and side attach
strips have been removed.
Door Gasket
1. Remove the door.
2. Place the door on a protected surface to prevent
damage.
3. On plastic inner door models, slide the gasket
either direction to remove. The door does not
need to be separated on plastic inner doors.
4. On SS Inner Door models, the inner door panel
has the door gasket riveted to the panel. The
inner door panel must be replaced to replace
the door gasket.

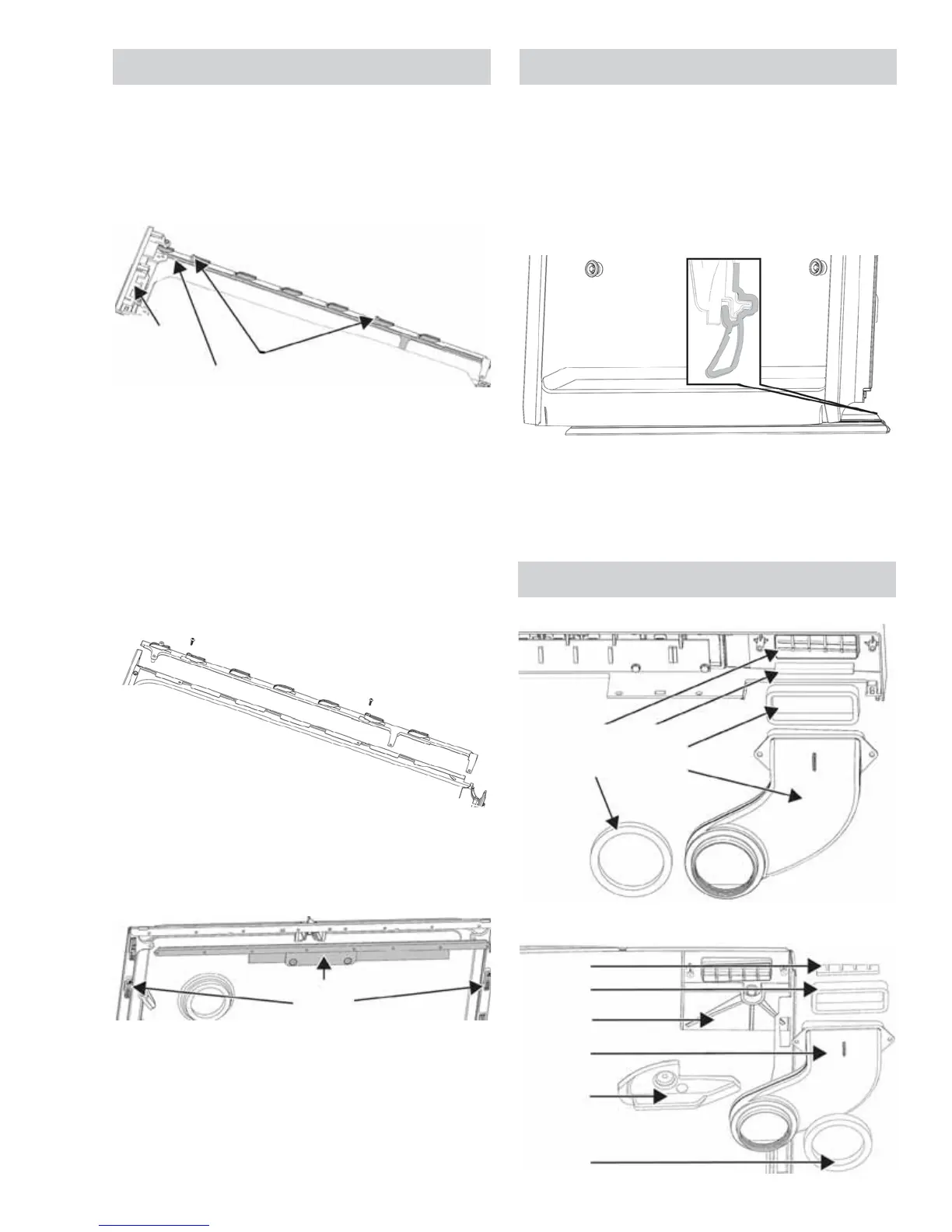

Vent Parts
Front Control Models
Top Control Models
Top
Console
Side Attach
Strip
Side Attach Strip
Screws
(T15 Torx)
Top Attach Strip
Side Attach Strips
End View
Console
Insulation
Gasket
Vent
Conduit
Gasket
Handle
Bracket
and Grill
Insulation
Gasket
Vent
Conduit
Gasket
Insulation
Front Panel
