– 30 –
(Continued next page)

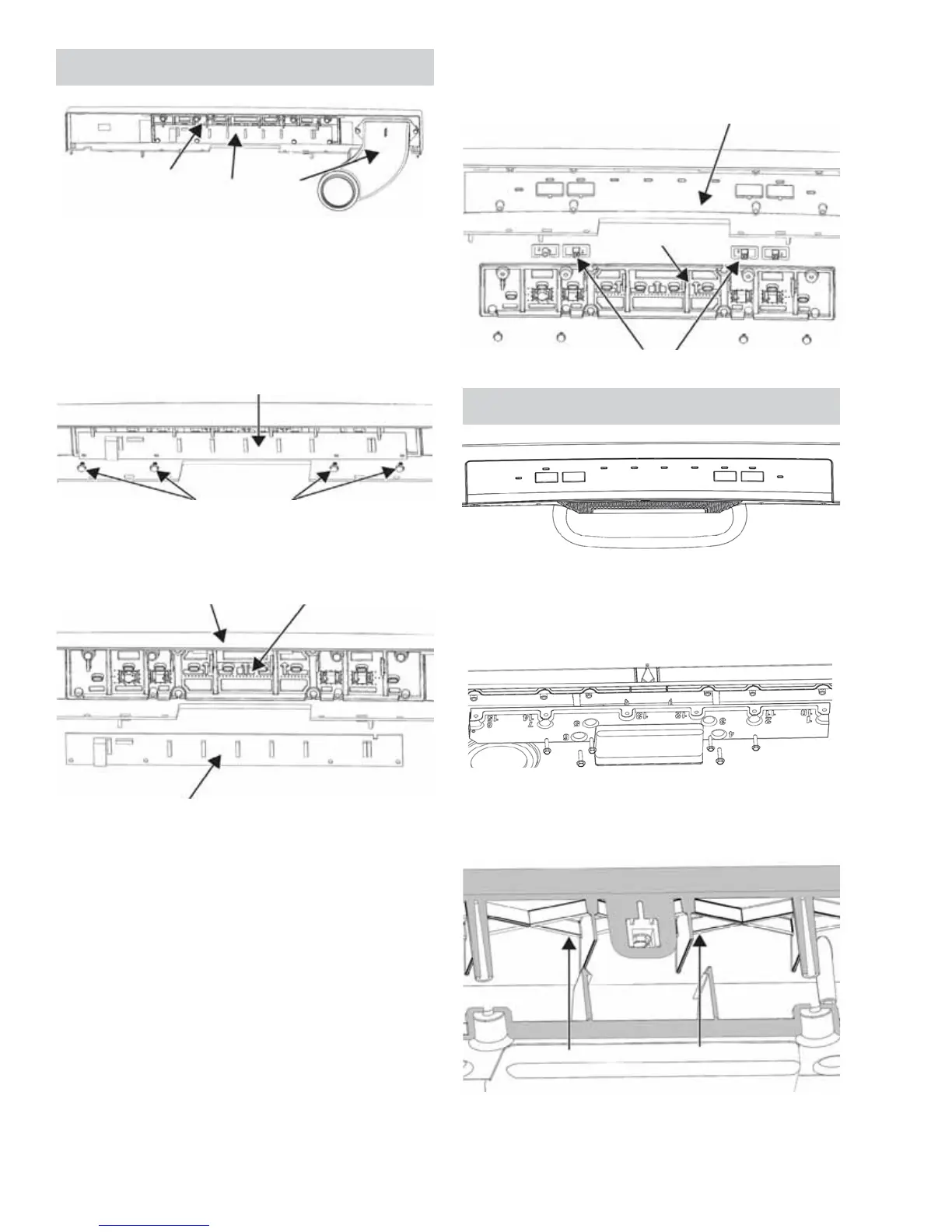

Front Control UI, Light Pipe and Buttons
The front control console must be removed and
separated to access the UI, light pipe and buttons.
UI Removal
• Remove four 1/4 in. hex head screws at the
bottom of the UI Board.
• Tip the bottom of the UI to release from top tabs
• To remove the light pipe assembly, remove four
1/4 in. hex head screws at the top of the light
pipe.
• The Light pipe and buttons may now be
removed
Pocket Handle (Front Control Only)
The pocket handle is attached to the inner door
panel. The front control console must be removed
as previously described in Front Control Console
Removal. Remove six 1/4 in. hex head screws.
The pocket handle is clipped to the plastic inner door
and on the adapter of the SS inner doors.
Front Console
Light Pipe Assembly
UI
Front Console
Buttons
Light Pipe
Light Pipe
UI
Vent
Conduit
Four 1/4 in. hex
head screws
UI
To Next Page
