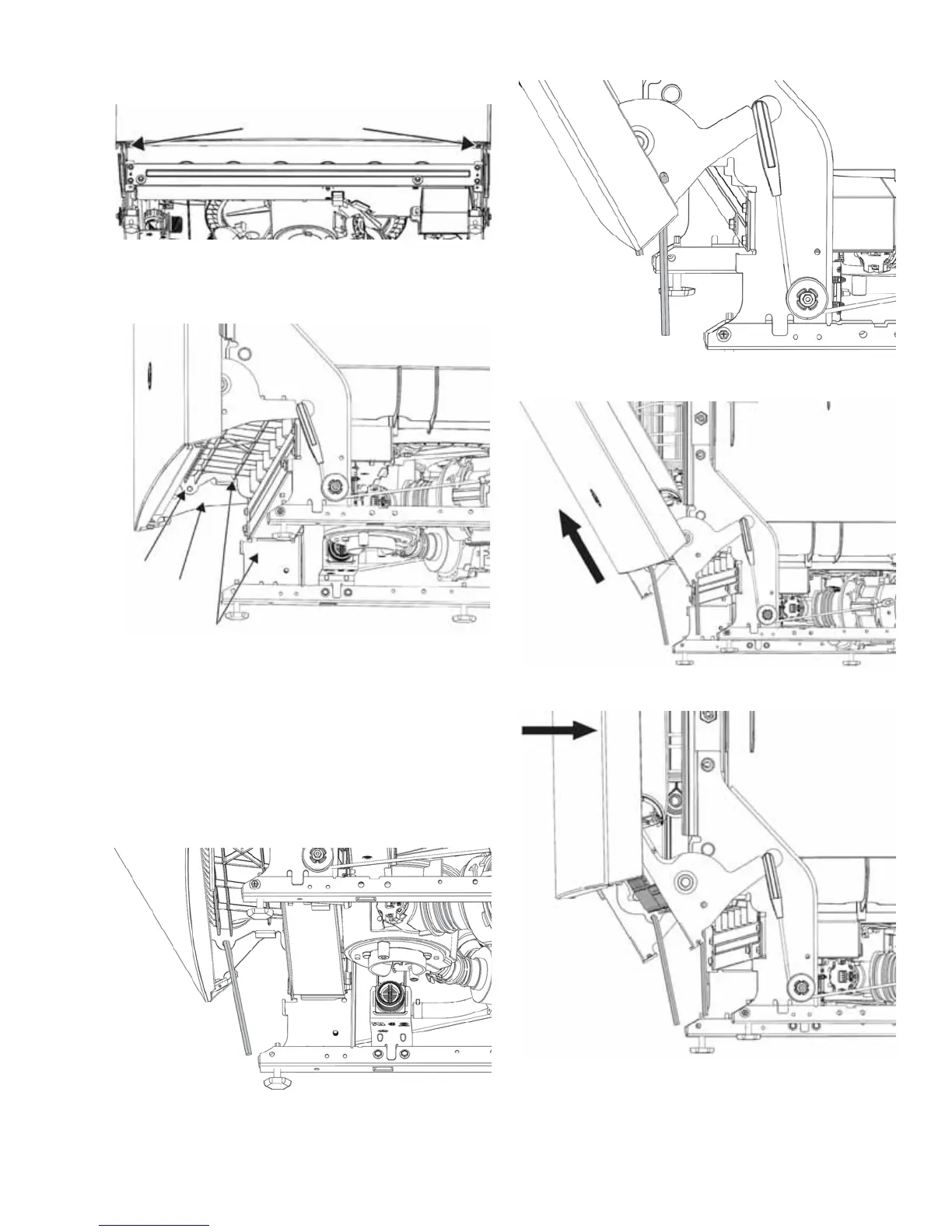

5. Remove two 1/4 in. hex head screws at the
bottom of the door.
6. Locate the hinge pin locking point hole in tabs
RIOHIWDQGULJKWVLGHRIHDFKRȺVHWOHJOHIWVLGH
shown below).
7. Insert a 5/32 Allen wrench (or similar size tool)
through this hole, gradually open door to 30°F
and continue to insert the Allen wrench through
ERWKWKHRȺVHWOHJDQGKLQJHDUPXQWLOORFNLQJ
of the hinge has completed.
TIP8VLQJD´WRROµZLWKDWLJKW¿WZLOOSURGXFHWKH
best results and easier door installation.
8. Repeat the last step on the opposite side.
9. Lift the door up approximately 3 Inches.
10. Tilt the door in (vertical).
Remove two 1/4 in. hex head screws
/HIWVLGHRȺVHWOHJ
Left side
hinge arm
Tab
