03 Product Introduction
User Manual V1.0-2023-10-30

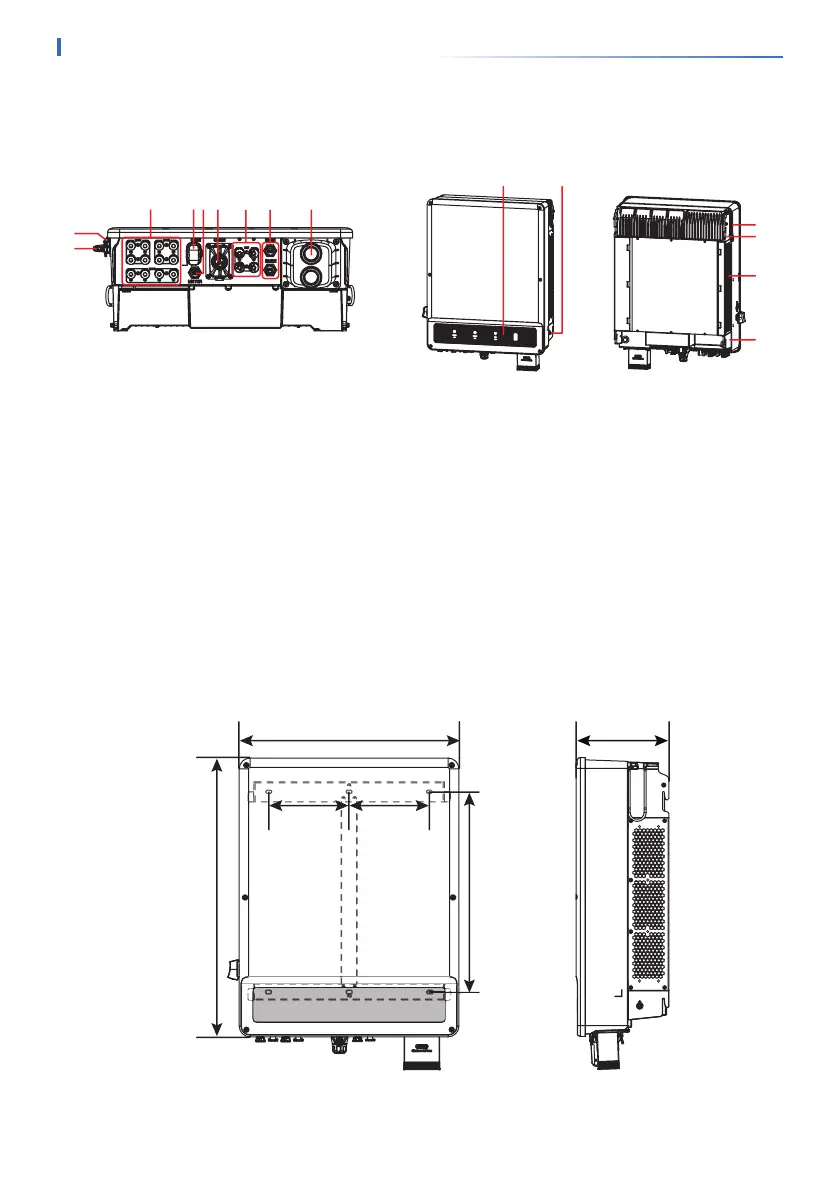

3�5 Appearance
3�5�1 Parts
3�5�2 Dimension
520mm
660mm
500mm
200mm 200mm
220mm
1. DC switch lock hole
[1]
2. DC switch 3.
PV input terminal
(PV+/-)
4.
Communication module
port (COM)
5. METER communication port 6.
Communication port
(COM2)
7.
Battery input terminal
(BAT+/-)
8. BMS communication port 9.
AC output terminal (On-
Grid and Back-Up)
10. Indicators 11. PE terminal 12. Handle
13. Mounting plate 14. Heat Sink
[1]: Only for Australia.
1
2
3 4 5 6 7 8 9
10 11
13
12
14
13
