06 Electrical Connection
User Manual V1.0-2023-10-30

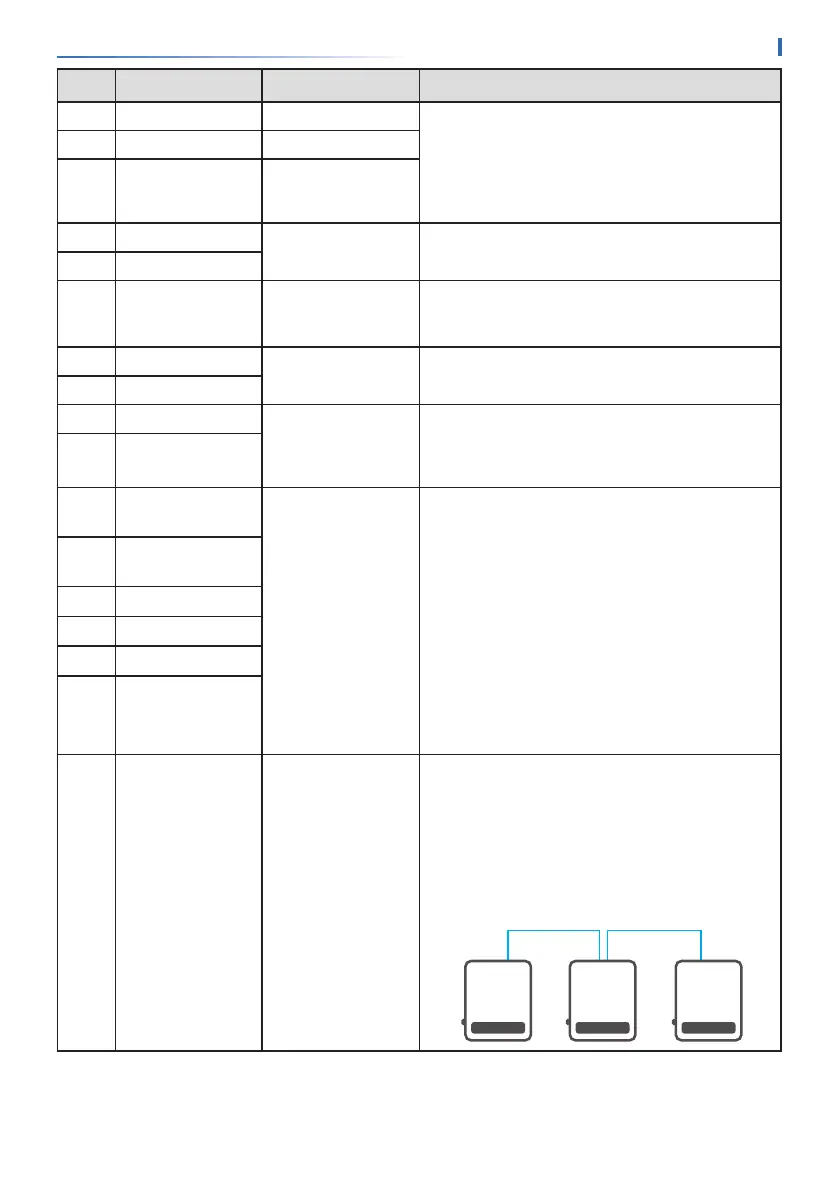

No� Port Denition Function Description
1 DO1+ Dry contact
Optionnal function. The inverter reserves a
dry contact controlling port, which supports
connecting additional
contactors to enable/disable the load. For high
voltage AC230V. PIN2 is reserved for safety
regulations.
2 NC Reserved PIN
3 DO1- Dry contact
4 GND
Power supply
Optionnal function. Supplies power for external
devices.
5 12V_S
6 RSD_12V
Controls the RSD
modules externally.
Reserved. Connects to RSD_12V and 12V_S to
control the RSD module rapidly.
7 GND
Remote shutdown
Optionnal function. Controls the equipment on/
o󰀨 remotely.
8 Remote shutdown
9 DO2+
Dry contact
Optionnal function. The inverter reserves a
dry contact controlling port, which supports
connecting additional contactors to enable/
disable the load.
10 DO2-
11
COM/DRM0 or
REF_1
DRED or RCR
Optionnal function.
• DRED (Demand Response Enabling
Device): the inverter satises the Australian
DERD certication and o󰀨ers DRED signal
controlling ports.
• RCR (Ripple Control Receiver): In Germany
and some other European regions, grid
companies use Ripple Control Receiver
to convert grid dispatching signals into dry
contact mode for transferring. And the power
station receives grid dispatching signals
through dry contact communication mode.
12
REFGEN or
REF_2
13 DRM4/8 or DI_4
14 DRM3/7 or DI_3
15 DRM2/6 or DI_2
16 DRM1/5 or DI_1
17 EMS/PAR
EMS communication
or parallel
connection port
• Optionnal function. EMS communication port:
connects with the third party device. The third
party device is not supported in a parallel
system.
• Optionnal function. PAR communication port:
serves as the communication port for the
inverter parallelizing as shown below.
PARPAR
