3.3.3 Connecting internal battery pack (for 5/6 kVA models)
The internal battery pack is shipped separately from the UPS cabinet. It has to be mounted inside the
unit after UPS installation. Please proceed with the following steps:
1. Unpack the battery pack from
its carton box.
2. Place the battery pack in front
of the battery compartment,
aligning the rear connector to
the front panel (2, fig. 3.3.3.a).
3. Slide the battery pack into the
battery compartment until the
rear connector is plugged with
the UPS internal DC socket.
4. Fix the battery cover by
tightening screws
(4, fig. 3.3.3.b).
5. Mount the front panels by
pushing the plastic part into
the appropriate holes
(5, fig. 3.3.3.c).
6. Proceed with the UPS
preparation.

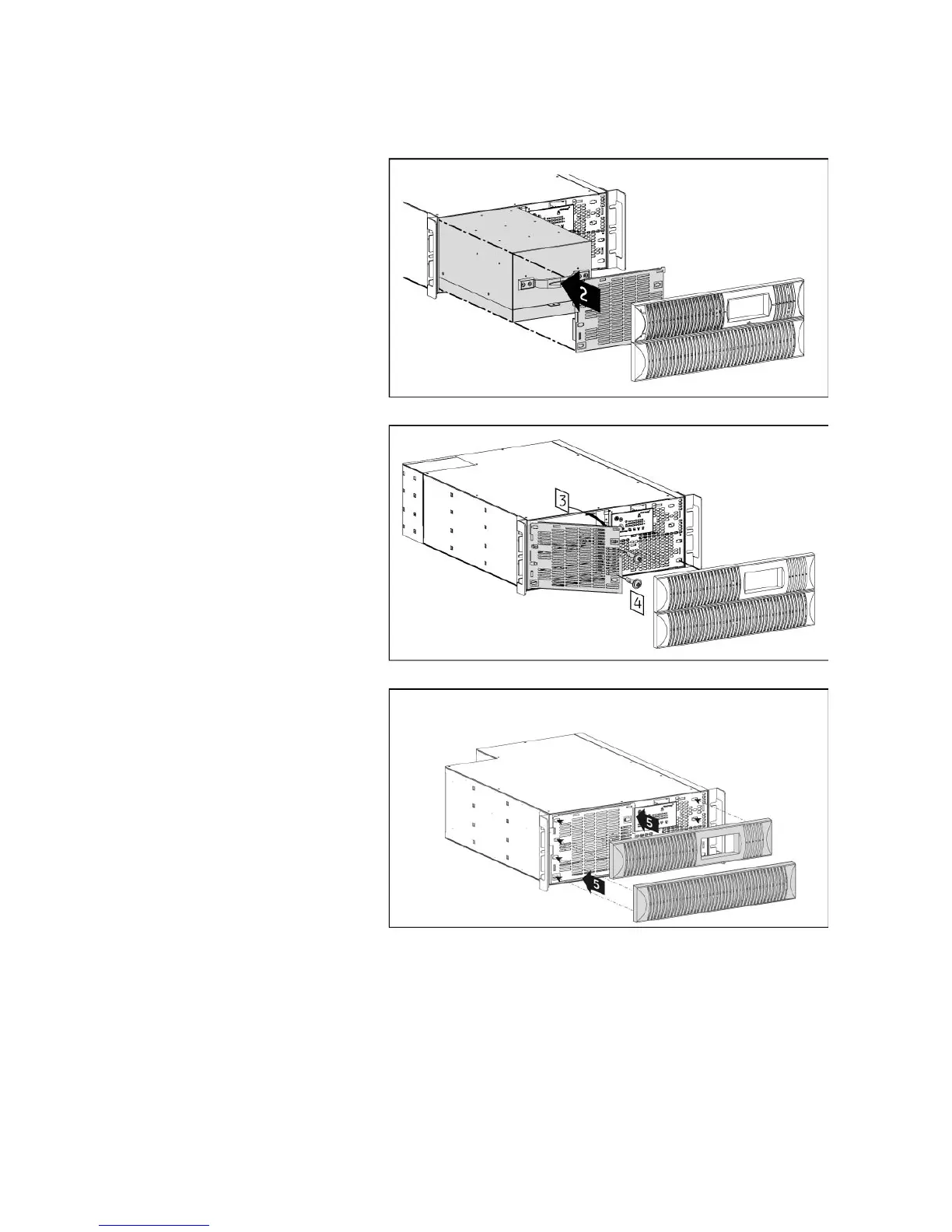

fig. 3.3.3.a
fig. 3.3.3.b
fig. 3.3.3.c
5/6 kVA
5/6 kVA
5/6 kVA
modifications reserved 11 User manual GT Series 5/6/8/10 kVA UPS 1.0 (US)
