Installation Instructions
8
CONNECTING A GAS DRYER (skip for electric dryers) (cont.)

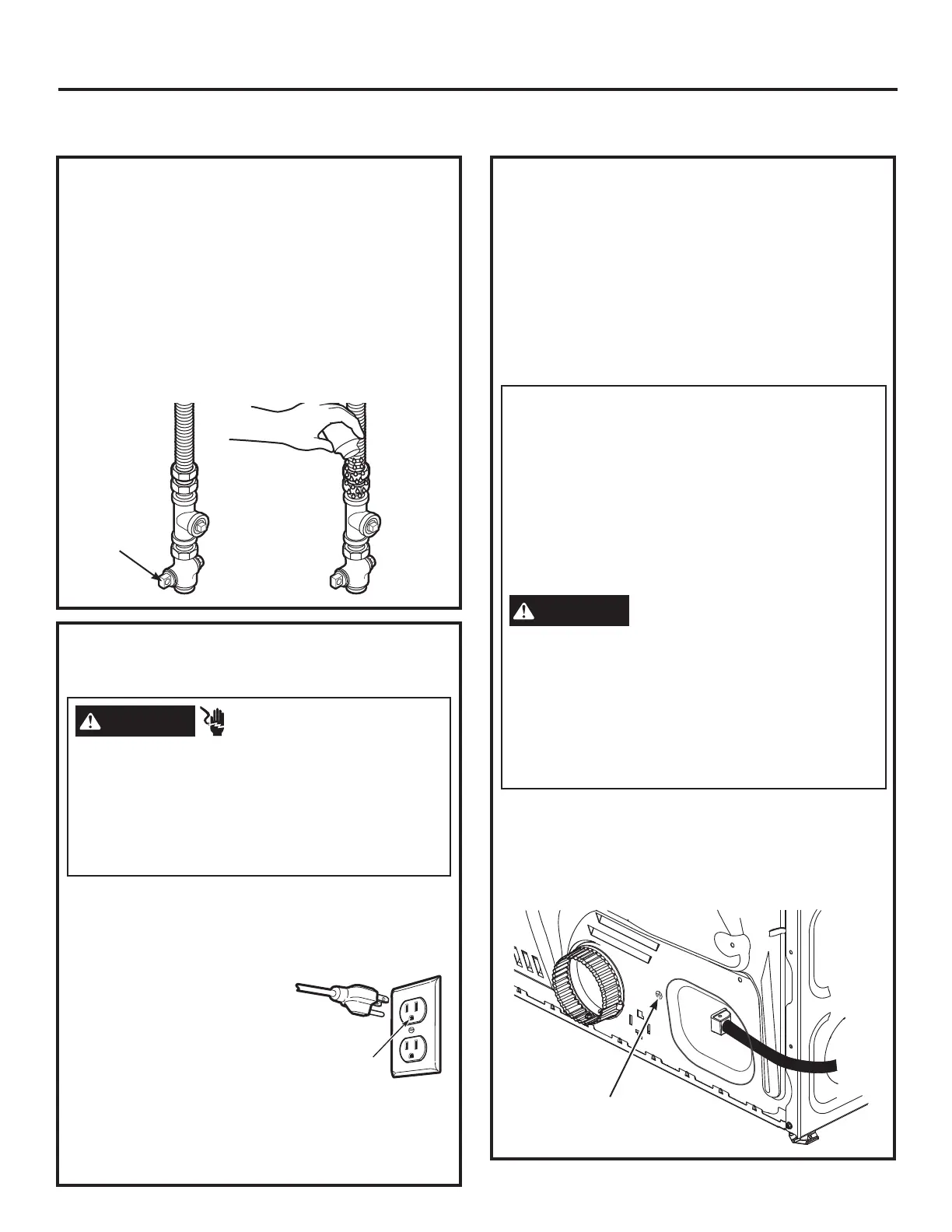

TEST FOR LEAKS
Never use an open flame to test for gas leaks.
Check all connections for leaks with soapy solution
or equivalent.
Apply a soap solution. The leak test solution must
not contain ammonia, which could cause damage
to the brass fittings.
If leaks are found, close the valve, retighten the
joint and repeat the soap test.
Open Gas
Valve
Ground
Screw
ELECTRICAL CONNECTION
INFORMATION FOR GAS DRYERS (cont.)
ELECTRICAL CONNECTION
INFORMATION FOR GAS DRYERS
- Electrical Shock Hazard
WARNING
Plug into a grounded 3 prong outlet.
DO NOT remove ground prong.
DO NOT use an adapter.
DO NOT use an extension cord.
Failure to do so can result in death, fire or electrical
shock.
• Circuit – Individual properly polarized and grounded
15 or 20 amp circuit breaker or time-delay fuse.
•
Power Supply – 2-wire plus ground, 120 Volt,
single phase, 60 Hz, alternating current.
•
Outlet Receptacle –
Properly grounded
3-prong receptacle to
be located so the power
cord is accessible when
the dryer is in an installed
position. If a 2-prong
receptacle is present, it
is the owner’s responsibility to have a licensed
electrician replace it with a properly grounded
3-prong grounding type receptacle.
Ensure proper
ground exists
before use.
GROUNDING INSTRUCTIONS
This dryer must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This dryer uses
a cord having an equipment-grounding conductor
and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed
and grounded in accordance with all local codes
and ordinances.
WARNING
Improper connection of the
equipment-grounding conductor
can result in a risk of electric shock. Check with a
qualified electrician, or service representative or
personnel, if you are in doubt as to whether the
appliance is properly grounded. DO NOT modify the
plug on the power supply cord. If it will not fit the
outlet, have a proper outlet installed by a qualified
electrician.
SAVE THESE INSTRUCTIONS
• Dryer must be electrically grounded in
accordance with local codes and ordinances,
or in the absence of local codes, with the latest
edition of the NATIONAL ELECTRICAL CODE,
ANSI/NFPA NO. 70 or CANADIAN ELECTRICAL
CODE, CSA C22.1. Check with a licensed
electrician if you are not sure that the dryer is
properly grounded.
•
If required by local codes, an external 18 gauge
or larger copper ground wire (not provided)
may be added. Attach to dryer cabinet with a
#8-18 x ½” sheet metal screw (available at any
hardware store) to rear of dryer as illustrated.
