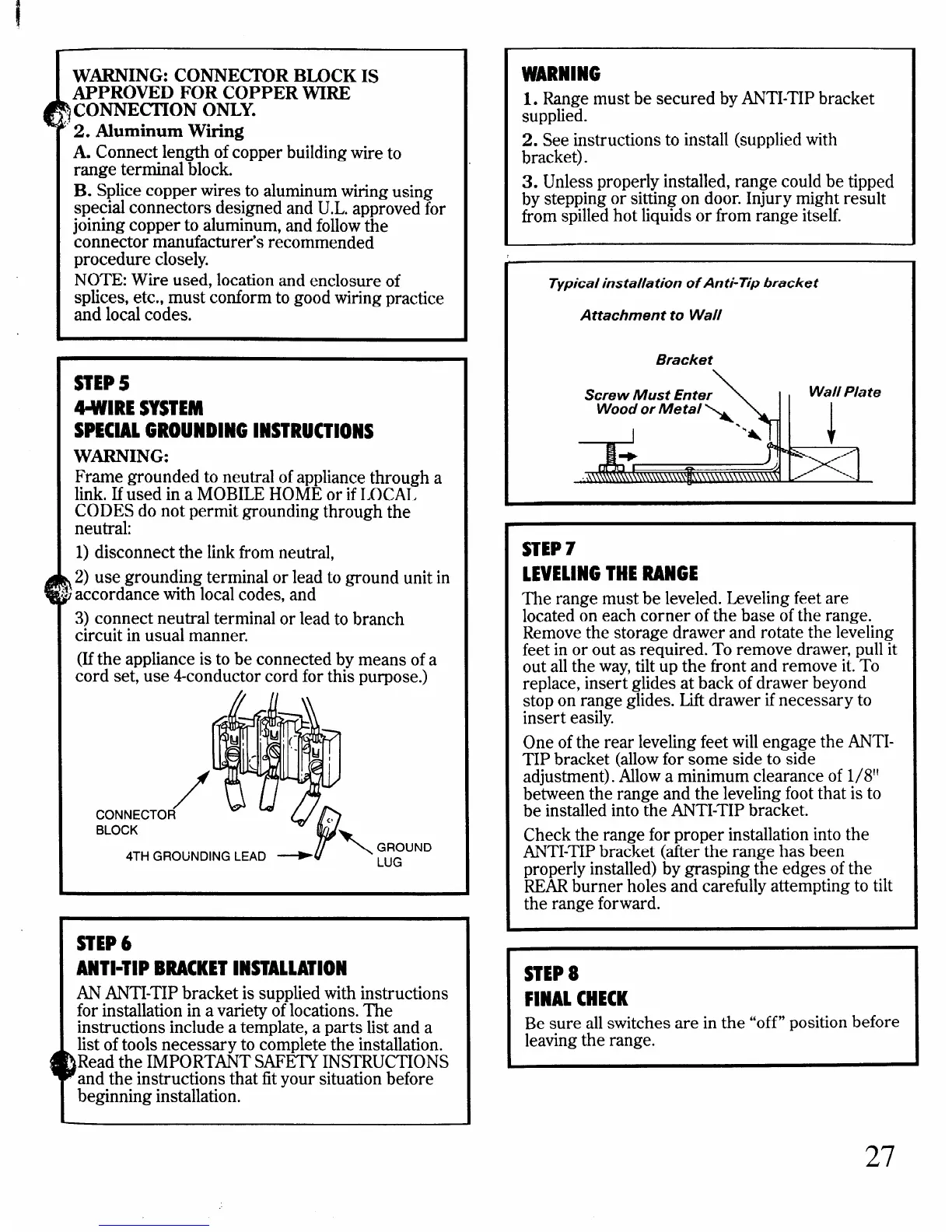

J?
WARNING: CONNECTORBLOCKIS
APPROVED FOR COPPER WIRE
. ~CONNECTION ONLY.
1
““’2. Aluminum Wiring
A. Connect length of copper building wire to
range terminal block.
B. Splicecopper wires to aluminum wiring
using
special connectors designed and
U.L.approved for
joining copper to aluminum, and followthe
connector manufacturer’s recommended
procedure closely.
NOTE: Wire used, location and enclosure of
splices, etc., must conform to good wiring practice
and local codes.
STEP 5
WIRE SYSTEM
SPECIAL GROUNDING INSTRUCTIONS
WARNING:
Frame grounded to neutral of appliance through a
link. Ifused in a MOBILE HOME or ifLOCAL
CODES do not permit grounding through the
neutral:
1) disconnect the link from neutral,
2) use grounding terminal or lead to ground unit in
accordance with local codes, and
3) connect neutral terminal or lead to branch
circuit in usual manner.
(Ifthe appliance is to be connected by means of a
cord set, use 4-conductor cord for this purpose.)
/
CONNECTOR
BLOCK
4TH GROUNDING LEAD ~~
\
GROUND
LUG
STEP 6
ANTI-TIP BRACKET INSTALLATION
AN ANTI-TIPbracket is supplied with instructions
for installation in a variety oflocations. The
instructions include a template, a parts list and a
list of tools necessary to complete the installation.
]Read the IMPORTANTSAFETYINSTRUCTIONS
and the instructions that fityour situation before
beginning installation.
WARNING
1. Rangemust be secured by ANTI-TIPbracket
supplied.
2. See instructions to install (supplied with
bracket).
3. Unless properly installed, range could be tipped
by stepping or sitting on door. Injury might result
fi-omspilled hot liquids or from range itself.
Typical installation of Anti-Tip bracket
Attachment to Wall
Bracket
\
Screw Must Enter
I
Wood or Metal
“x
STEP 7
LEVELING THE RANGE
The range must be leveled. Leveling feet are
located on each corner of the base of the range.
Remove the storage drawer and rotate the leveling
feet in or out as required. To remove drawer, pull it
out all the way,tilt up the front and remove it.To
replace, insert glides at back of drawer beyond
stop on range glides. Liftdrawer ifnecessary to
insert easily.
One of the rear leveling feet will engage the ANTI-
TIP bracket (allowfor some side to side
adjustment). Allowa minimum clearance of 1/8”
between the range and the leveling foot that is to
be installed into the ANTI-TIPbracket.
Check the range for proper installation into the
ANTI-TIPbracket (after the range has been
properly installed) by grasping the edges of the
REARburner holes and carefully attempting to tilt
the range forward.
STEP 8
FINAL CHECK
Be sure all switches are in the “off”position before
leaving the range.
27
