INSTALLATION INSTRUCTIONS
2. Aluminum Wiring
A. Connect length
of
copper building wire to
range terminal block.
B. Splice copper wires to aluminum wiring using
special connectors designed and
U.L.
approved
for joining copper
to
aluminum, and follow the
connector manufacturer’s recommended
procedure closely.
NOTE: Wire used, location and enclosure
of splices, etc., must conform to good wiring
practice and local codes.
STEP 5
4-WIRE SYSTEM
SPECIAL GROUNDING INSTRUCTIONS
WARNING:
Frame grounded to neutral of appliance
through a link. If used in a
MOBILE
HOME or
if LOCAL
CODES
do not permit grounding
through the neutral:
- -
—
1) disconnect the link from neutral,
z)
use grounding terminal or lead to ground
unit in accordance with local codes, and
3) connect neutral terminal
or
lead to branch
circuit in usual manner.
(If the appliance is to be connected by
means of a cord set, use 4-conductor cord
for this purpose.)
,,
,,
,,
CONNECTOR
BLOCK
4TH GROUNDING LEAD
~
u
GROUND
LUG
STEP 6
ANTI-TIP BRACKET INSTALLATION
AN
ANTI-TIP bracket is supplied with instructions
for installation in a variety of locations. The
instructions include a template, a parts list and a
list of tools necessary
to
complete the installation.
Read the IMPORTANT SAFEIY INSTRUCTIONS
and the instructions that
fit
your situation before
beginning installation.

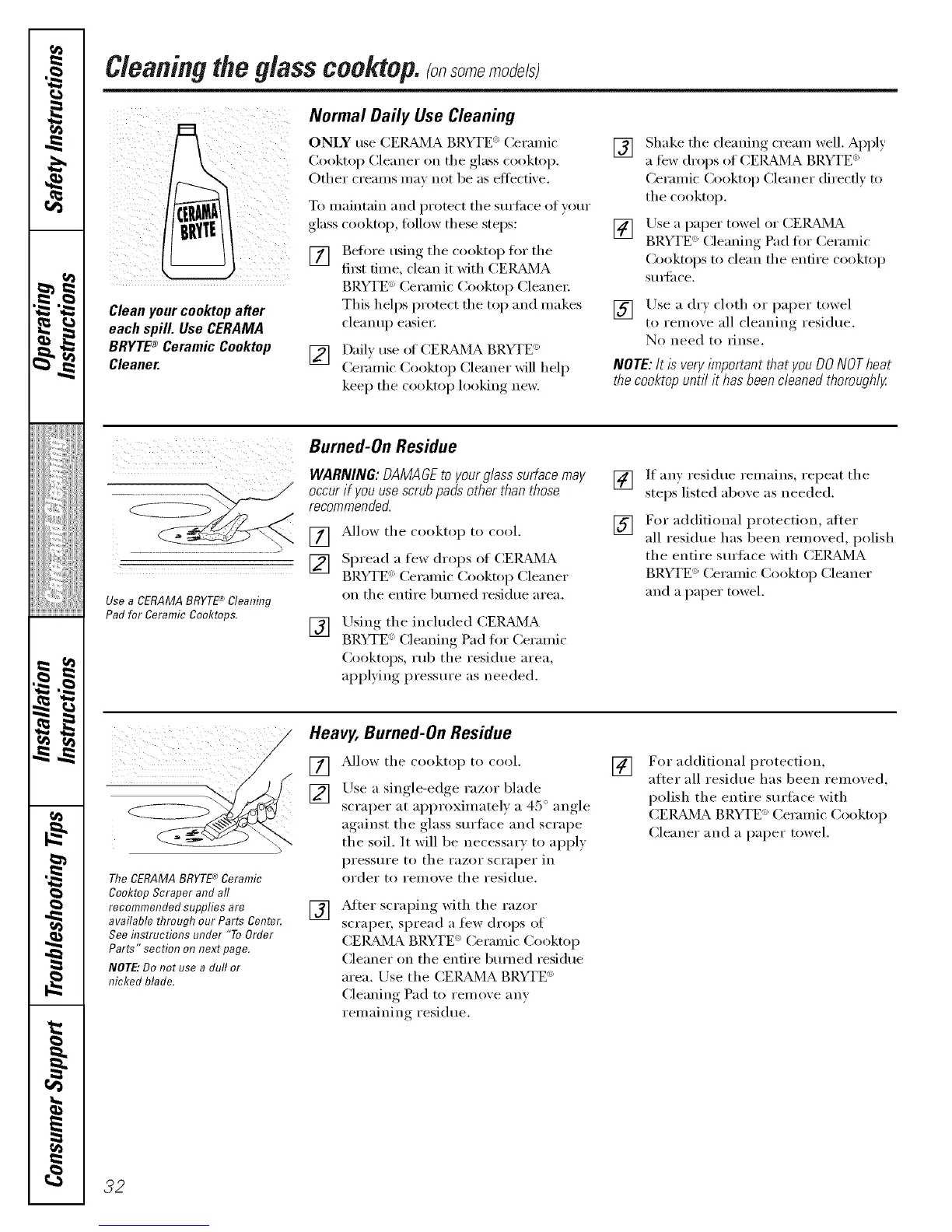

32
WARNING
1. Range must be secured by ANTI-TIP bracket
supplied.
2. See instructions to install (supplied with
bracket).
3. Unless properly installed, range could be
tipped by stepping or sitting on door. Injury
might result from spilled hot liquids or from
range itself.

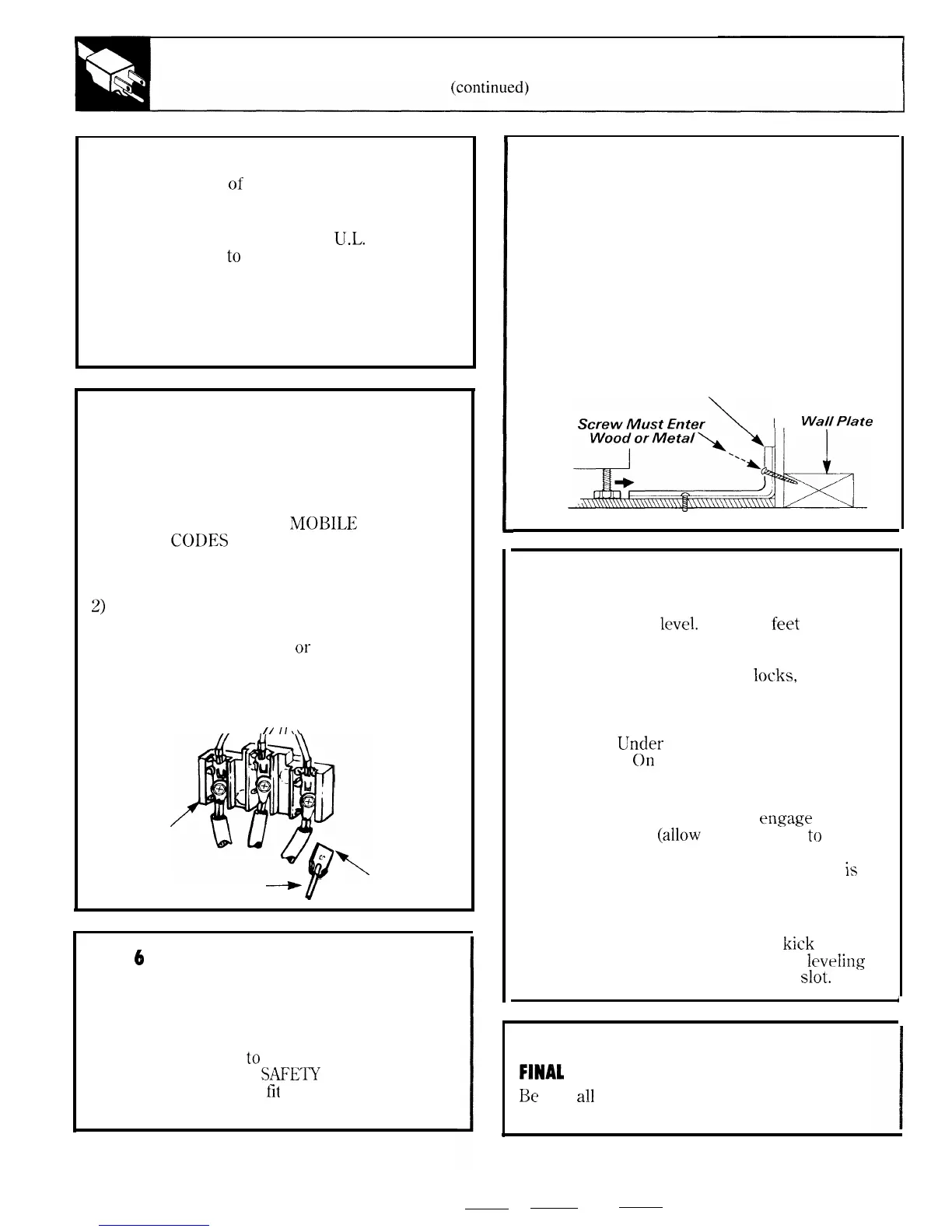

Typical installation of Anti-Tip bracket
Attachment to Wall
Bracket
, Wal/Plate
STEP 7
LEVELING THE RANGE
The range must be
level.
Leveling
feet
are located
at each corner of the base of the rang-e. Remove
the storage drawer or kick panel (depending on
your model) and using channel
locks,
rotate the
leveling feet in and out as required to level the
range. (For instructions on how to remove and
replace the storage drawer or the kick panel, see
the Cleaning
b’nder
the Range section in Care
and Cleaning.)
On
some models, there are plastic
covers which may be removed for easy
adjustment (just squeeze and pull).
One of the rear leveling feet will
engage the
ANTI-TIP bracket
(allow
for some side
to
side
adjustment). Allow a minimum clearance of 1/8”
between the range and the leveling foot that
is
to
be installed into the ANTI-TIP bracket.
Check the range for proper installation into the
ANTI-TIP bracket (after the range has been
properly installed) by removing the
kick
panel or
storage drawer and inspecting the rear
leveling
leg. Make sure it fits securely into the
slot.
i
STEP 8
FINAL
CHECK
Be
sure
all
switches are in the OFF position
before leaving the range.
