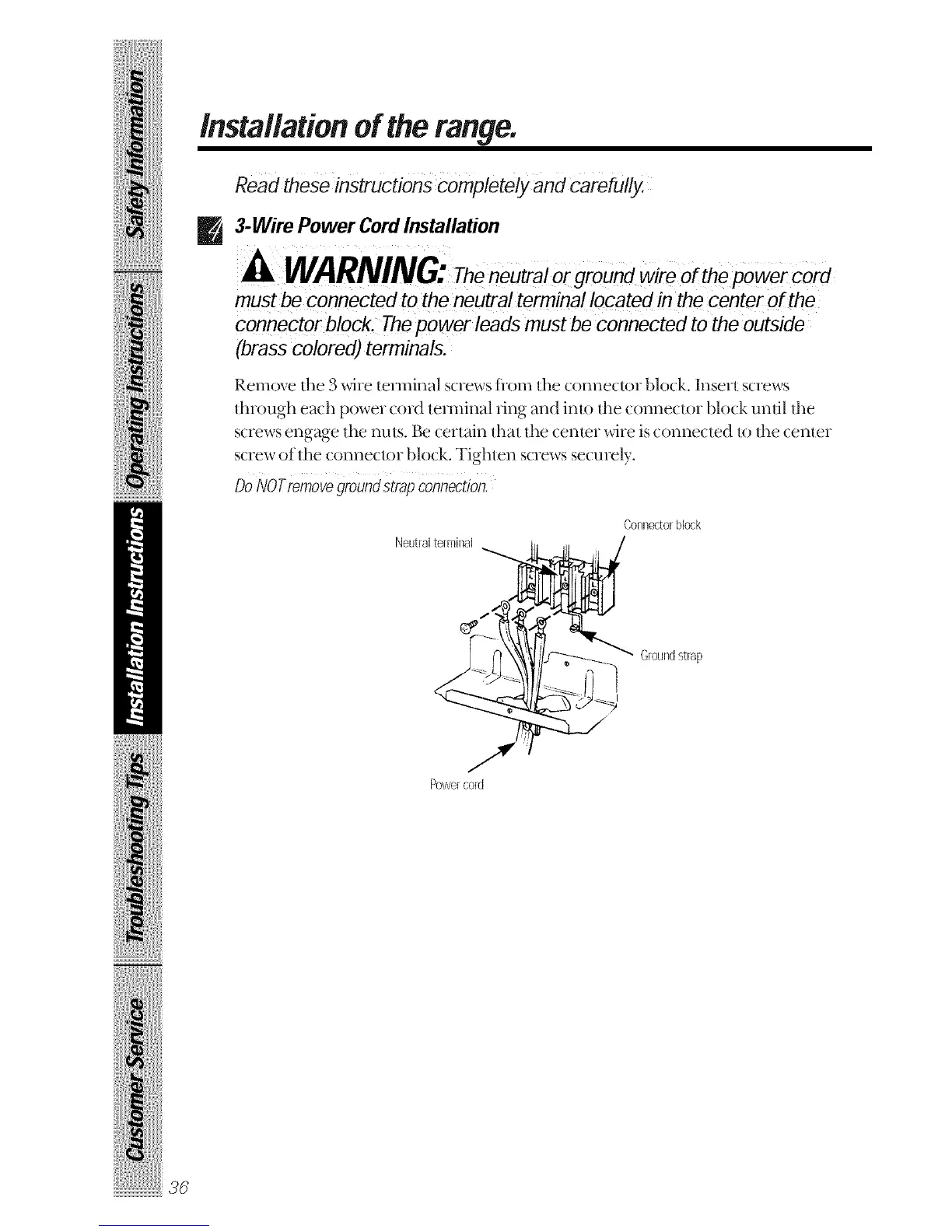

Installationoftherange.
E
Read these instructions completely and carefully.
3-Wire Power CordInstallation
-- " "--" "" "_WANNINL_: Theneutral or ground wire of the power cord
must be connected to the neutral terminal located in the center of the
connector block. The power leads must be connected to the outside
(brass colored) terminals.
Remove the 3 wire terminal screws flom the connector block. Insert screws
fl_rough each power cord terminal ring and into the connector block until the
screws engage the nuts. Be certain fl_altim center wire is connected 1ofl_e cenler
screw of the connector block. Tighten screws securely.
DoNOTremovegroundstrapconnection.
Neutralterminal
J
Powercord
Connectorblock
(;roundstrap
