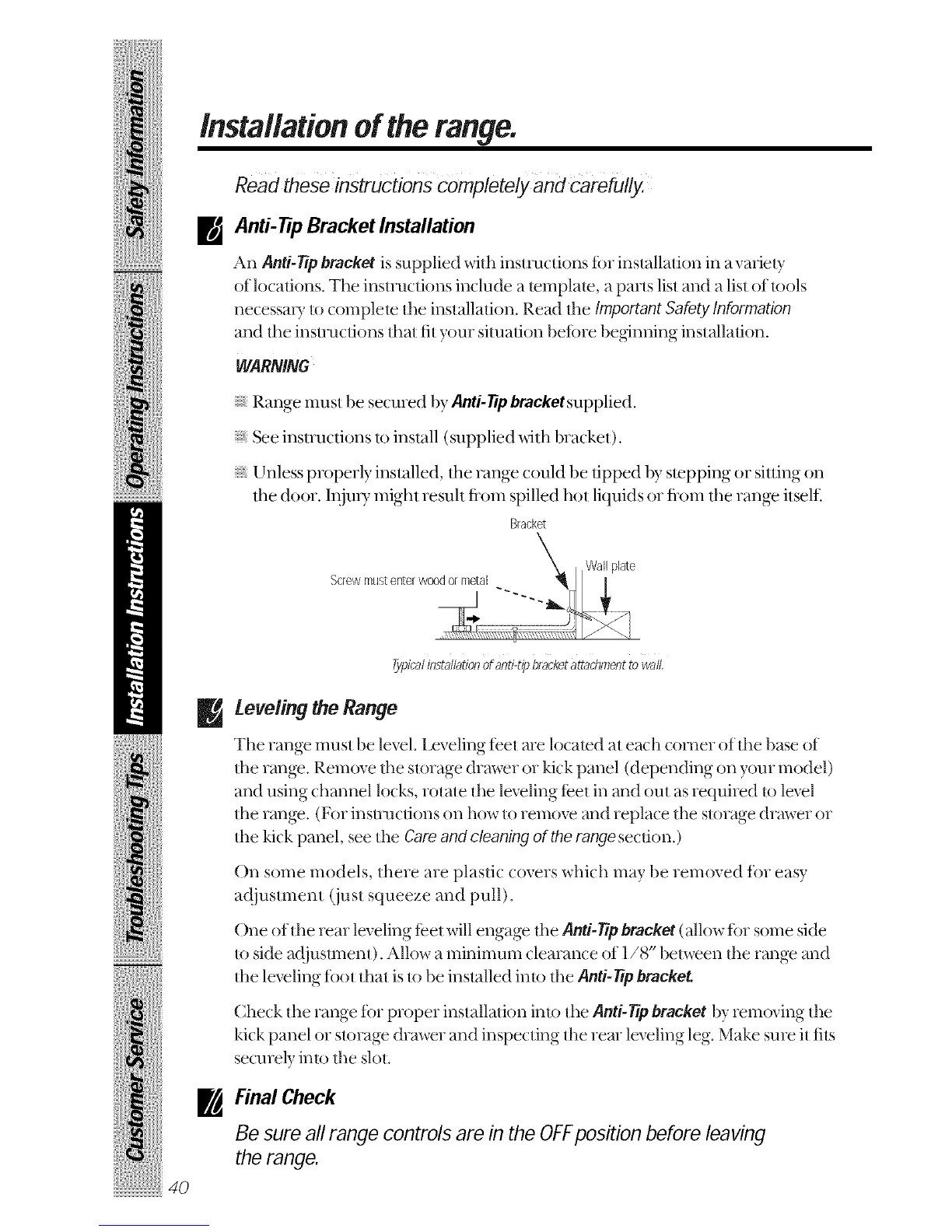

Installationoftherange.
Read these instructions completely and carefully.
E Anti-Tip Bracket Installation
An Anti-Tip bracketis supplied with instructions for installation in a variety
of locations. The insuuctions include a template, a parts list and a list of tools
necessaU twcomplete the installation. Read the ImportantSafetyInformation
and the insuuctions that tit your situation betbre beginning installation.
WARNING
Range must be secured by Anti-Tipbracketsupplied.
_e instnlctions to install (supplied with bracket).
Unless properly installed, the range could be tipped by stepping or sluing on
the door. Inju U might resuh fiom spilled hot liquids or fiom the range itseli_
Bracket
E
m
40
TypicalinstallationOfand-tipbracketattad*mentto wall.
Leveling the Range
The rang_ must be level. Leveling feet are locamd at each corner of the base of
the range. Remove the storage drawer or kick panel (depending on your model)
and using channel locks, rotate the leveling feet in and out as required to level
the range. (For insuuctions on how to remove and replace the storage drawer or
the kick panel, seethe Careand cleaning of the rangesection.)
On some models, there are plastic covers which may be removed for easy
adjustment (just squeeze and pull).
One of the rear leveling t(et will engage the Anti-Tip bracket (allow for some side
to side adjustment). Allow a minimum clearance of 1/8" betsveen the range and
the leveling foot that is to be installed into the Anti-Tip bracket.
Check the range for proper installation into the Anti-Tip bracket by removing the
kick panel or storage drawer and inspecting the rein leveling leg. Make sure it fits
securely into the slot.
Final Check
Be sure all range controls are in the OFFposition before leaving
the range.
