30-in. Double Wall Oven

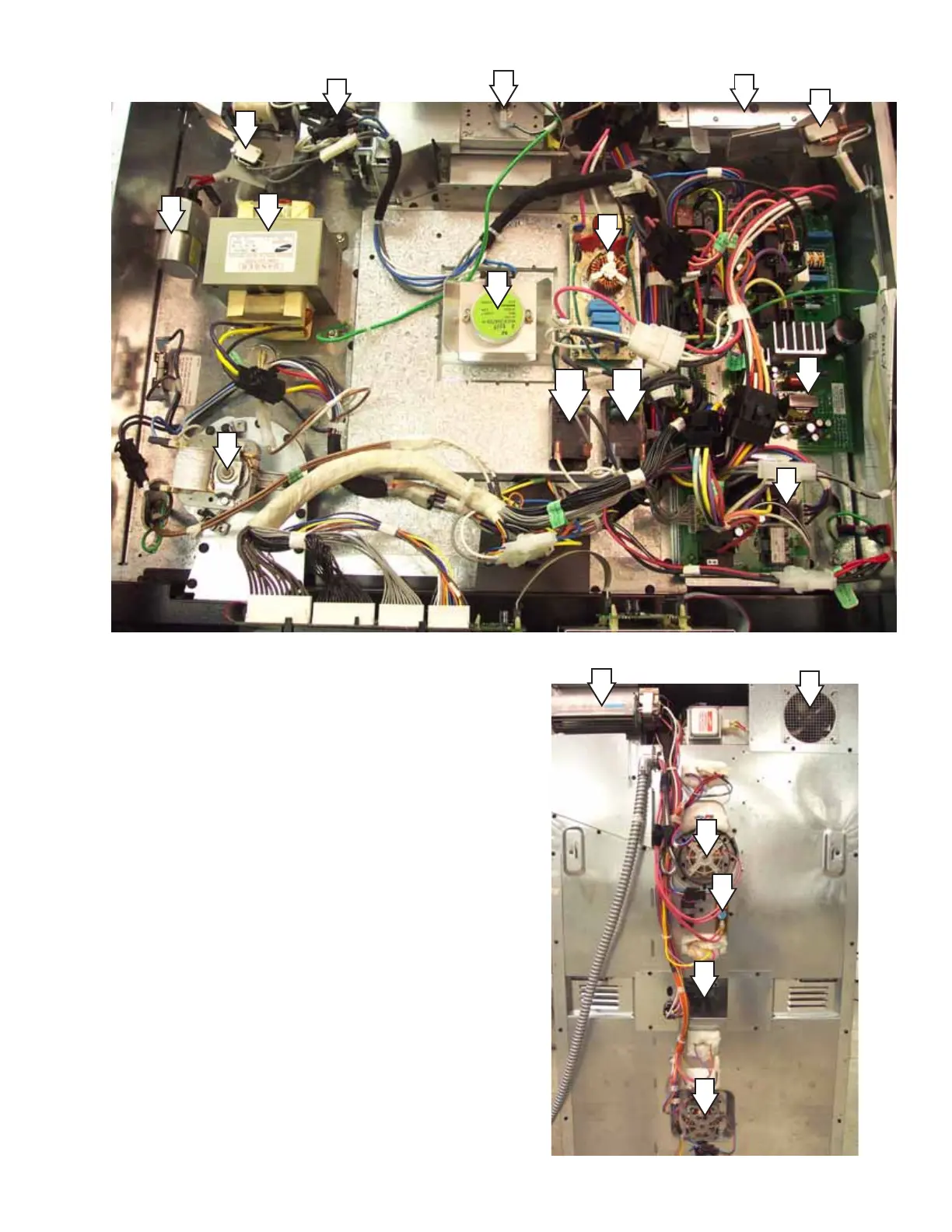

1 - Magnetron Thermal TCO (Thermal Cutout)
2 - High Voltage Transformer
3 - Magnetron Cooling Fan
4 - High Voltage Capacitor
5 - Left Sail Switch
6 - Stirrer Motor
7 - EMI Board
8 - (a) R2 and (b) R1 Sail Switch Relay
9 - Right Sail Switch
10 - Oven Vent Fan
11 - High Voltage Transformer (HVT) Fan
12 - Right Cooling Fan
13 - Convection Fan
14 - High Limit Thermal One-Shot (TCO)
15 - Lower Oven Relay Board
16 - Lower Oven Cooling Fan
17 - Main Power Board (MPB)
6
2
4
9
12
3
1
10
5
7
13
13
14
12
11
8a 8b
15
16
17
Rear View
