GE JS998 Series User Manual

– 12 –
1 - Magnetron Thermal TCO (Thermal Cutout)
2 - High Voltage Transformer
3 - Magnetron Cooling Fan
4 - High Voltage Capacitor
5 - Left Sail Switch
6 - Stirrer Motor
7 - EMI Filter Board
8 - R1 Sail Switch Relay
9 - Right Sail Switch
10 - Oven Vent Fan
11 - High Voltage Transformer (HVT) Fan
12 - Right Cooling Fan
13 - Convection Fan
14 - High Limit Thermal One-Shot (TCO)
15 - Main Power Board (MPB)
30-in. Single Wall Oven
11
6
2
4
9
12
3
1
10
12
13
Rear View
11
5
14
7
8

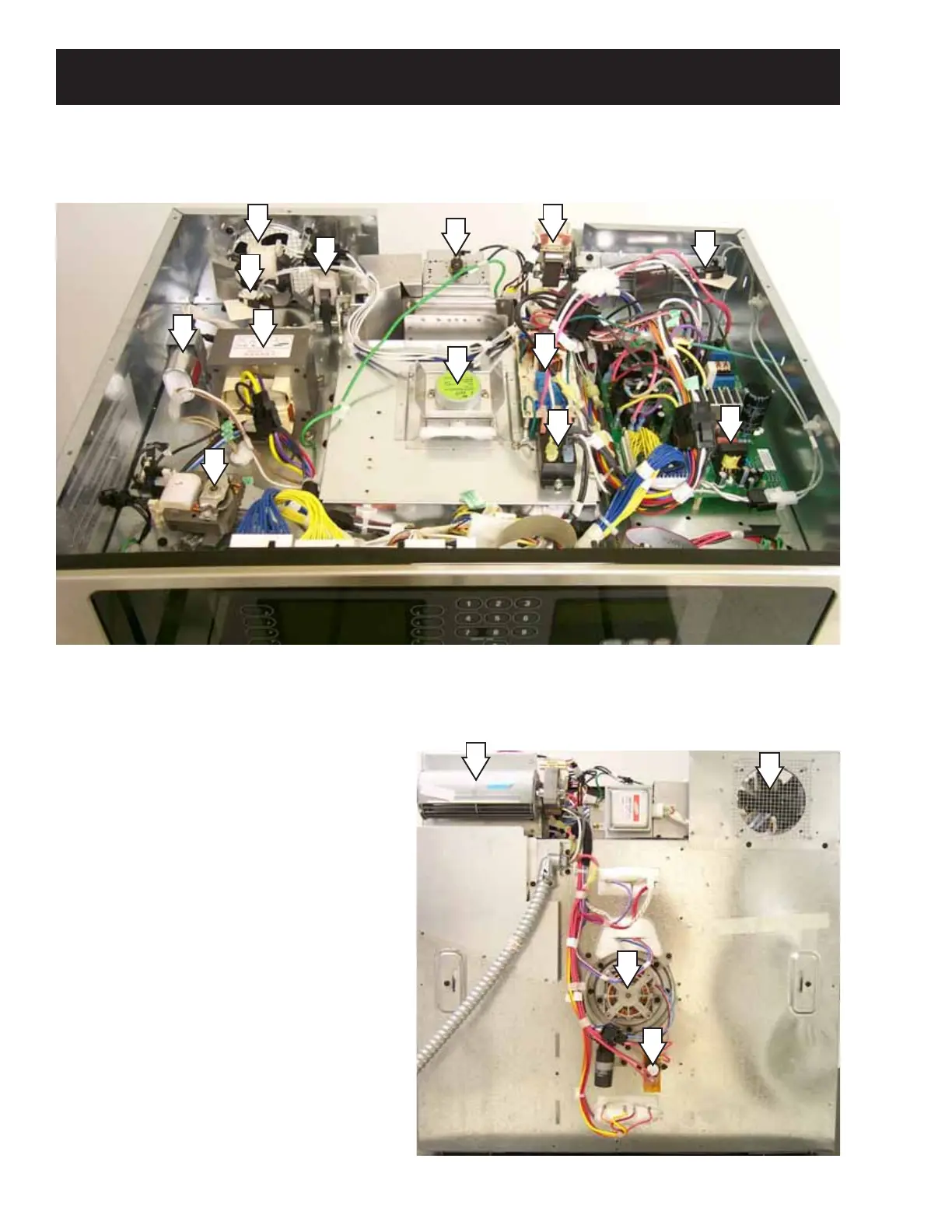

Component Locator Views
15

GE JS998 Series Specifications

General

Brand	GE
Model	JS998 Series
Category	Oven
Language	English
