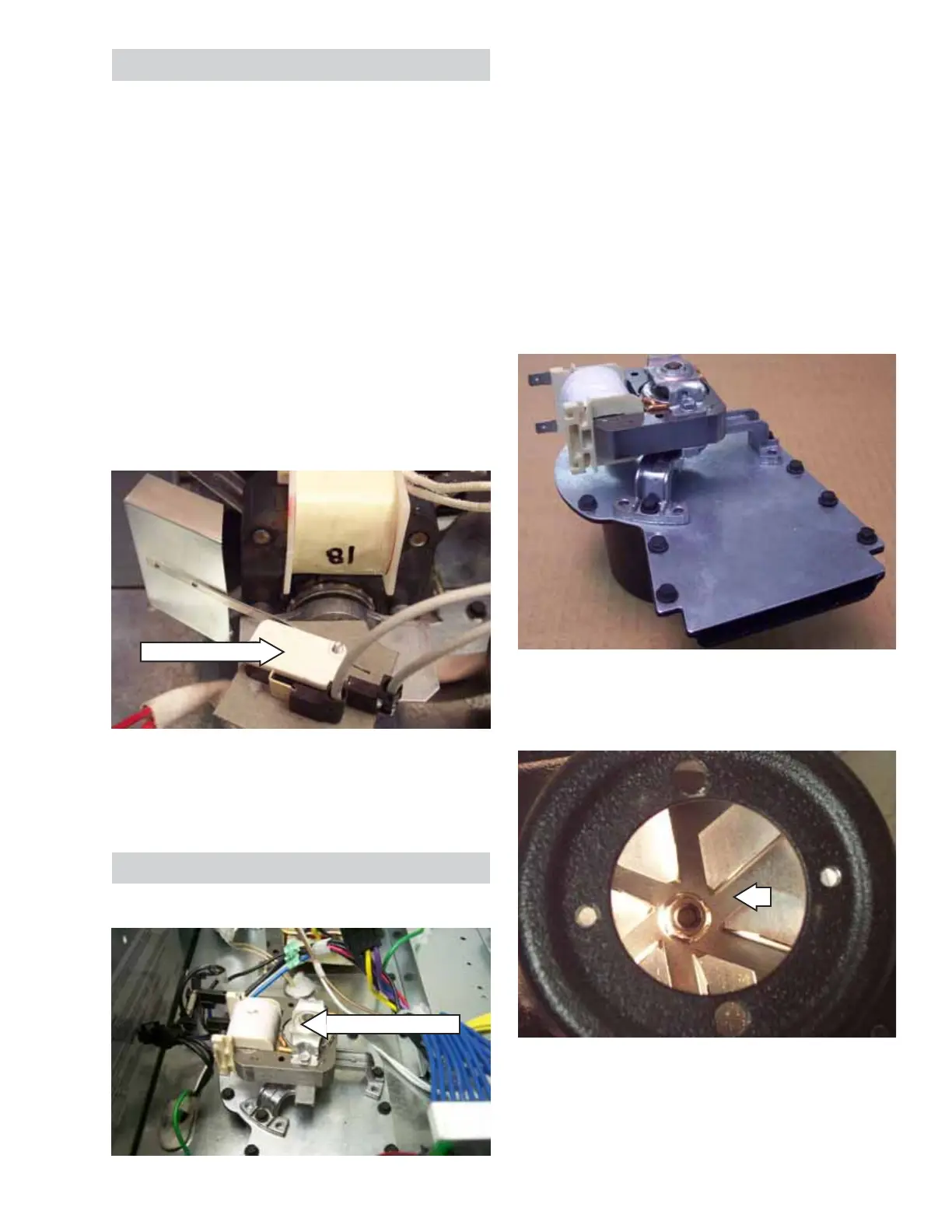

Vent Fan Blade
Oven Vent Fan
The oven is vented above the left side of the door.
• It is normal for steam to come out of this vent
and the area around the vent to become hot
during oven use. It is important to keep the
vent unblocked to ensure proper air
circulation.
• The oven vent fan motor has an approximate
resistance value of 20 Ω and rotates
clockwise as viewed from the top.
• To remove the vent fan assembly, remove the
four
1
/
4
-in. hex nuts from inside the oven
cavity.
Vent Fan Motor
Vent Fan
Sail Switches (Double and Single Wall Ovens)
• The left and right sail switches are normally
open limit switches located at the rear of the
component compartment in front of the
cooling fans.
• The sail switches monitor the presence of the
airstream from the fans. If either fan (HVT fan
or right cooling fan) malfunctions, the
applicable sail switch opens and opens relay
R1, which disables power to the microwave
HVT and oven cooking elements. In addition, if
the right cooling fan malfunctions on the
double oven, the right sail switch opens and
opens relay R2, which disables the lower
oven cooking elements.
• The relay coil resistance is approximately
920 Ω.
Left Sail Switch
• Both R1 relay and R2 relay (double oven only)
are double pole single throw relays. Both
contacts are used on R1, only one contact is
used on R2.
Note: All vent fan parts are available separately.
The vent fan blade nut has right-hand threads.
Turn nut counterclockwise to remove.
