– 19 –
Trivection
TM
Convection Fan Motor
The convection fan motor is located on the back
of the oven.
The convection fan motor has approximate
resistance values between the following wires:
• Red and Blue: 118 Ω
• Red and Black: 58 Ω
• Blue and Black: 58 Ω
Wall Oven Shown
Motor Capacitor
Trivection
TM

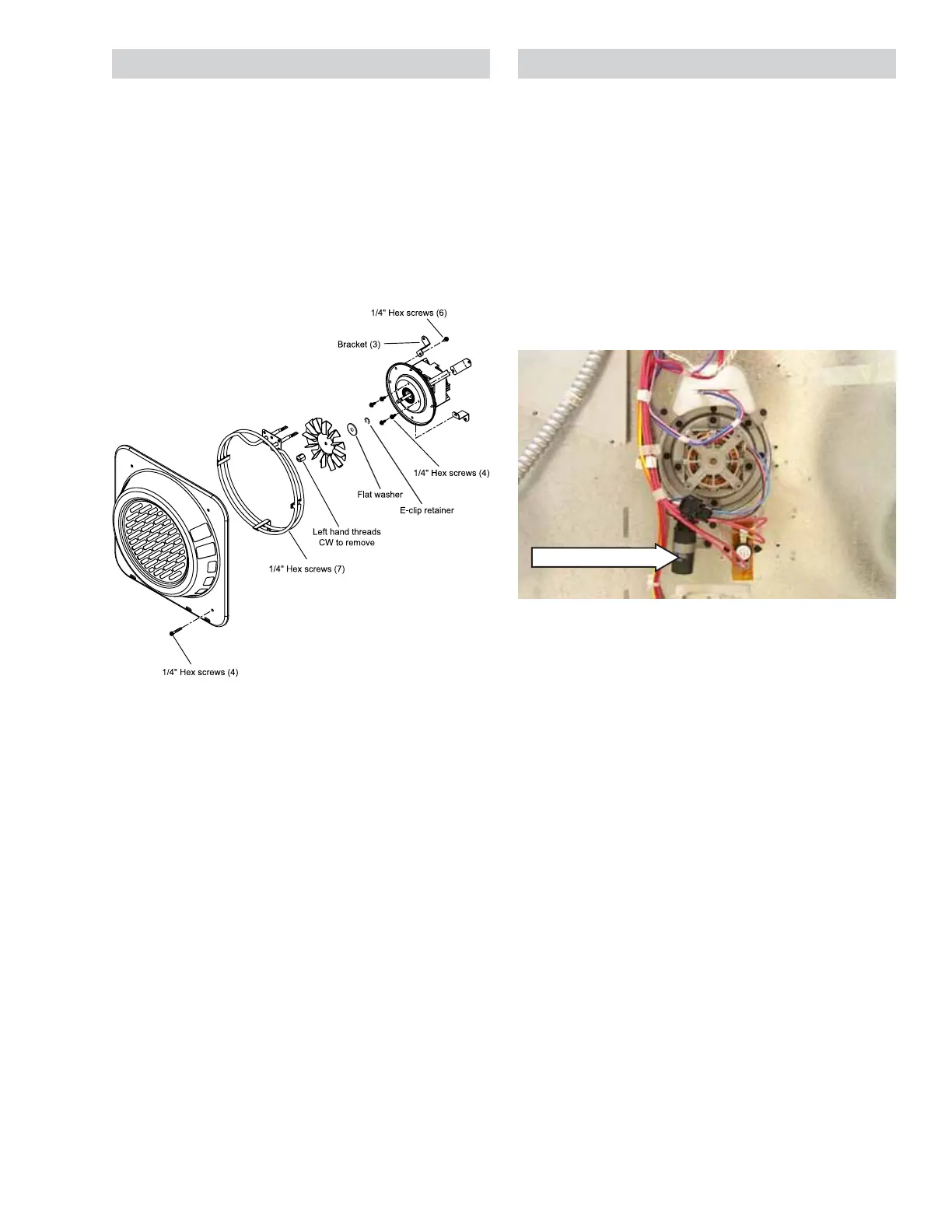

Convection Fan Assembly
Trivection
TM
Convection Fan Assembly
The convection fan assembly consists of the fan
guard, element, fan blade, and motor.
Refer to the schematic in the back of this manual
for circuitry for your specific model.
• To remove the convection fan motor:
a. Remove the four
1
/4-in. hex head screws
on the inside of the oven cavity.
b. On the back on the oven, remove the 3
outer
1
/4-in. hex head screws from the 3
brackets that hold the convection motor in
place.
Note: The convection fan assembly in the lower
oven of the double oven mounts the same as
previous convection fan assemblies.
• The element cover is held in place by four
1
/4-in. hex head screws.
• The convection fan blade nut has left-hand
threads. Turn nut clockwise to remove.
To Next Page
