GE JS998 Series User Manual

– 31 –

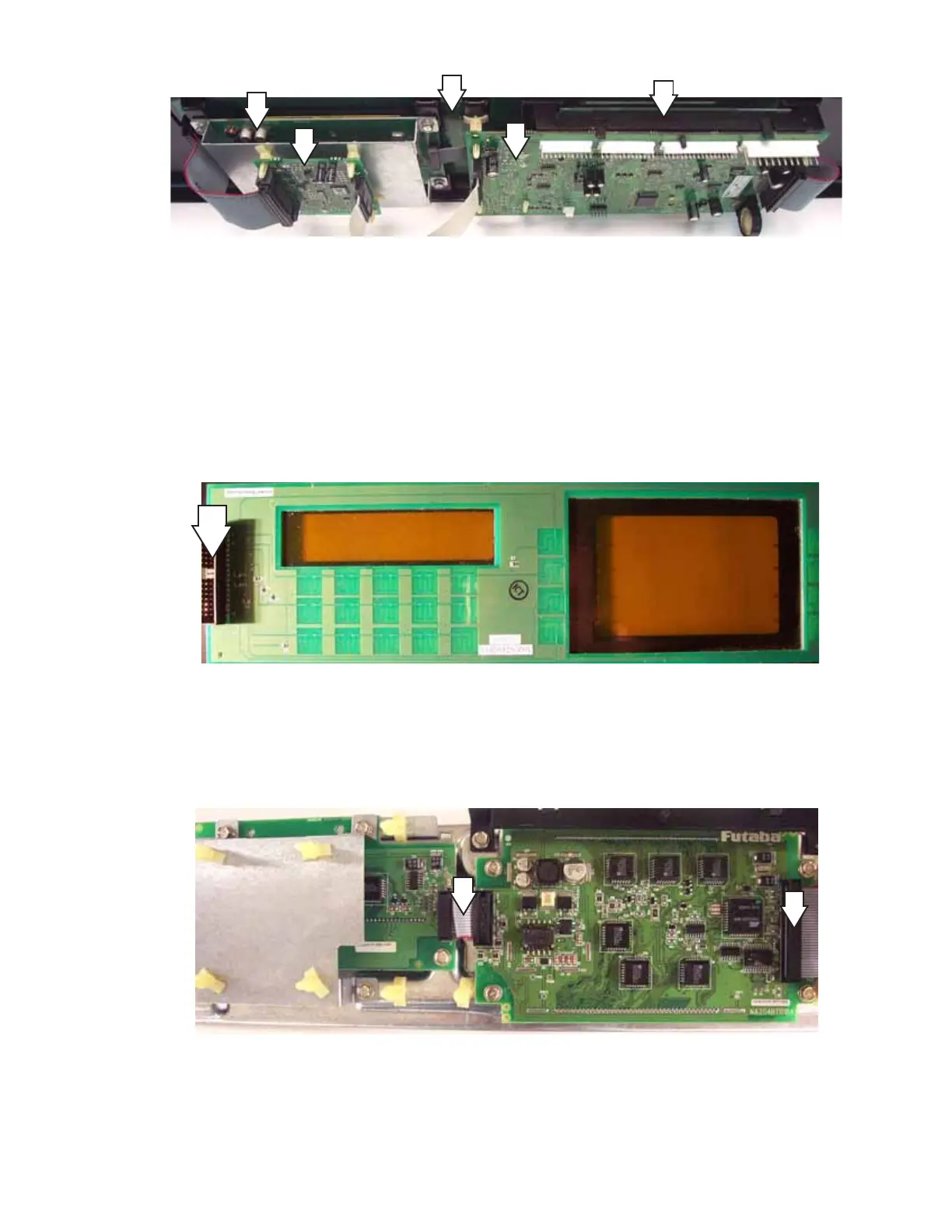

Text and Time/Temperature Display Boards
Control Panel and Board Layout
4
2
1 - Time/Temperature Display Board
2 - Glass Touch Signal Board
3 - Glass Touch Board
4 - Main Logic Board
5 - Text Display Board
3
Glass Touch Board
J1
J1 - Output and input signals from/to Glass Touch Signal Board J1
5
1
1 - DC power and serial data from Text Display Board to Time/Temperature Display Board (hard
wired to Time/Temperature Display Board)
2 - DC power input and data Input from Main Logic Board J2 (hard wired to Text Display Board)
1
2
