4–26 LM10 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL

OVERCURRENT FAULT CONDITIONS CHAPTER 4: FUNCTIONALITY

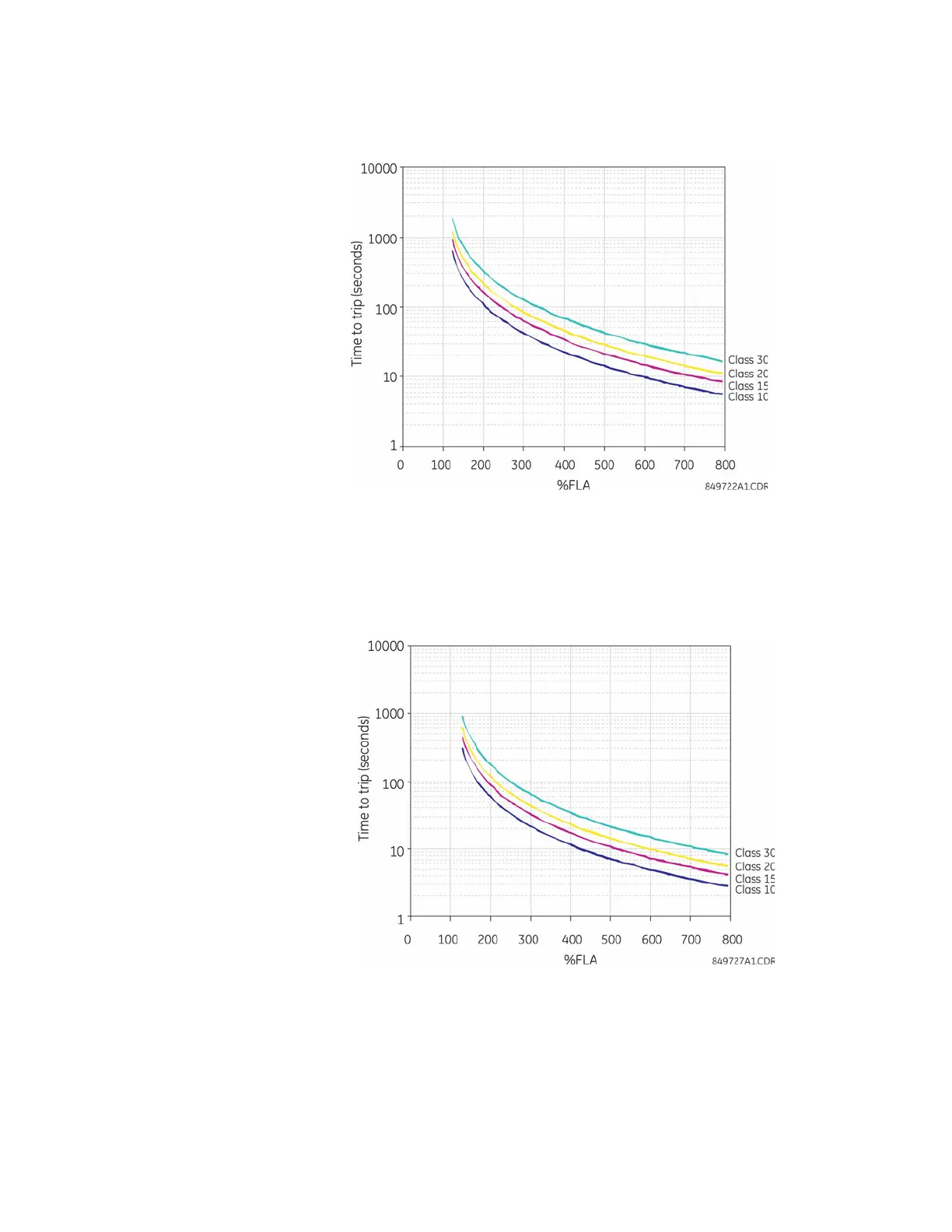

FIGURE 4–1: Cold Motor Trip Curves

FIGURE 4–2: Hot Motor Trip Curves
