System Setup
3-24 LOGIQ V3/V5/V5 Expert – Basic Service Manual
5726264-100 English Rev.8
3-6-2-2 Multi-language Keyboard Film installation(continued)

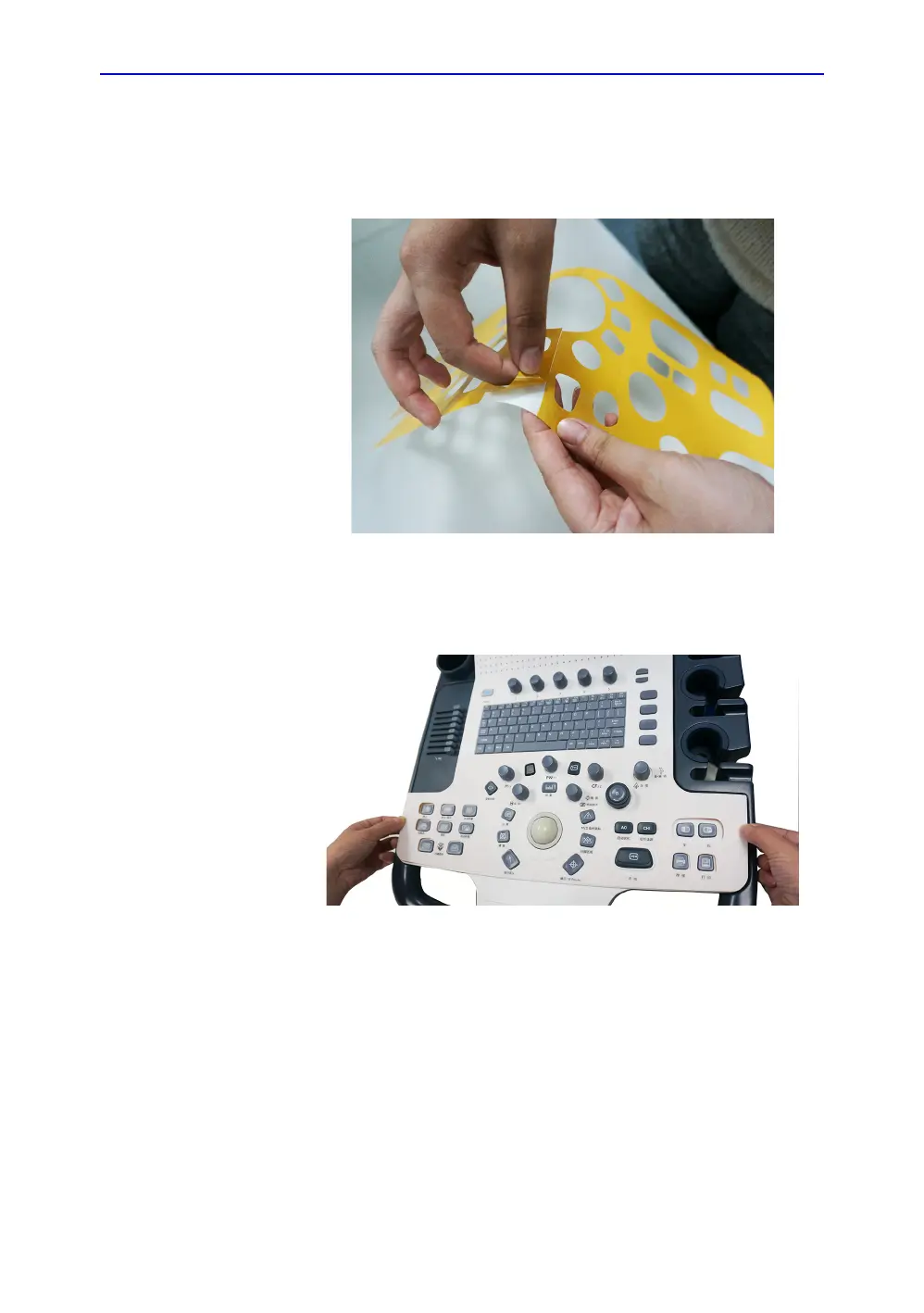

2. The paster is divided into four parts, peel off two parts of the
paster in the middle of the keyboard film.
Figure 3-9. Peel Off the Paster
3. Make sure the keyboard is clean. Align the keyboard film on
the keyboard and attach it.
Figure 3-10. Attach The Film
