Screen Capture
LOGIQ V3/V5/V5 Expert – Basic Service Manual 7-9
5726264-100 English Rev.8
7-3-2 Capturing a Screen with Service Dongle
The following is a generic process to capture the whole screen
from the scanner:
1. Insert the Service Dongle in the system’s USB port.
2. Press NL/SL key on the control panel, the whole screen is
captured.
3. Press Ctrl+Alt+Delete, the Windows Security dialog is
displayed. Then select Task Manager.

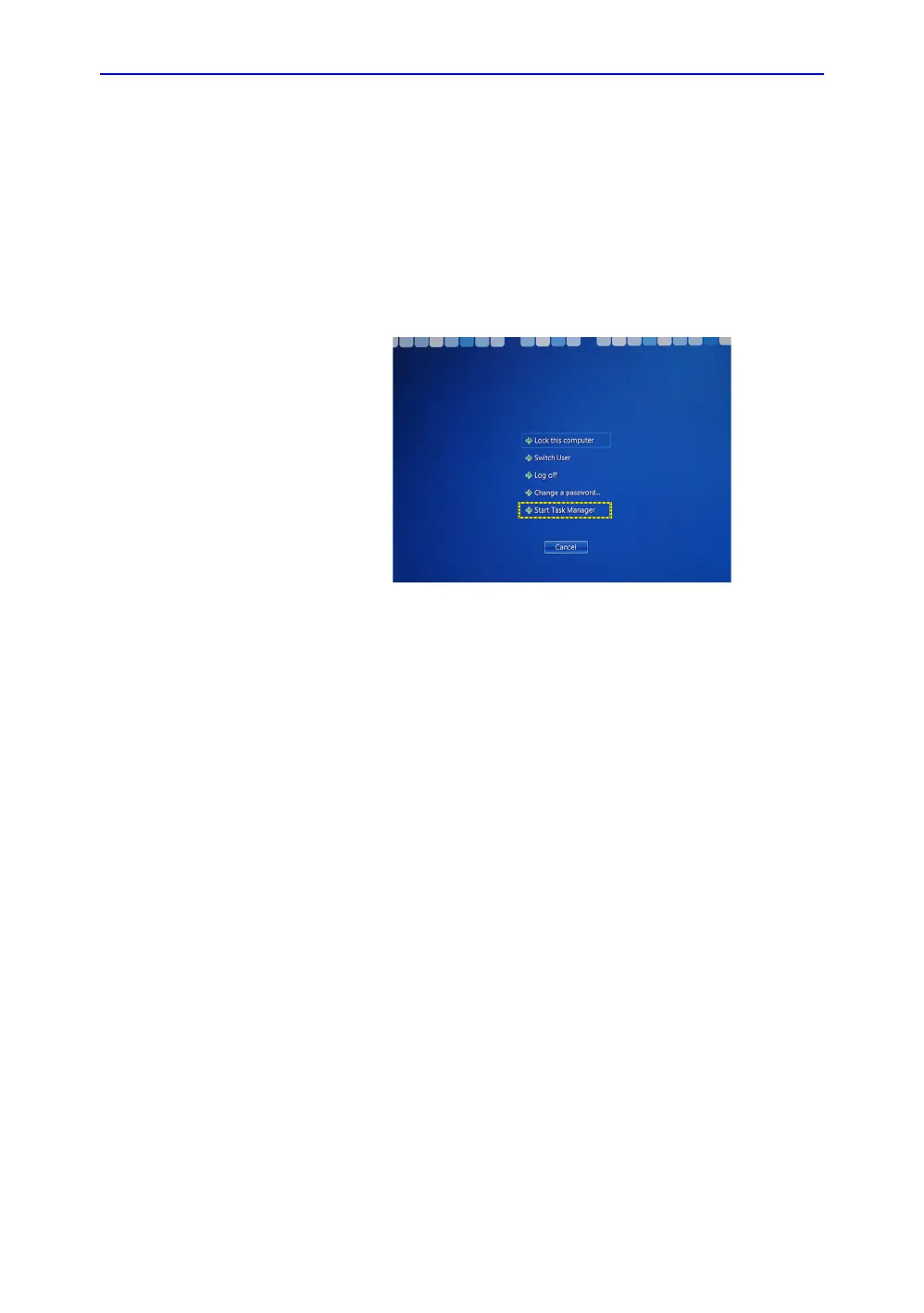

Figure 7-5. Windows Security
NOTE: It is also available to Exit to Windows and save the image on
the system or removal media.
